Cabin Air Filter / Purifier: Service and Repair

REPLACEMENT

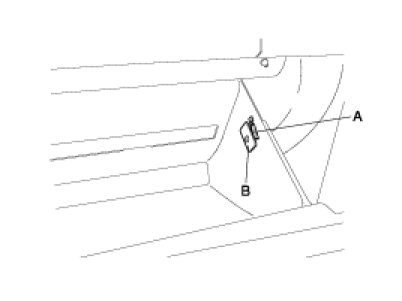

1. Open the glove box. Lower the glove box down completely by removing the tension code(A) and the glove box stopper to the glove box(B).




2. Remove the filter cover with pushing the knob.

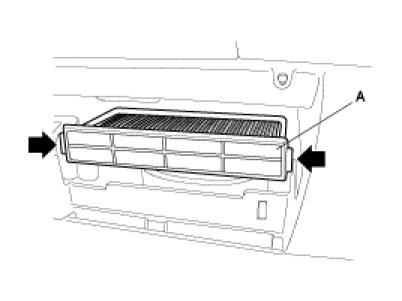

3. Replace the air filter(A), install it after making sure of the direction of air filter.





CAUTION:
In case of driving in an air-polluted area or rugged terrain, check and replace the air filter as frequently as possible.

Replacement period : 15,000 km (9320 mile)
