Front Wheel Alignment

WHEEL ALIGNMENT

FRONT WHEEL ALIGNMENT
When using a commercially-available computerized four wheel alignment equipment (caster, camber, toe) to inspect the front wheel alignment, always position the car on a level surface with the front wheels facing straight ahead. Prior to inspection, make sure that the front suspension and steering system are in normal operating condition and that the wheels and tires face straight ahead and the tires are inflated to the specified pressure.

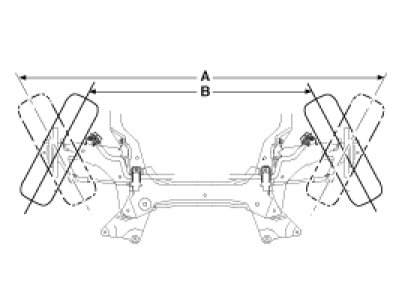

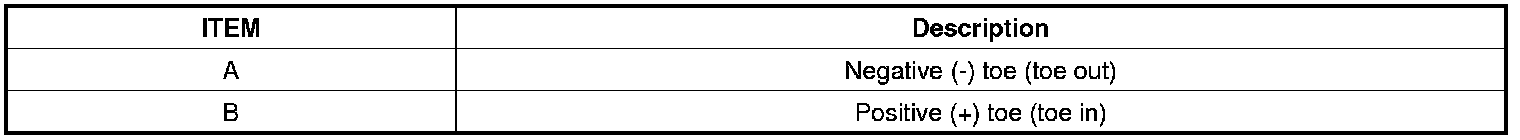

When the wheels are turned in toward the front of the vehicle, toe is positive (+) (toe in). When the wheels are turned out toward the front of the vehicle, toe is negative (-) (toe out). Toe is measured in degrees, from side to side, and totaled.

Toe-in (B-A or angle a+b) is adjusted by turning the tie rod turnbuckles. Toe-in on the left front wheel can be reduced by turning the tie rod toward the rear of the car. Toe-in change is adjusted by turning the tie rods forth right and left wheels simultaneously at the same amount as follows.

Standard value
Toe-in (B-A) mm (in.) : 0±2 mm (0±0.08 in.)


NOTE:
- Toe-in adjustment should be made by turning the right and left tie rods at the same amount.
- When adjusting toe-in, loosen the outer bellows clip to prevent twisting the bellows.
- After the adjustment, tighten the tie rod end lock nuts firmly and reinstall the bellows clip.
- Adjust each toe-in to be the range of ±1mm.

Tie rod end lock nuts tightening torque
50 - 60 Nm (500 - 600 kgf-cm, 37 - 43 lbf-ft)

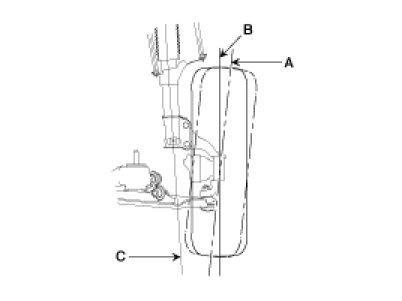

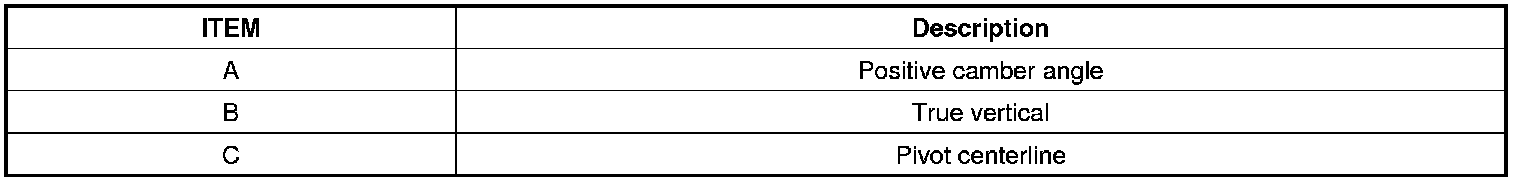

When the wheel tilts out at the top, then the camber is positive (+).
When the wheel tilts in at the top, then the camber is negative (-).
The steering knuckle which is installed with the strut assembly is pre-set to the specified camber at the factory and doesn't need to be adjusted.

Camber : 0°±30'


Caster is pre-set at the factory and doesn't need to be adjusted. If the caster is not within the standard value, replace the bent or damaged parts.

Caster : 2°49' ± 30'


NOTE:
1. The worn loose or damaged parts of the front suspension assembly must be replaced prior to measuring front wheel alignment.
2. Measure the wheel alignment by using special tool (09529-21000).
3. Camber and caster are pre-set to the specified value at the factory and don't need to be adjusted.
4. If the camber and caster are not within specifications, replace bent or damaged parts.
5. The difference of left and right wheels about the camber and the caster must be within the range of 0° ± 30'.
