Turn Signal Lamp: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the cover in the trunk room after removing 2 screws.

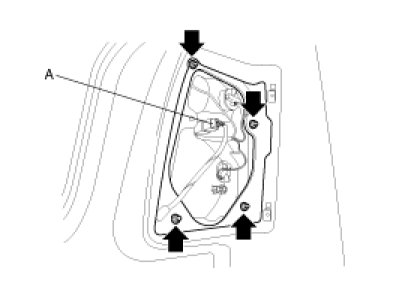

3. Remove the 4nuts holding the rear combination lamp then disconnect the 6P connector (A).




4. Remove the rear combination lamp and replace the bulbs; stop & tail lamp, turn signal lamp, back up lamp.
5. Installation is the reverse of removal.
