Exhaust Pipe: Service and Repair

REMOVAL

1. Remove the front muffle (A).

Tightening torque
39.2 - 58.8 N.m(4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

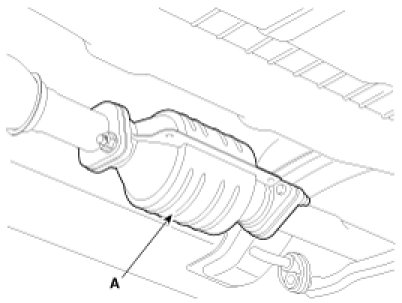

2. Remove the catalytic converter(A).

Tightening torque
39.2 - 58.8 N.m(4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)





3. Remove the center muffle(A).

Tightening torque
39.2 - 58.8 N.m(4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

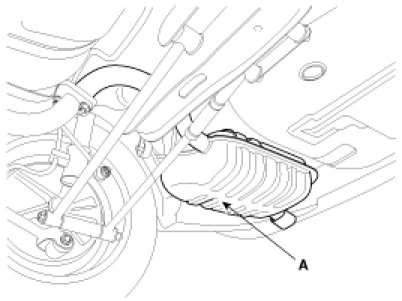

4. Remove the main muffle(A).

Tightening torque
39.2 - 58.8 N.m(4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
