Removal and Replacement

REMOVAL

CAUTION:
- Use fender covers to avoid damaging painted surfaces.
- To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

NOTE:
- Mark all wiring and hoses to avoid mis-connection.
- Inspection the timing belt before removing the cylinder head.
- Turn the crankshaft pulley so that the No. 1 piston is at top dead center.

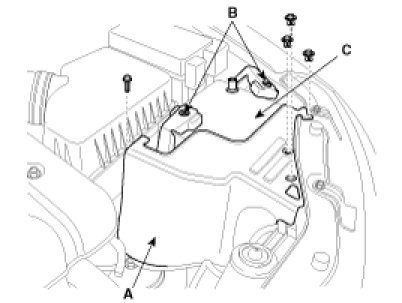

1. Remove the heat shield (A) first, and remove the battery terminal (B) and the battery (C).




2. Remove the engine cover(A).




3. Remove the radiator cap to speed draining.
4. Remove the under cover.
5. Loosen the radiator drain plug and drain engine coolant.

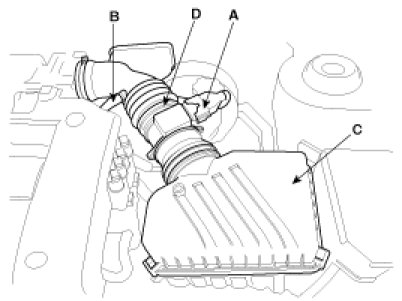

6. Remove the intake air hose and air cleaner assembly.
(1) Disconnect the MAF connector (A).
(2) Disconnect the breather hose (B) from air cleaner hose (D).
(3) Remove the intake air hose and air cleaner (C).

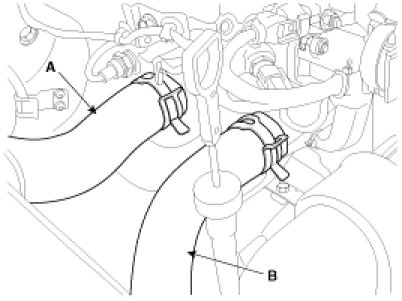

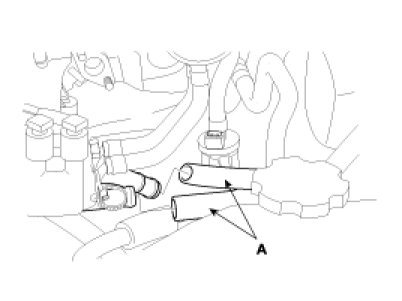

7. Remove the upper radiator hose (A) and lower radiator hose (B).




8. Remove the ATF(Automatic Transaxle Fluid) oil cooler hose (A).

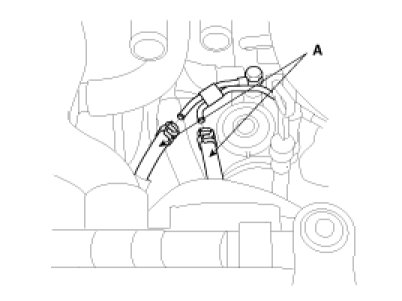

9. Remove the heater hoses (A).

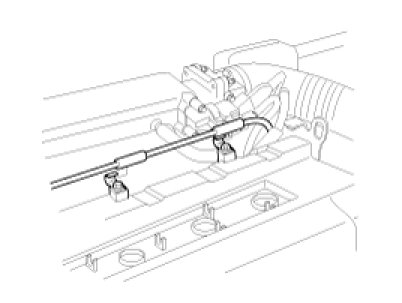

10. Remove the accelerator cable(A).




11. Remove the engine wire harness connectors and wire harness clamps from the cylinder head and the manifold.

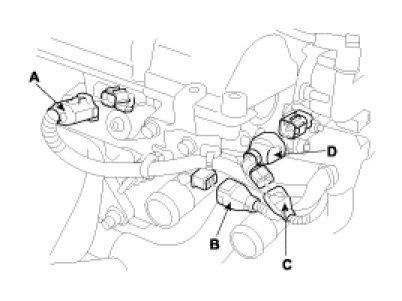

(1) Disconnect the OCV(Oil Control Valve) connector (A).
(2) Disconnect the oil temperature sensor connector (B).
(3) Disconnect the ECT(Electronic Coolant Temperature) sensor connector (C).
(4) Disconnect the ignition coil connector (D).

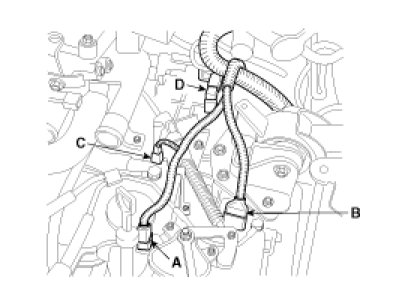

(5) Disconnect the TPS(Throttle Position sensor) connector (A).
(6) Disconnect the ISA(Idle Speed Actuator) connector (B).




(7) Disconnect the CMP(Camshaft Position sensor) connector (A).
(8) Disconnect the fuel injector connector (B).
(9) Disconnect the knock sensor connector (C) and the ground cable (D).




(10) Disconnect the front heated oxygen sensor connector (A).
(11) Disconnect the CKP(Crankshaft angle position sensor) connector (B).
(12) Disconnect the oil pressure switch connector (C).

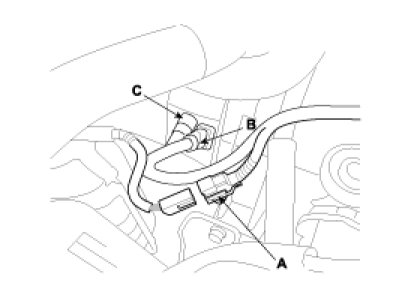

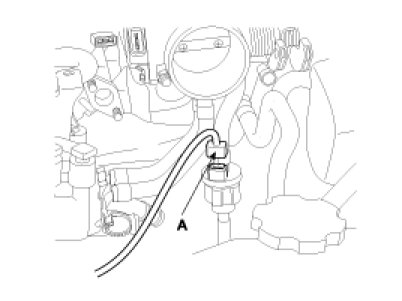

(13) Disconnect the PCSV(Purge Control Solenoid Valve) connector (A).




12. Remove the transaxle wire harness connectors and control cable from transaxle (A/T).
(1) Disconnect the transaxle range switch connector (A).
(2) Disconnect the solenoid valve connector (B).
(3) Disconnect the input shaft speed sensor connector (C).
(4) Disconnect the output shaft speed sensor connector (D).




(5) Disconnect the vehicle speed sensor connector (A).

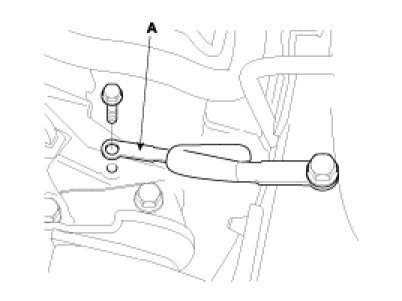

(6) Remove the transaxle ground cable (A).

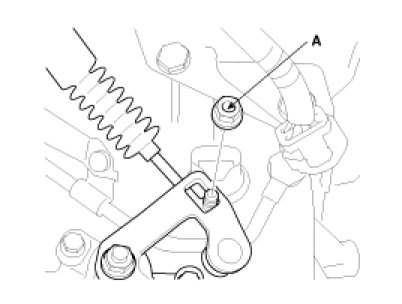

(7) Remove the control cable nut (A) from transaxle range switch.

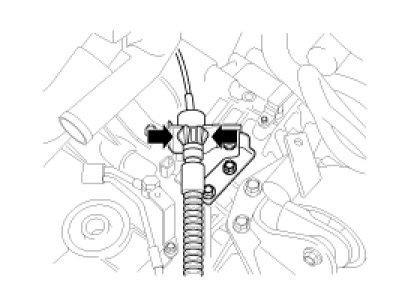

(8) Remove the control cable.

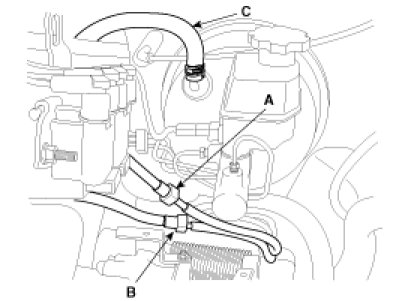

13. Disconnect the fuel inlet hose (A) of the delivery pipe side.
14. Disconnect the hose (B) of the PCSV(Purge Control Solenoid Valve) side.
15. Remove the brake booster vacuum hose (C).




16. Remove the front wheel (RH, LH).
17. Remove the power steering pump and use a wire to secure the pump to the vehicle so that it is out of the way.
18. Remove the air conditioner compressor and fix the compressor to vehicle with a wire. .
19. Install the engine jack to the engine and transaxle assembly.
20. Remove the lower arm ball joint mounting bolts.
21. Disconnect the tie-rod from the knuckle.
22. Disconnect the stabilizer bar link from the strut.

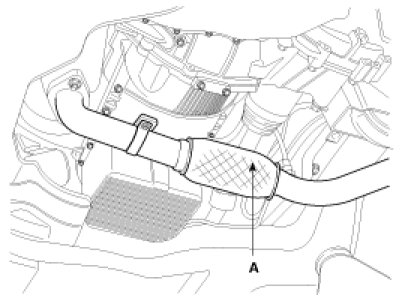

23. Remove the front muffler (A).

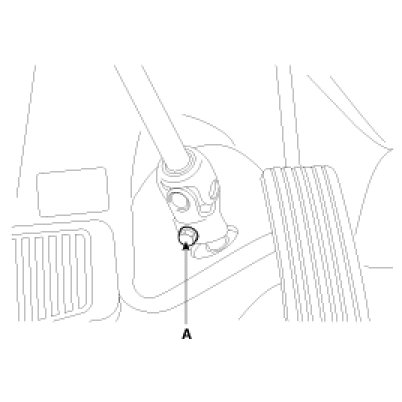

24. Remove the steering u-joint mounting bolt (A).

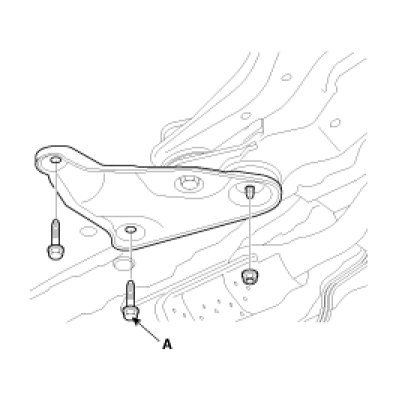

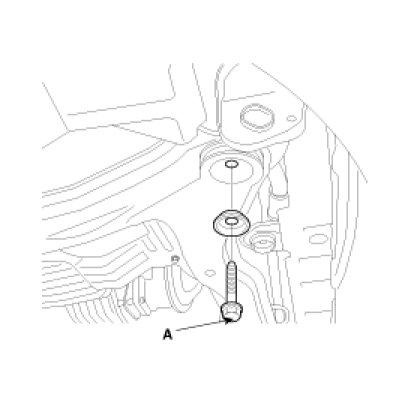

25. Remove the sub frame bolts (A).










INSTALLATION

Perform the following :
- Adjust shift cable.
- Adjust throttle cable.
- Refill engine with engine oil.
- Refill transaxle with fluid.
- Refill radiator with engine coolant.
- Bleed air from the cooling system with the heater valve open.
- Clean battery posts and cable terminals with sandpaper assemble them, then apply grease to prevent corrosion.
- Inspect for fuel leakage.
After assembling the fuel line, turn on the ignition switch (do not operate the starter) so that the fuel pump runs for approximately two seconds and fuel line pressureizes.
Repeat this operation two or three times, then check for fuel leakage at any point in the fuel line.
