Radiator: Service and Repair

REMOVAL

RADIATOR
1. Drain the engine coolant.

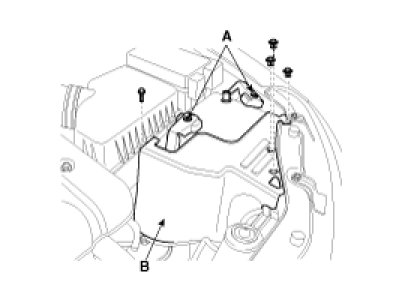

2. Remove the battery terminals (A) and heat shield (B).




3. Remove the battery and battery tray.
4. Remove the upper radiator hose (A) and lower radiator hose (B).

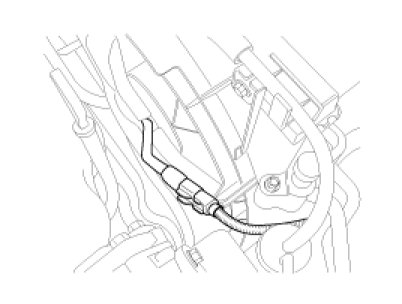

5. Remove the ATF(Automatic Transaxle Fluid) cooler hose (A).

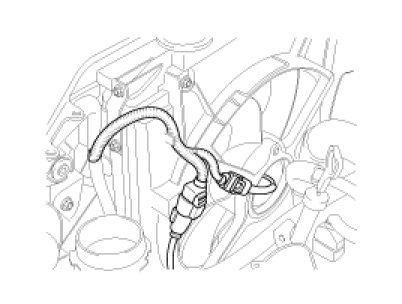

6. Disconnect the fan motor connector.








7. Remove the radiator.

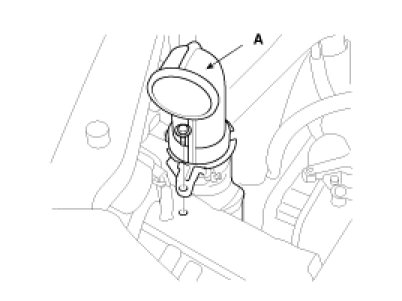

(1) Remove the air duct (A) to allow for radiator removal.




(2) Remove the reservoir tank (A) to allow clearance when removing the radiator.




(3) Remove the radiator mounting bolts and remove the radiator from condenser.

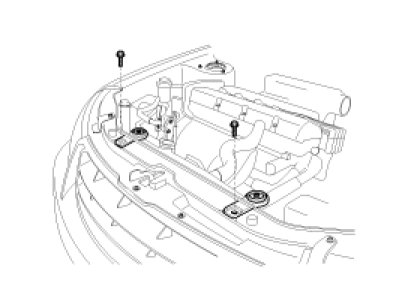

8. Remove the radiator upper bracket, then pull up the radiator.

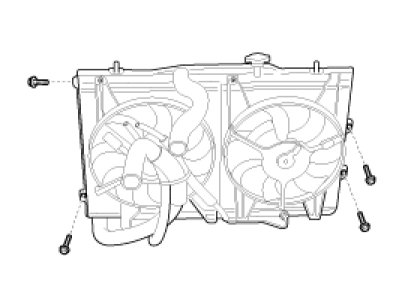

9. Remove the cooling fan from the radiator.

INSTALLATION

RADIATOR
1. Install the cooling fan assembly to the radiator and then fix the assembly to the condenser in engine.
2. Install the radiator upper bracket.




3. Install the reservoir tank (A).




4. Install the air duct (A).




5. Connect the cooling fan motor connector.








6. Install the ATF(Automatic Transaxle Fluid) cooling hose (A).




7. Install the radiator upper (A) / lower hose (B).




8. Install the battery and battery tray.
9. Install the battery terminal and the heat shield.
10. Fill with engine coolant.

Quantity :
6.5 - 6.6L (6.87 - 6.97US qt, 5.72 - 5.81lmp qt)


11. Start engine and check for leaks.
