Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Main Harness
Main Harness

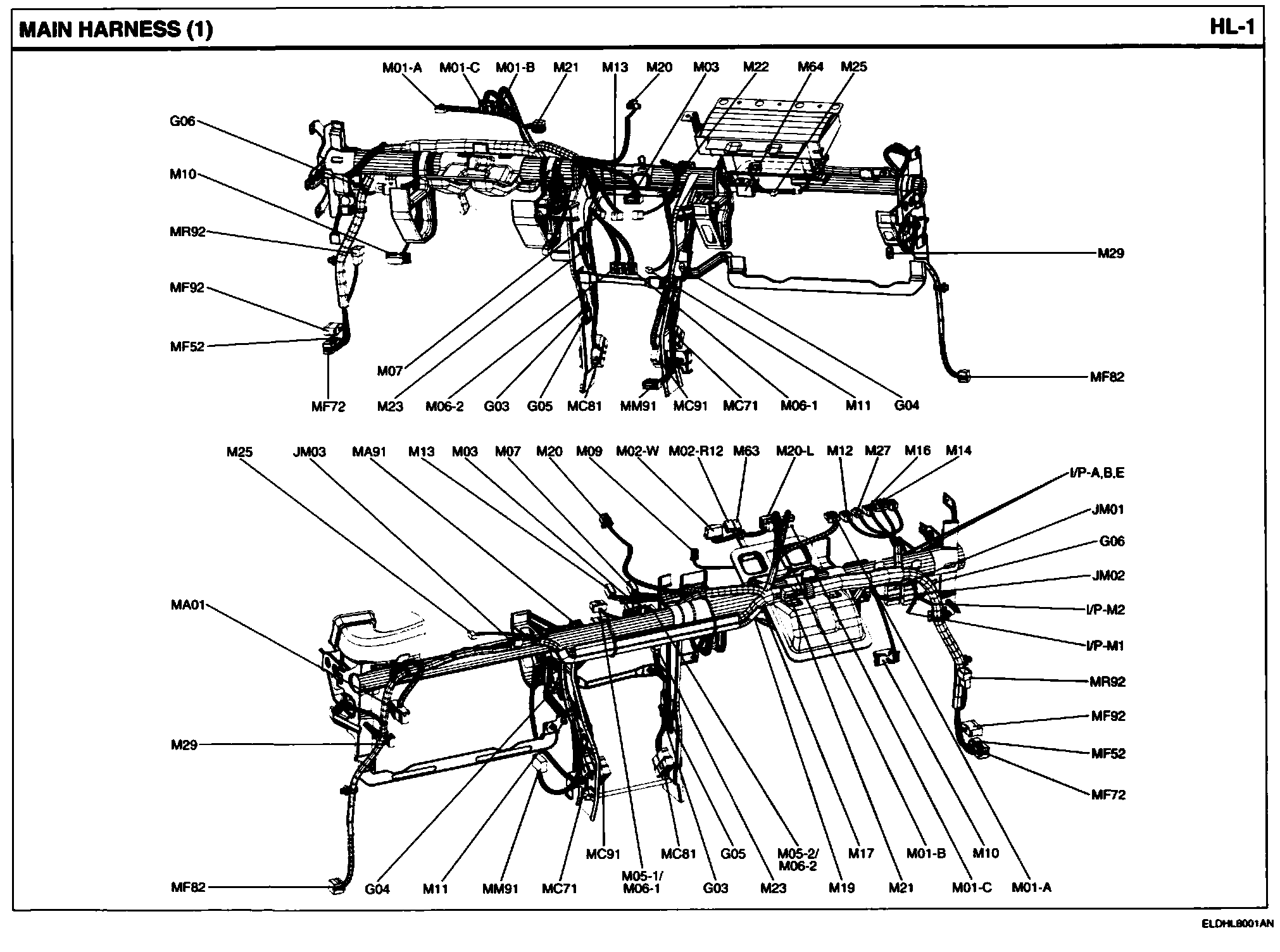

Main Harness (1):

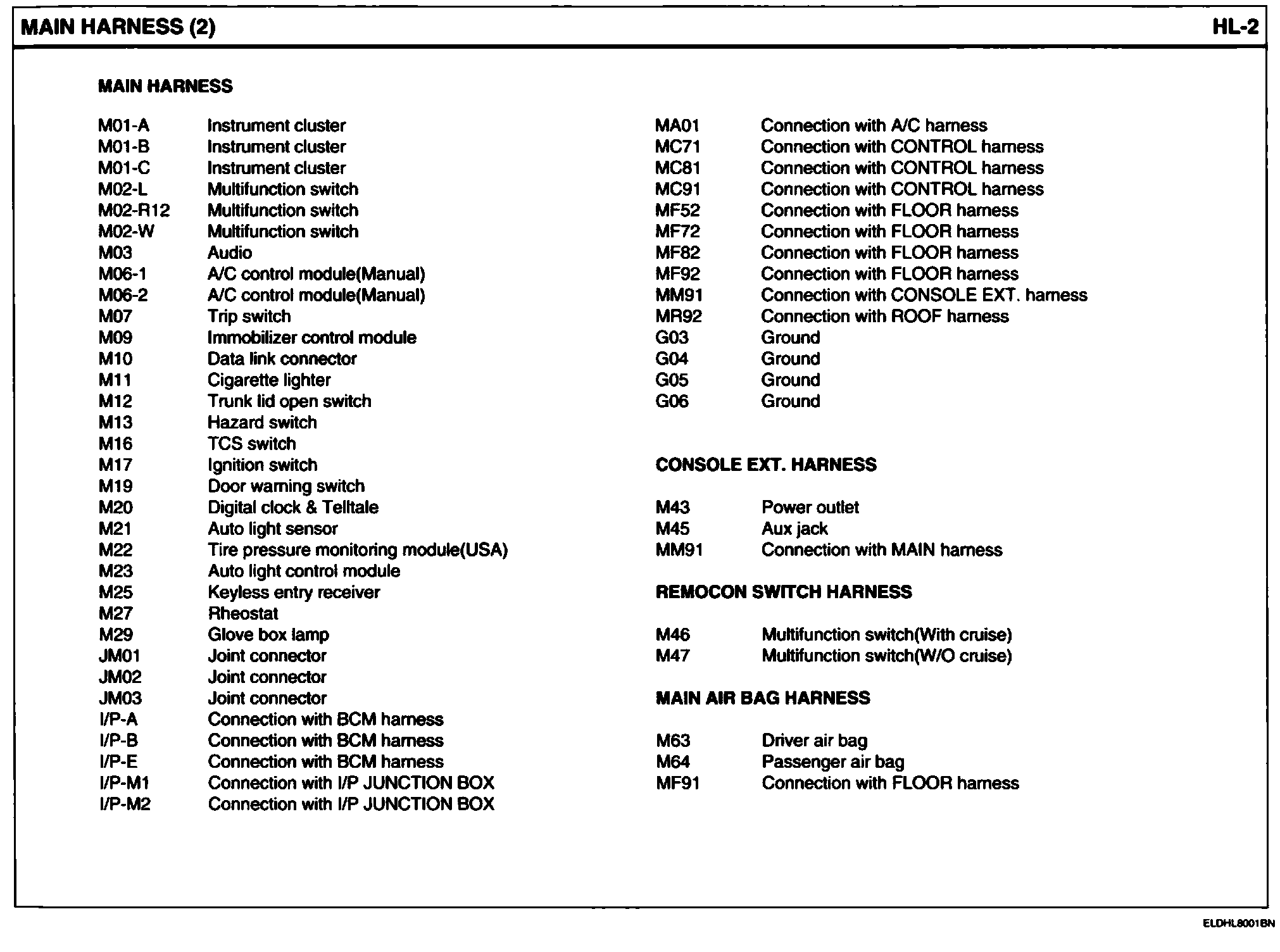

Main Harness (2):
