Parking Brake System: Testing and Inspection

Parking brake check and adjustment

INSPECTION

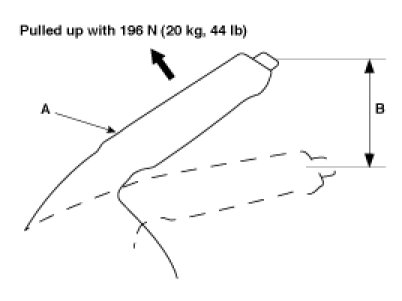

1. Pull the parking brake lever (A) with 196 N (20 kg, 44lbf) force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B).

Lever locked clicks:
Vehicle with rear disc brakes: 8 - 9
Vehicle with rear drum brakes: 8





2. Adjust the parking brake if the lever clicks are out of specification.
