Trunk / Liftgate Striker: Adjustments

ADJUSTMENT

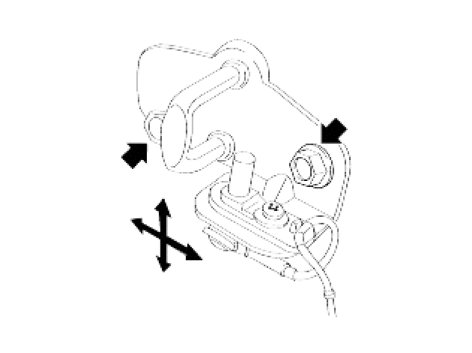

TRUNK LID STRIKER
1. Check that the trunk lid can be closed easily and properly. If there is a problem, loosen the striker mounting bolts and adjust the trunk lid by moving the striker vertically or horizontally.

Tightening torque :
17 - 22 Nm (1.7 - 2.2 kg-m, 12 - 16 lb-ft)





2. Adjust the rear offset of the door to the body by moving the trunk lid striker vertically.
