Keyless Entry And Burglar Alarm - Receiver
INSPECTION
TAILGATE LOCK ACTUATOR INSPECTION (5 DOORS)
1. Remove the tailgate trim panel.

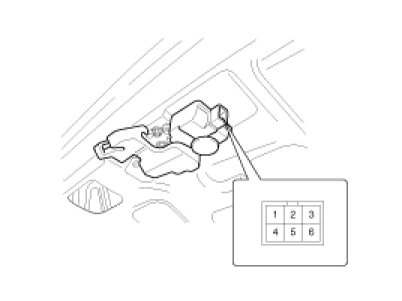

2. Disconnect the 6P connector from the actuator.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
TRUNK LID ACTUATOR INSPECTION (4 DOORS)
1. Remove the trunk lid trim panel
2. Disconnect the 6P connector from the actuator.
3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
