Hood Hinge: Adjustments

ADJUSTMENT

HOOD HINGE
1. Check that the hood can be closed easily and properly. If there is a problem, open the hood and tighten the hood hinge mounting bolts.

Tightening torque :
22 - 27 Nm (2.2 - 2.7 kg-m, 16 - 20 lb-ft)

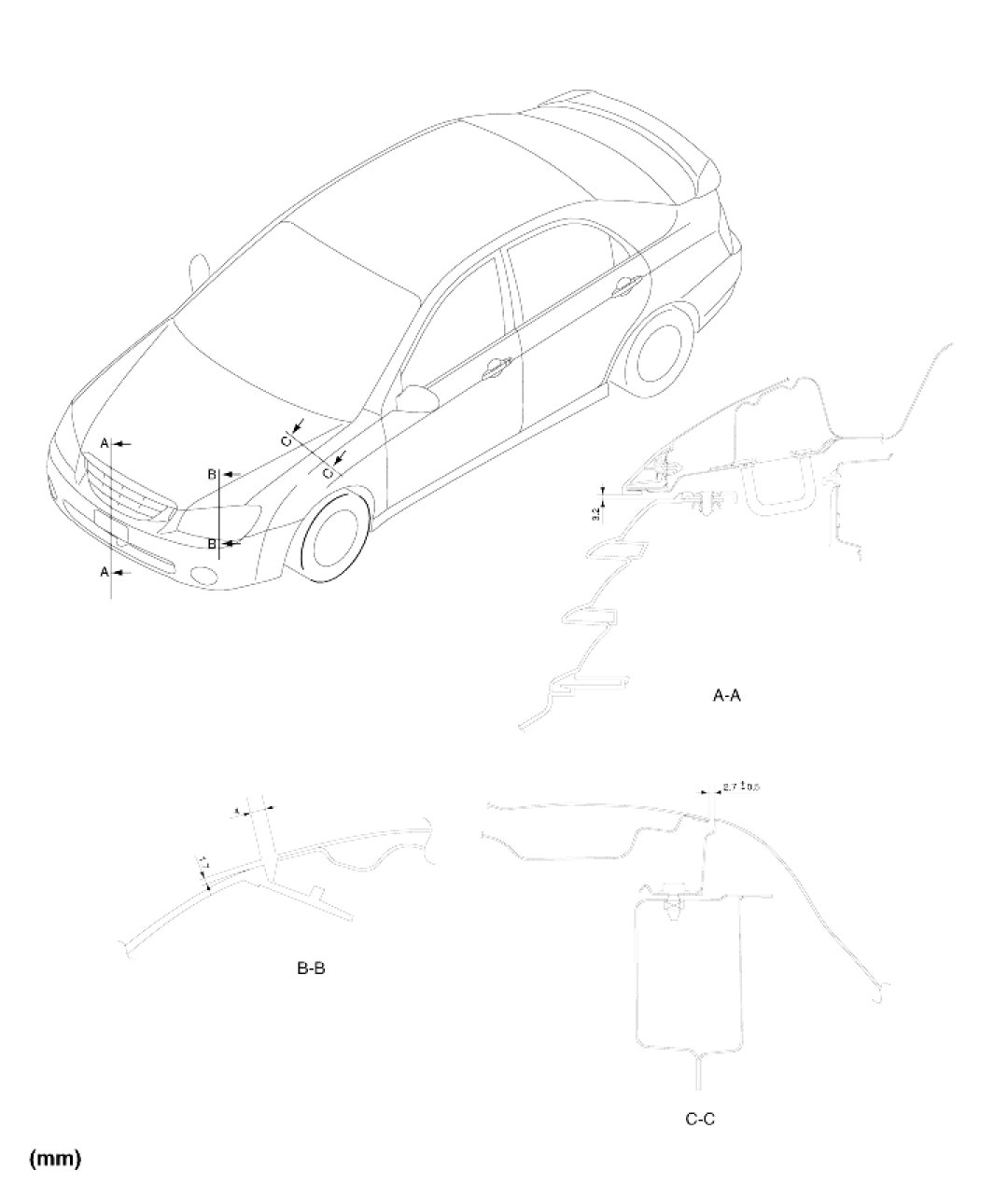

2. To adjust the hood-to-body offset, loosen the hood hinge mounting bolts and make the adjustment.
