Problems and Replacement Parts - I

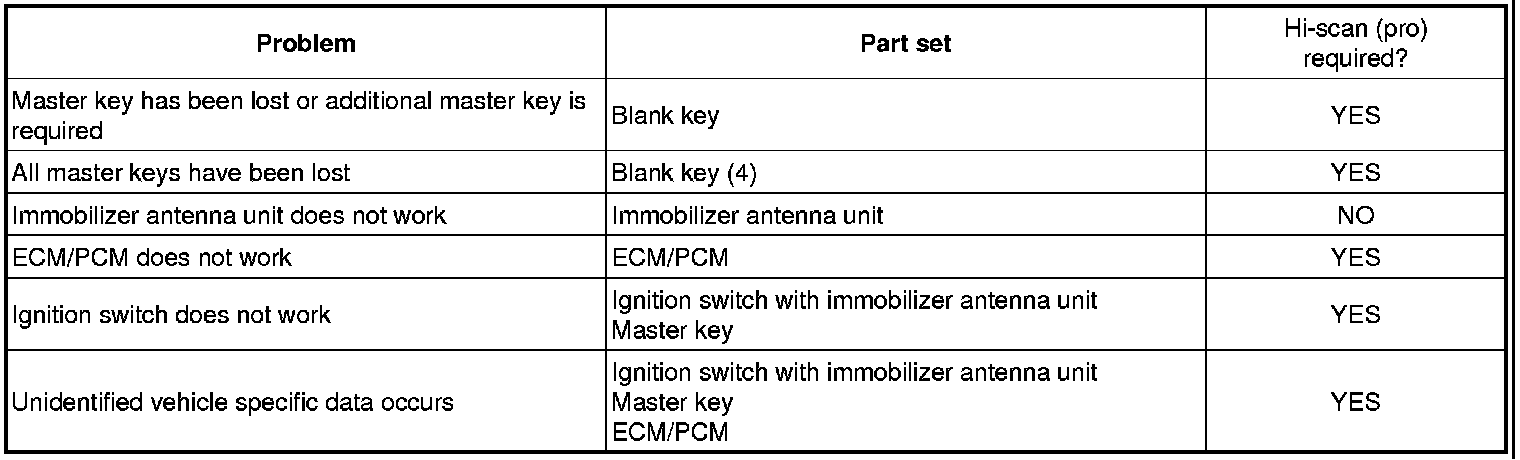

PROBLEMS AND REPLACEMENT PARTS:






REPLACEMENTS OF ECM
If the ECM fails or is defective, the unit must be replaced with a "virgin" or "neutral" ECM. All keys will have to be registered (taught) to the new ECM. Keys not taught to the new ECM WILL NOT work with the ECM. .

NOTE:
The The vehicle specific data will have to be left unchanged with regards to the unique programming for the transponder.

REPLACEMENT OF SMARTRA
In the case of a defective SMARTRA, no special procedure is required. Anew SMARTRA device simply replaces the existing device. Transponder-related data is not stored in this device.
