P0748

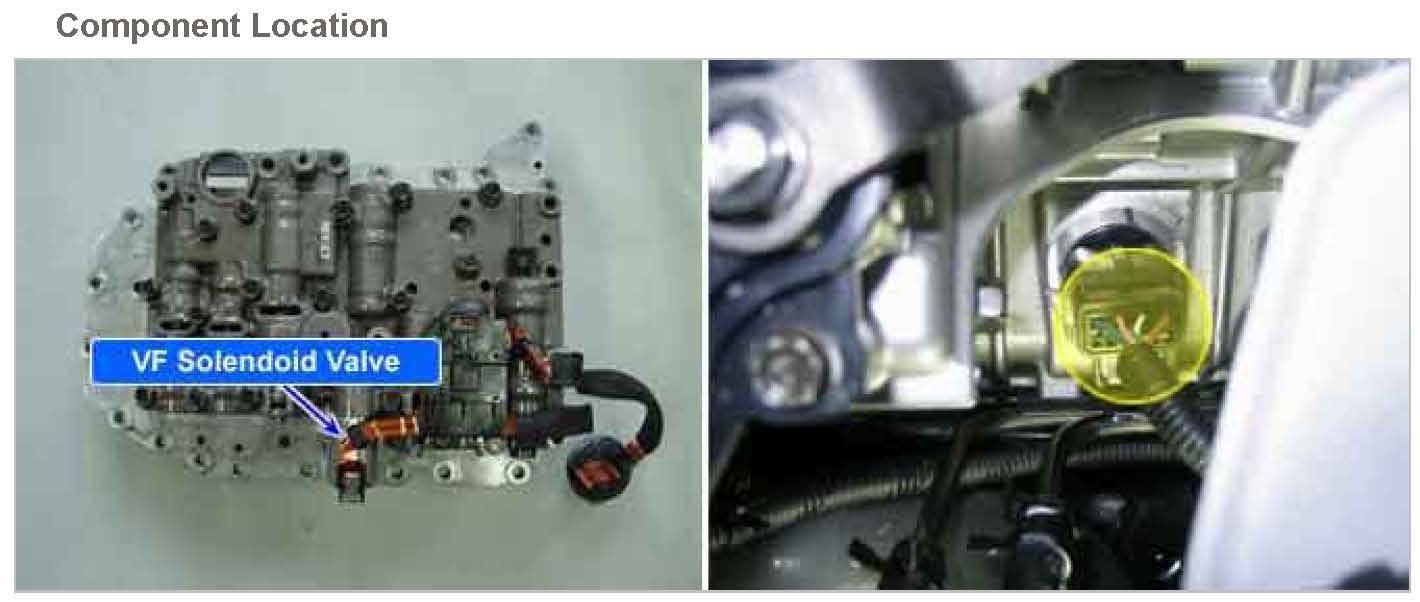

P0748Component Location:
General Description
Variable Forced Solenoid (Linear Solenoid) : With the duty control which uses higher frequency (600 Hz), instead of the existing PWM type which adapts low frequency (60 Hz) to control,spool valve can be controlled precisely. In PWM control,the amount of oil flow is determined by the duration of "ON"signal among continuously repeated ON/OFF signals. In VFS, the amount is decided by how widely spool valve open the passage of going through.
DTC Description
The TCM checks the VFS Control Signal by monitoring the feedback signal from the solenoid valve drive circuit. If an unexpected signal is monitored (for example, high voltage is detected when low voltage is expected, or low voltage is detected when high voltage is expected), the TCM judges that the Low and Reverse control solenoid circuit is malfunctioning and sets this code.

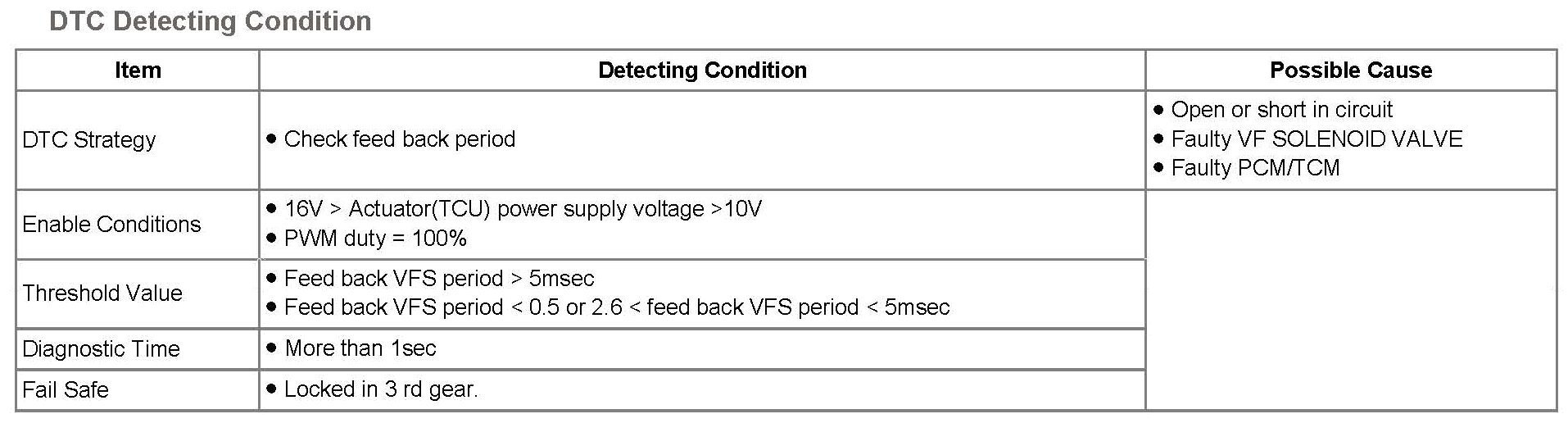

DTC Detecting Condition:
Specification
Solenoid Valve for Pressure Control
- Sensor type : Normal open 3-way
- Operating temperature : -30 °C - 130 °C
- Frequency :PCSV-A,B,C,D :50 Hz (at the ATF temp. -20 °C above)
VFS : 400-1000
* KM series : 35 Hz
- Internal resistance : 3.5 ± 0.2 ohms (20 °C)
- Surge voltage : 56 V

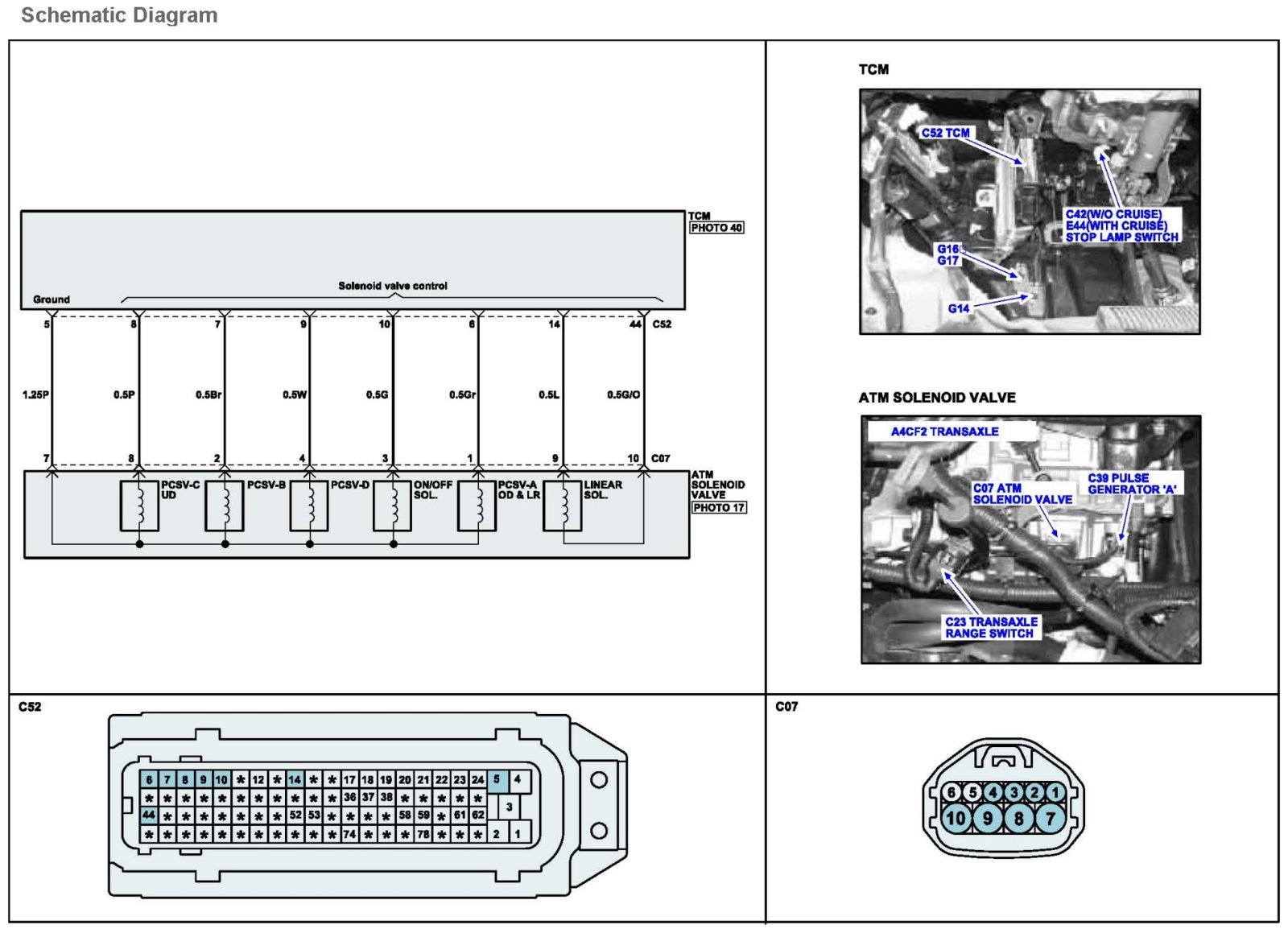

Schematic Diagram:

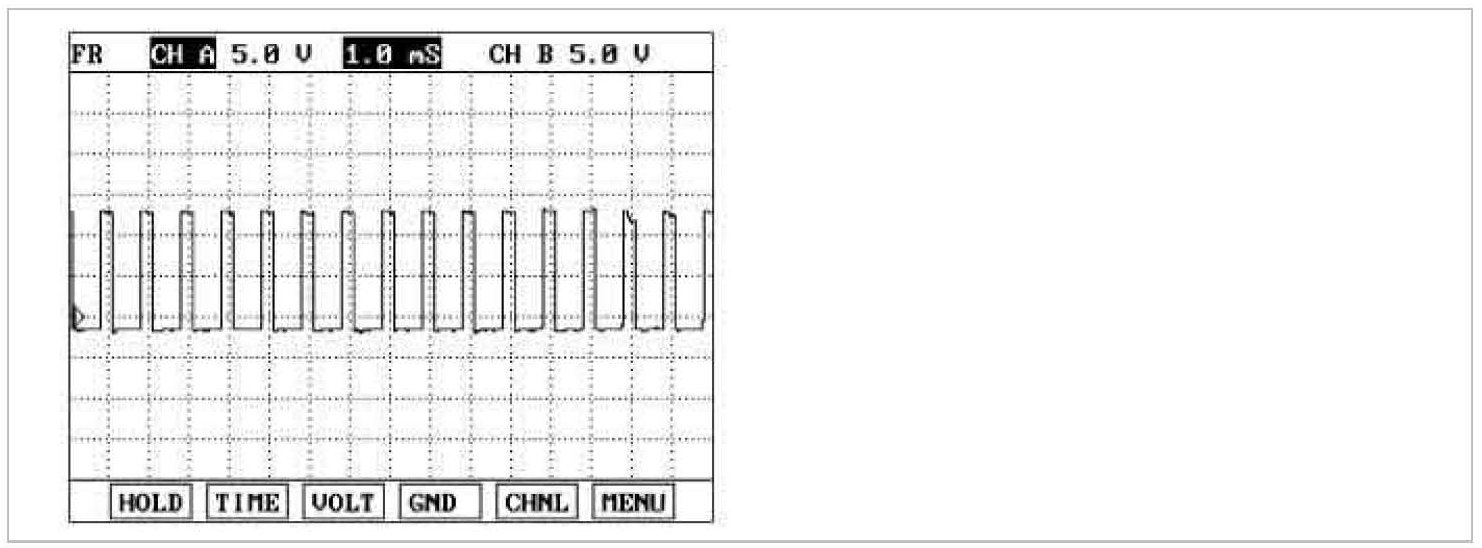

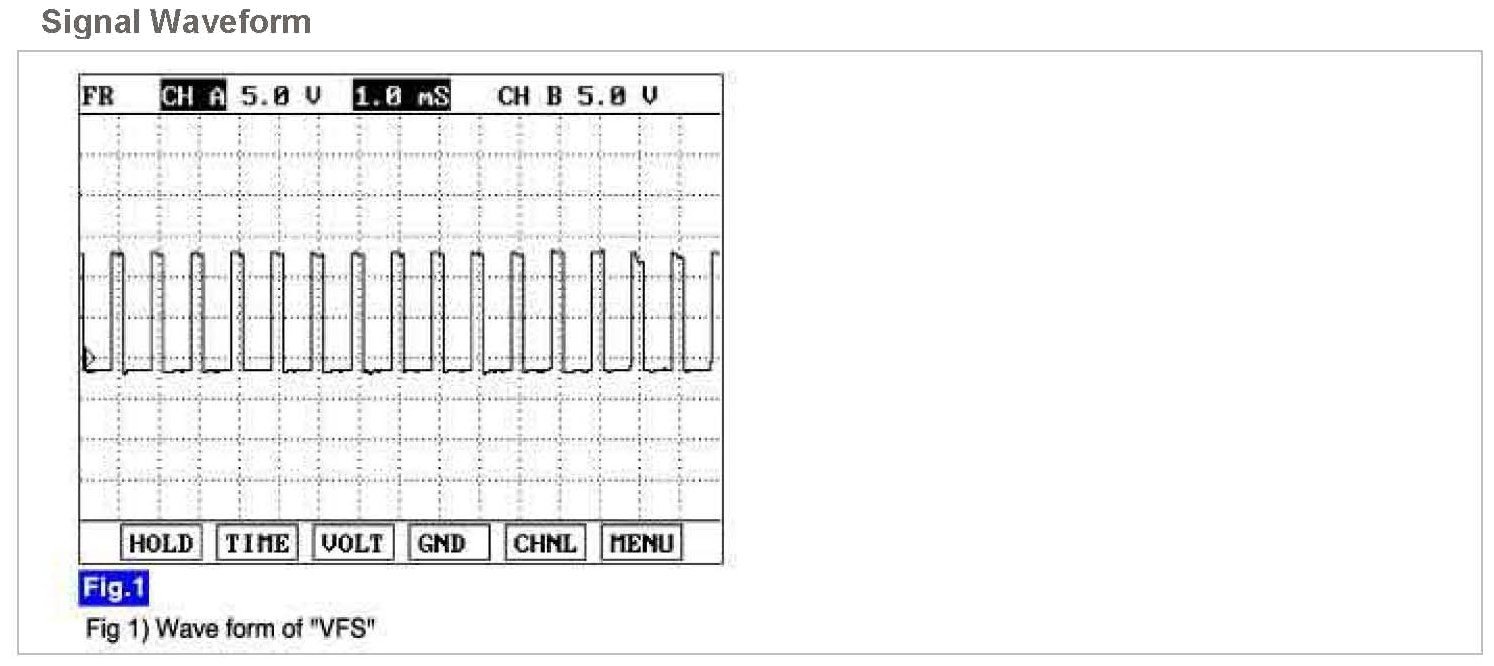

Signal Waveform:

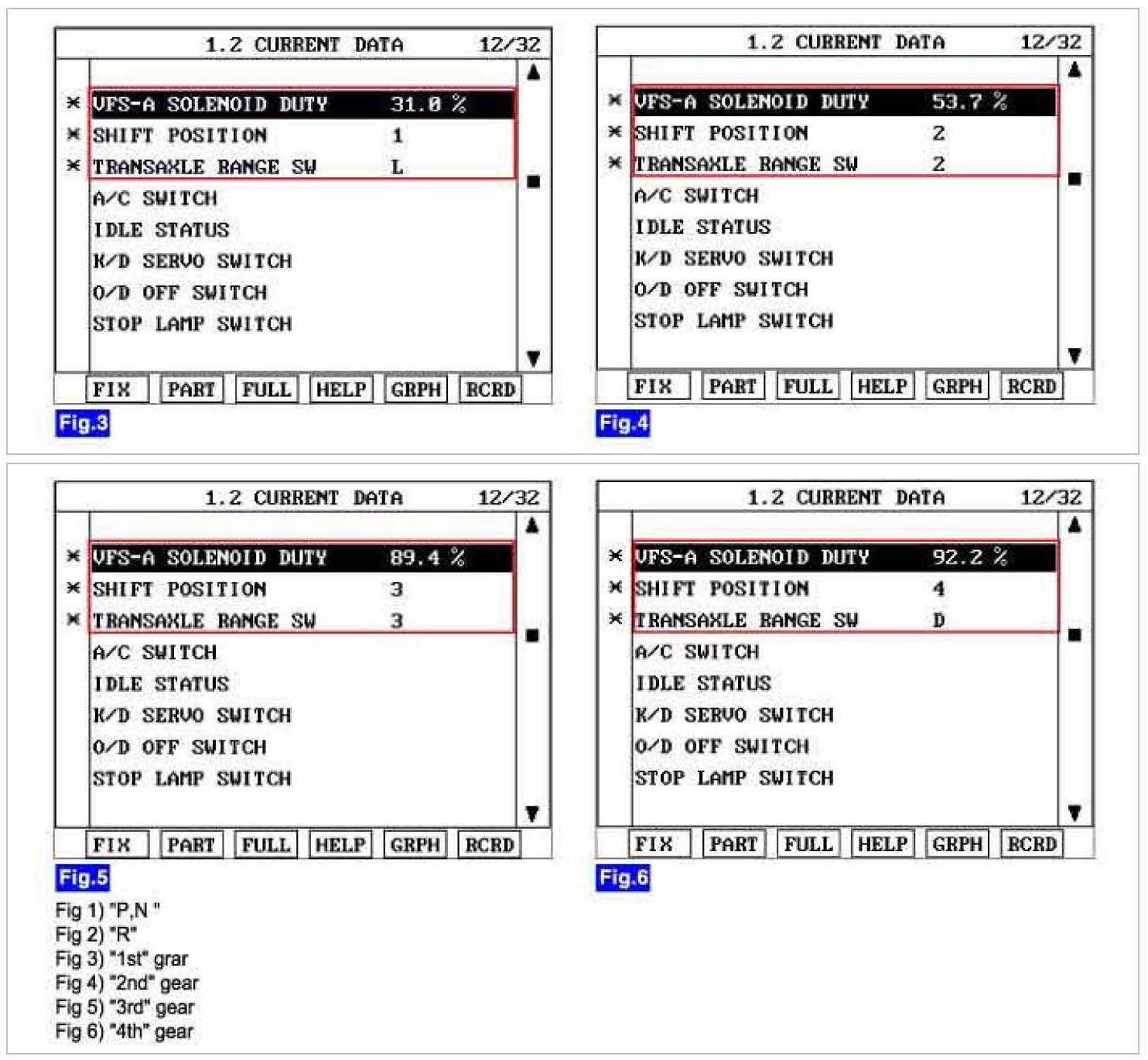

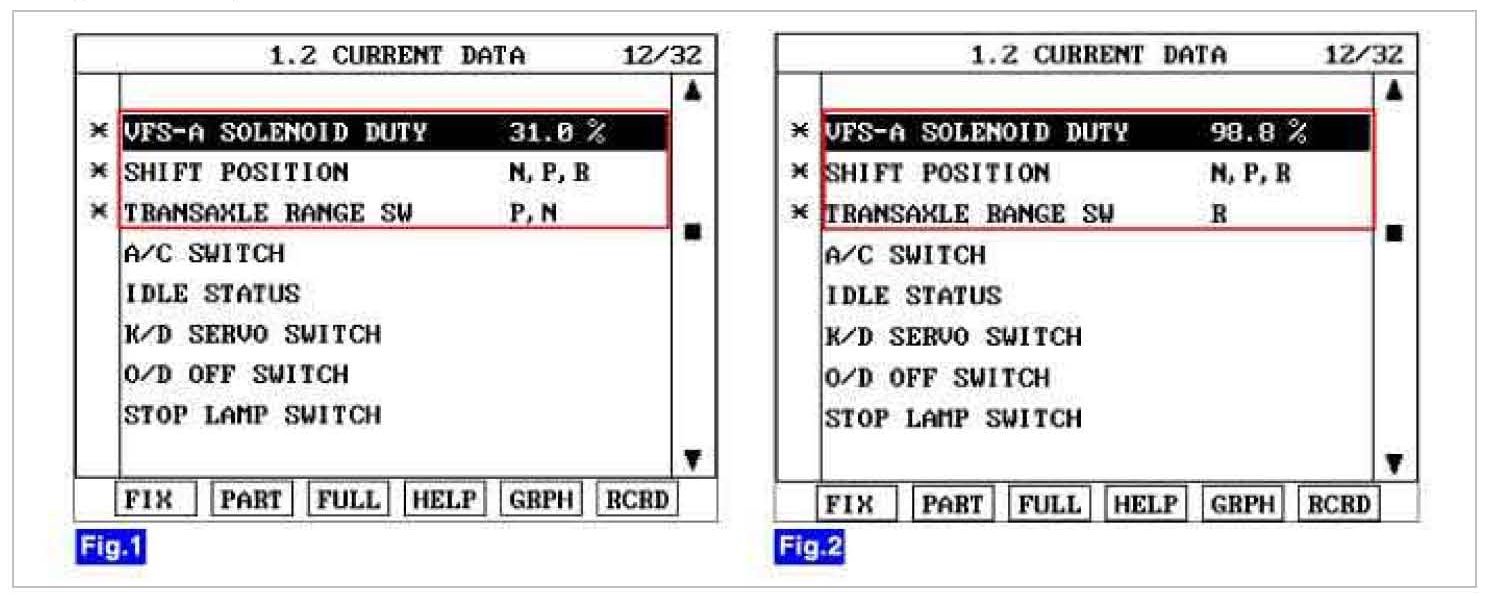

Monitor Scantool Data
1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "VF SOL. VALVE" parameter on the scantool
4. Shift gear at each position.
5. Does "VF SOL DUTY" follow the reference data?
YES
a. Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
a. Go to "W/Harness Inspection" procedure
Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
a. Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
a. Go to "Power Circuit Inspection" procedure
Power Supply Circuit Inspection
1. Connect "A/T SOLENOID VALVE" connector and install device for measuring wave form
2. Turn on the Engine and operate VF SOLENOID VALVE.

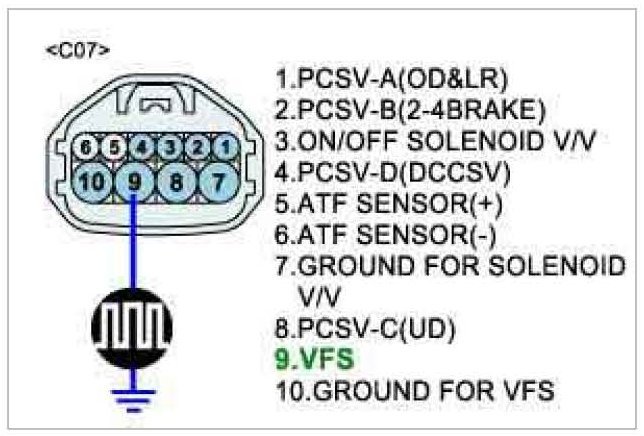

3. Measure wave form between terminal"P" of the sensor harness connector and chassis ground.
a. Wave form of VFSV
4. Is measured normally operating wave form?
YES
a. Go to "Signal Circuit Inspection" procedure
NO
a. Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure
Signal Circuit Inspection
Check Signal Circuit Open Inspection
1. Ignition "OFF"
2. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

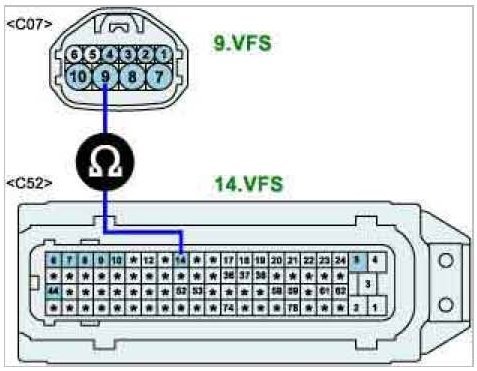

3. Measure resistance between terminal "9" of the ATM SOLENOID VALVE harness connector and terminal "14" of the PCM/TCM harness connector
Specification: approx. 0 ohm
4. Is resistance within specifications?
YES
a. Go to "Check signal circuit short Inspection" procedure
NO
a. Check for open in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure
Check Signal Circuit Short Inspection
5. Engine "OFF".
6. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

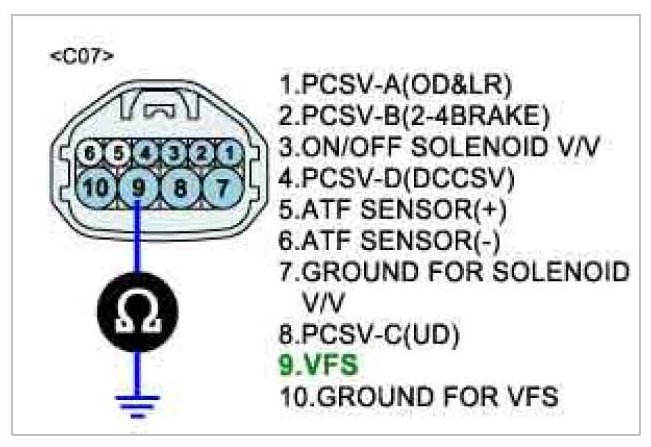

7. Measure resistance between terminal "P" of the ATM SOLENOID VALVE harness and chassis ground.
Specification: Infinite
8. Is resistance within specifications?
YES
a. Go to "Component Inspection" procedure
NO
a. Check for short to ground in harness. Repair as necessary and Go to "Verification of Vehicle Repair" procedure
Check signal circuit ground inspection
9. Ignition "OFF"".
10. Disconnect "A/T SOLENOID VALVE" connector and "PCM/TCM" connector

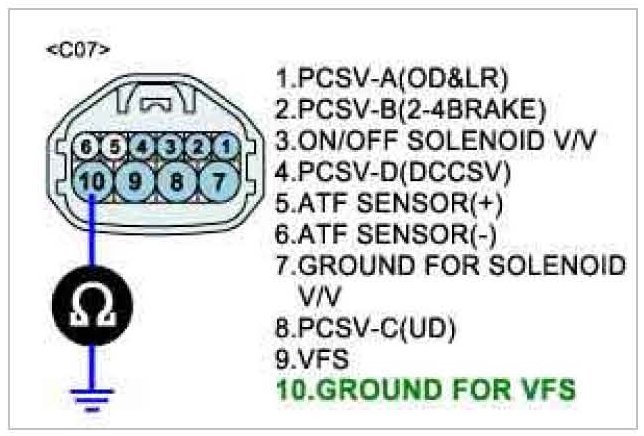

11. Measure resistance between terminal "10" of the ATM SOLENOID VALVE harness and chassis ground.
Specification: approx. 0 ohm
12. Is resistance within specifications?
YES
a. Go to "Component Inspection" procedure
NO
a. Check for short to ground in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure
Component Inspection
Check Solenoid Valve
1. Ignition "OFF"
2. Disconnect "A/T SOLENOID VALVE" connector

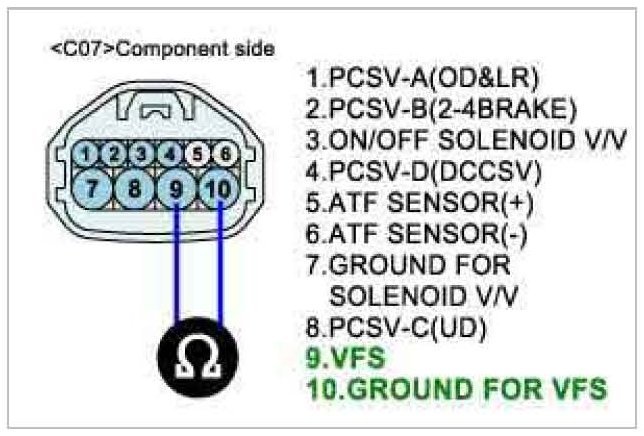

3. Measure resistance between terminal "9 and terminal "10" of the ATM SOLENOID VALVE harness connector
Specification: Approximately 3.5 ± 0.2 ohms (25 °C)
4. Is resistance within specifications?
YES
a. Go to "CHECK PCM/TCM" as below
NO
a. Replace "VF SOL VALVE" as necessary and go to "Verification Vehicle Repair" procedure
Check PCM/TCM
5. Connect scantool to data link connector (DLC)
6. Ignition "ON" & Engine "OFF".
7. Select A/T Solenoid valve Actuator test and Operate Actuator test.
8. Can you hear operating sound for "VF SOL VALVE" Actuator Testing Function?
YES
a. Go to "Verification of Vehicle Repair" procedure
NO
a. Replace PCM/TCM as necessary and Go to "Verification Vehicle Repair" procedure
CAUTION: ACTUATOR TEST CONDITION
1. IG SWITCH ON
2. TRANSAXLE RANGE SWITCH is normal
3. P RANGE
4. Vehicle Speed 0 km/h
5. Throttle position sensor< 1 V
6. IDLE SWITCH ON
7. ENGINE RPM 0
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Using a Scantool, Clear DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTCs present?
YES
a. Go to the applicable troubleshooting procedure.
NO
a. System performing to specification at this time.
