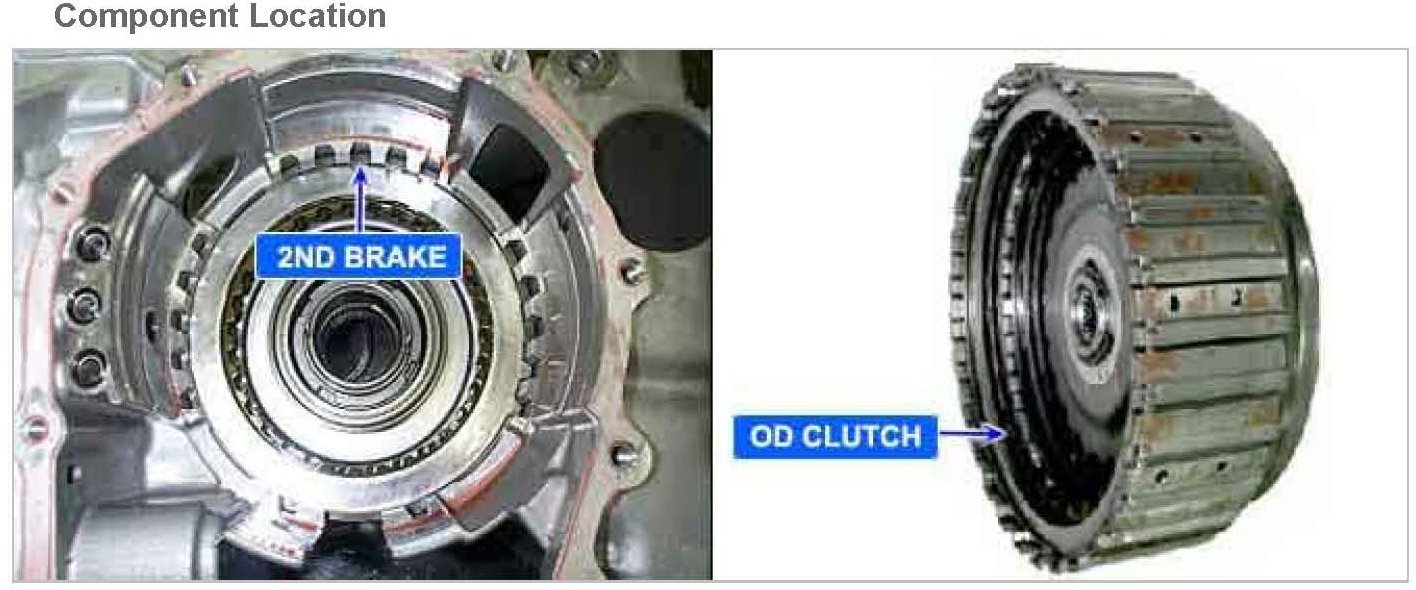

Component Location:

General Description
The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 4th gear ratio, while the transaxle is engaged in the 4th gear. For example, if the output speed is 1,000 rpm and the 4th gear ratio is 0.712, then the input speed is 712 rpm.

DTC Description
This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 4th gear ratio, while the transaxle is engaged in 4th gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

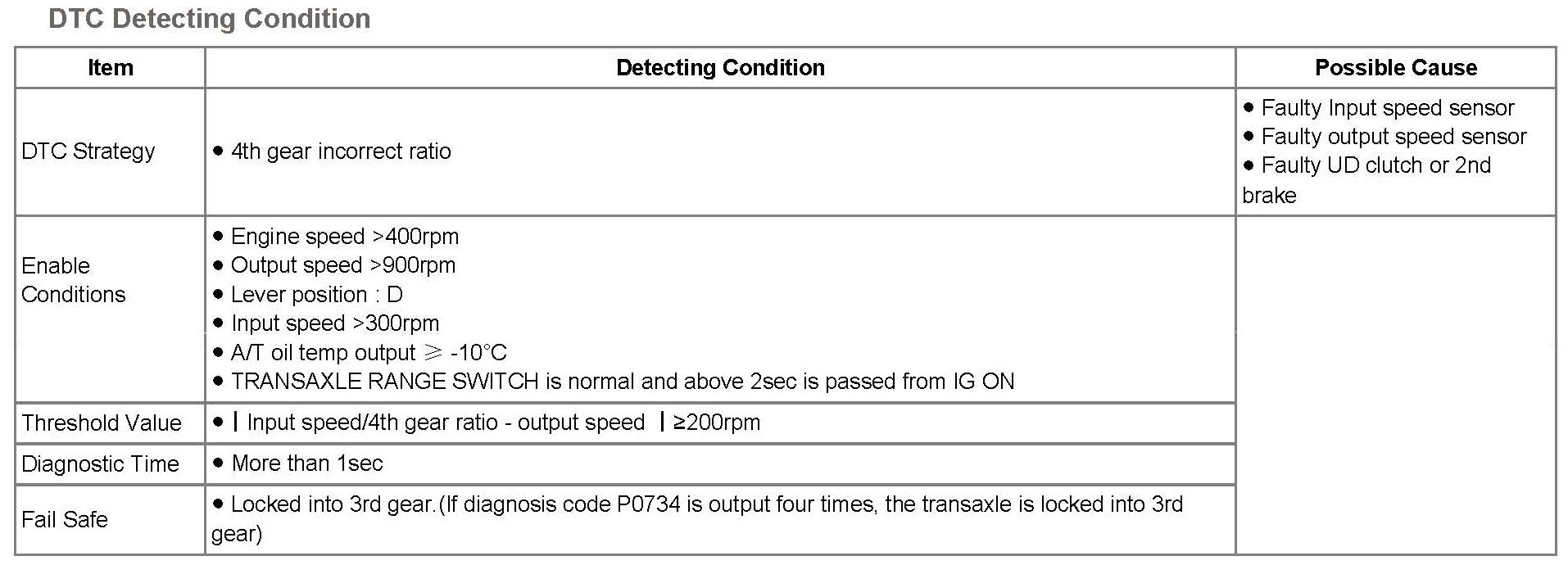

DTC Detecting Condition:

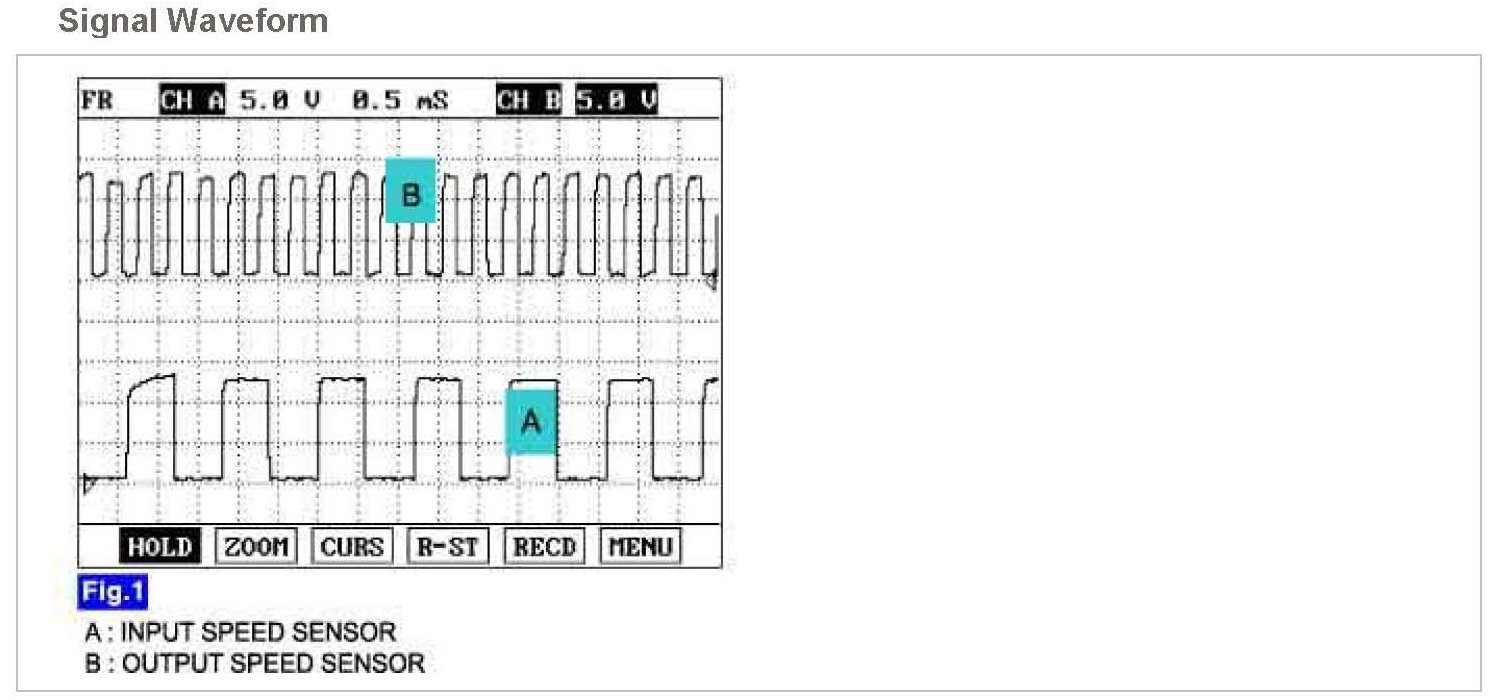

Signal Waveform:

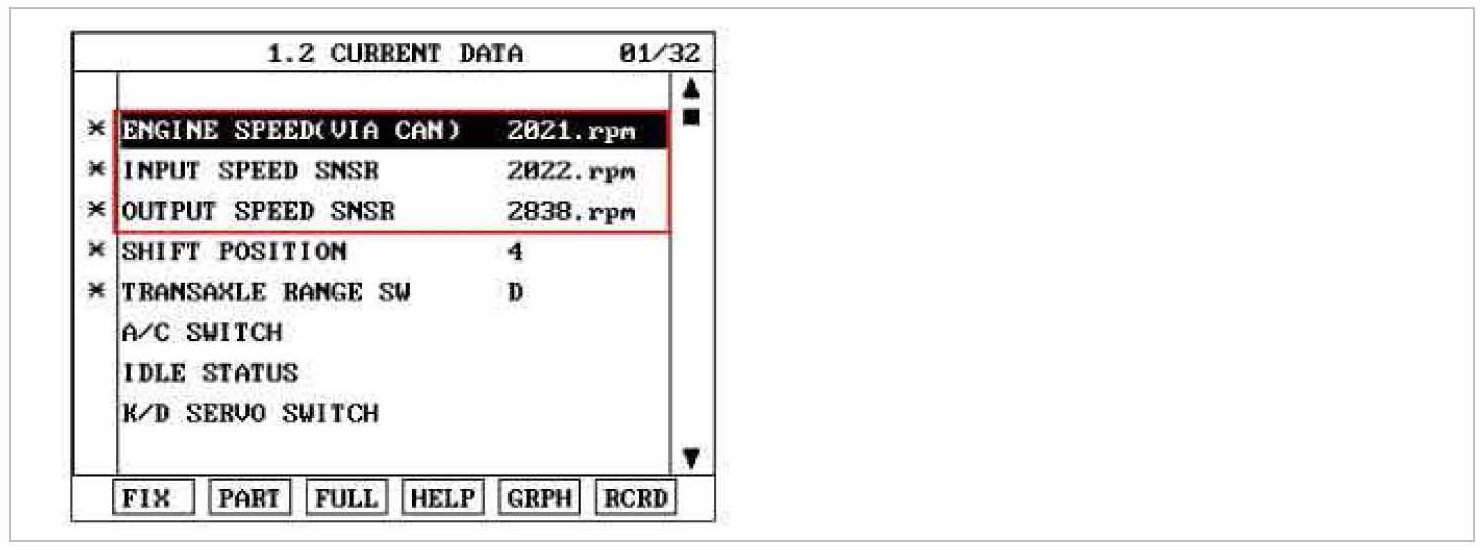

Monitor Scantool Data
* It is difficult to "STALL TEST" in 4th gear, therefore Go to "W/Harness Inspection" procedure

Signal Circuit Inspection
1. Connect Scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT & OUTPUT SPEED SENSOR" parameter on the scantool
4. Accelerate the Engine speed until about 2000 rpm in the 4th gear

Specification : INPUT SPEED - (OUTPUT SPEED • GEAR RATIO) ≤ 200 RPM






5. Are "INPUT & OUTPUT SPEED SENSOR" within specifications?

YES
a. Go to "Component Inspection" procedure

NO
a. Check for electrical noise of circuit in INPUT & OUTPUT SPEED SENSOR or Replace INPUT & OUTPUT SPEED SENSOR. Repair as necessary and Go to "Verification Vehicle Repair" procedure

Component Inspection

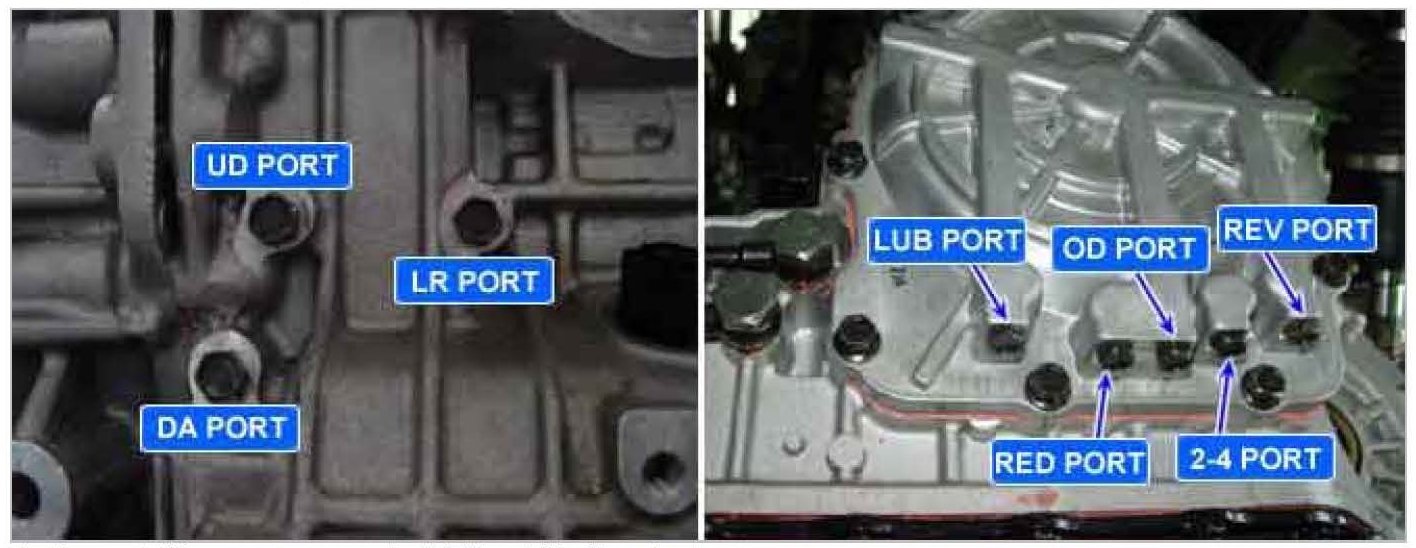

1. Connect Oil pressure gauge to "UD" and "2nd" port.
2. Engine "ON".
3. Drive a car with gear position "4"
4. Compare it with reference data as below

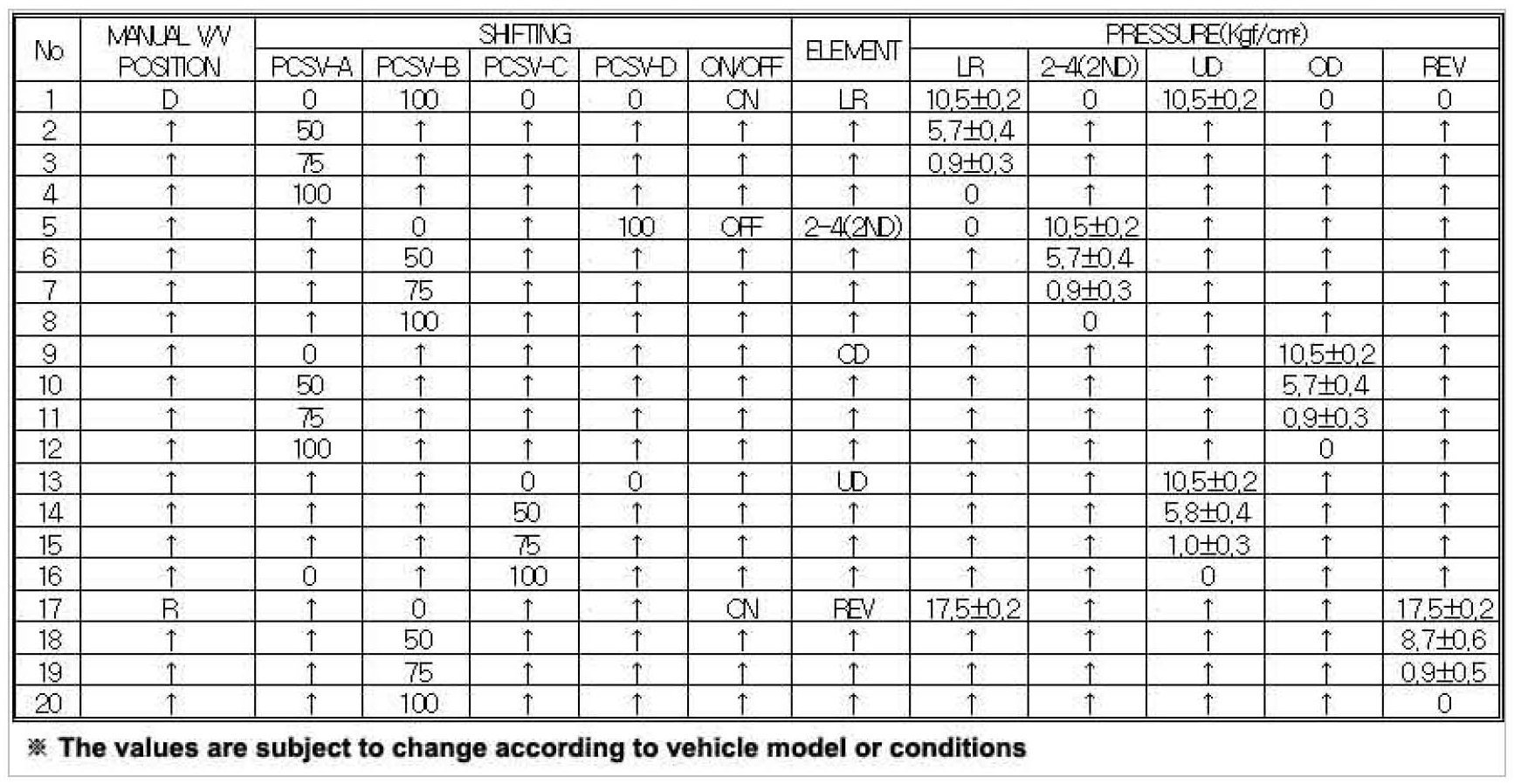

Specification :






5. Is oil pressure value within specifications?

YES
a. Repair AUTO TRANSAXLE (Clutch or Brake) as necessary and Go to "Verification Vehicle Repair" procedure.

NO
a. Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "Verification Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Using a Scantool, Clear DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTCs present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System performing to specification at this time.
