2.0L DOHC

P0444

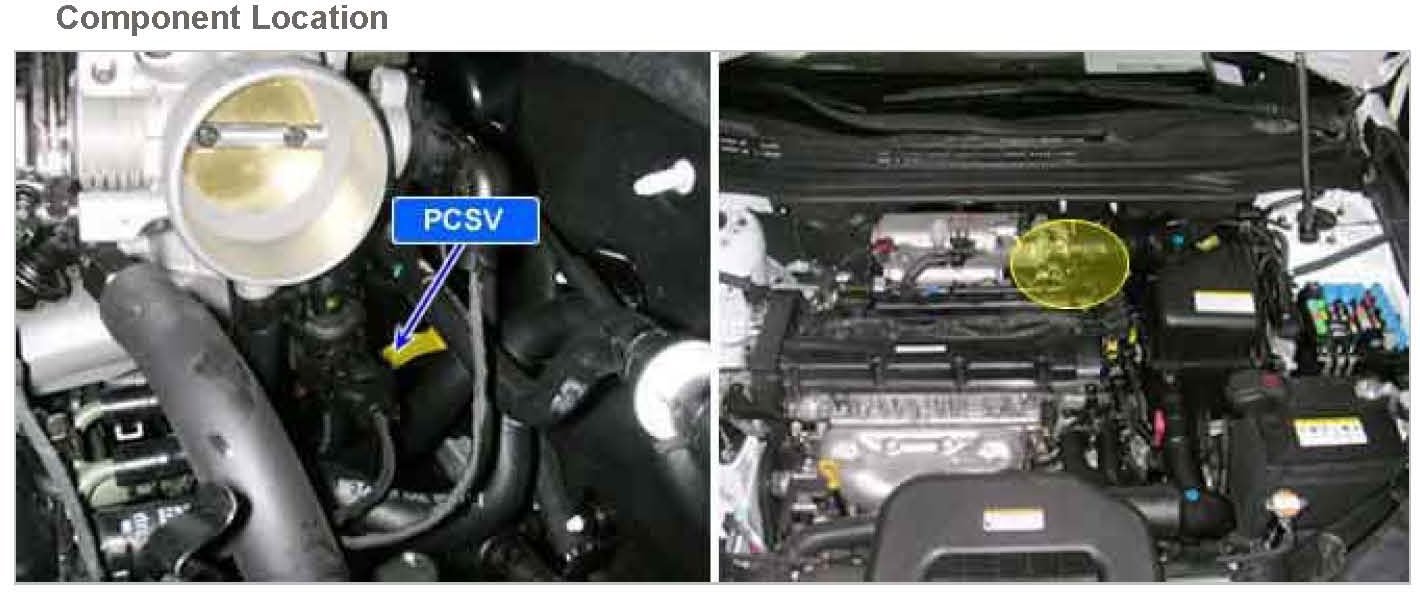

Component Location:

General Description
The evaporative emission control system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The ECM controls the Purge Control Solenoid Valve (PCSV) to purge any collected vapors from the canister back to the engine for combustion. This valve is actuated by the purge control signal from the ECM and controls fuel vapor flow from the canister to the intake manifold.

DTC Description
ECM sets DTC P0444 if the ECM detects that the PCSV control circuit is open.

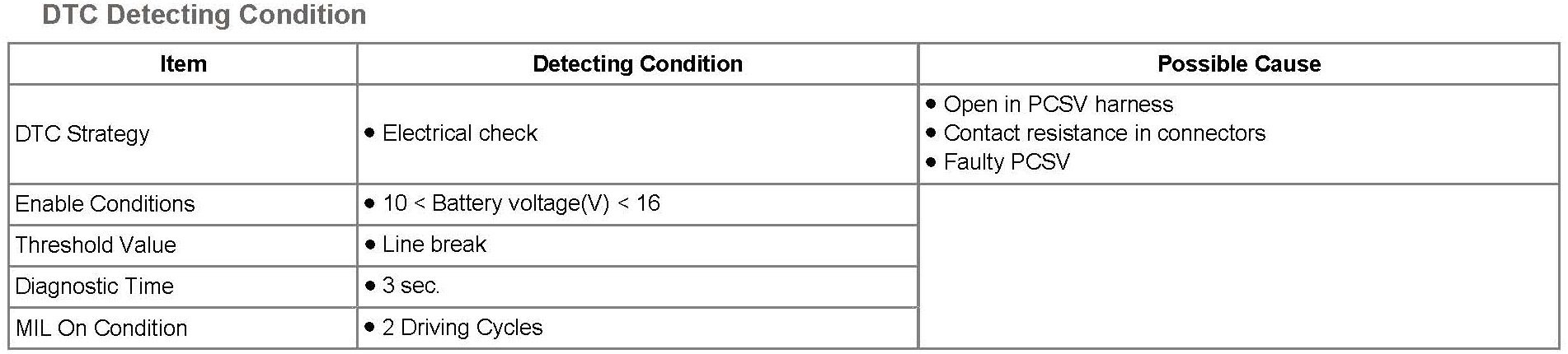

DTC Detecting Condition:

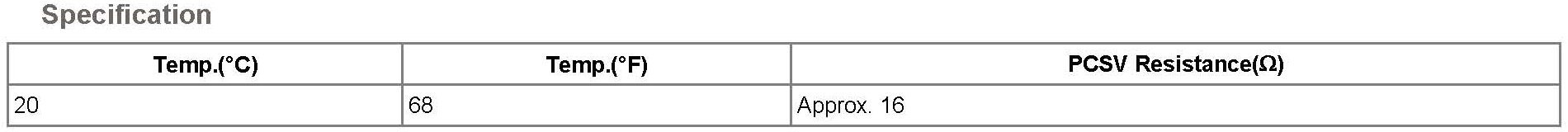

Specification:

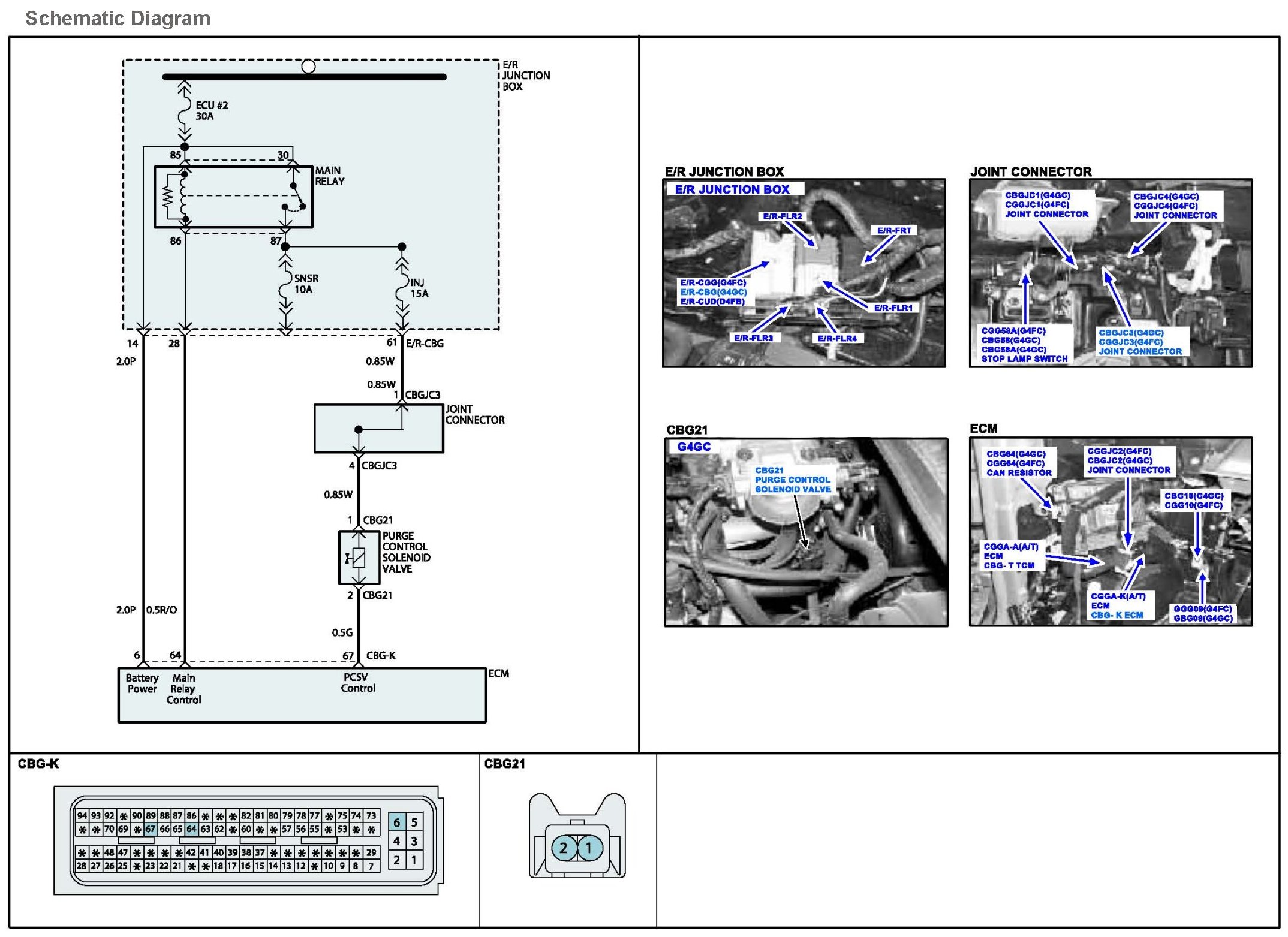

Schematic Diagram:

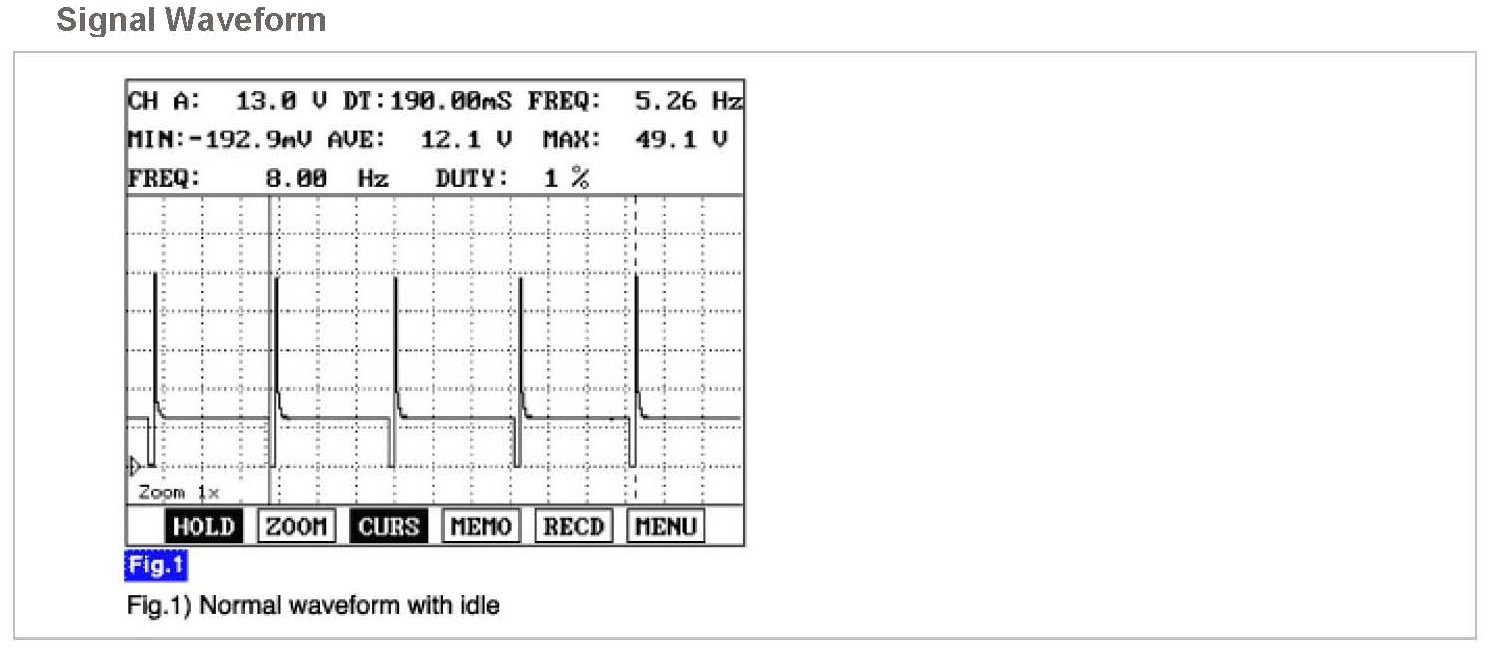

Signal Waveform:

Monitor DTC Status
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode

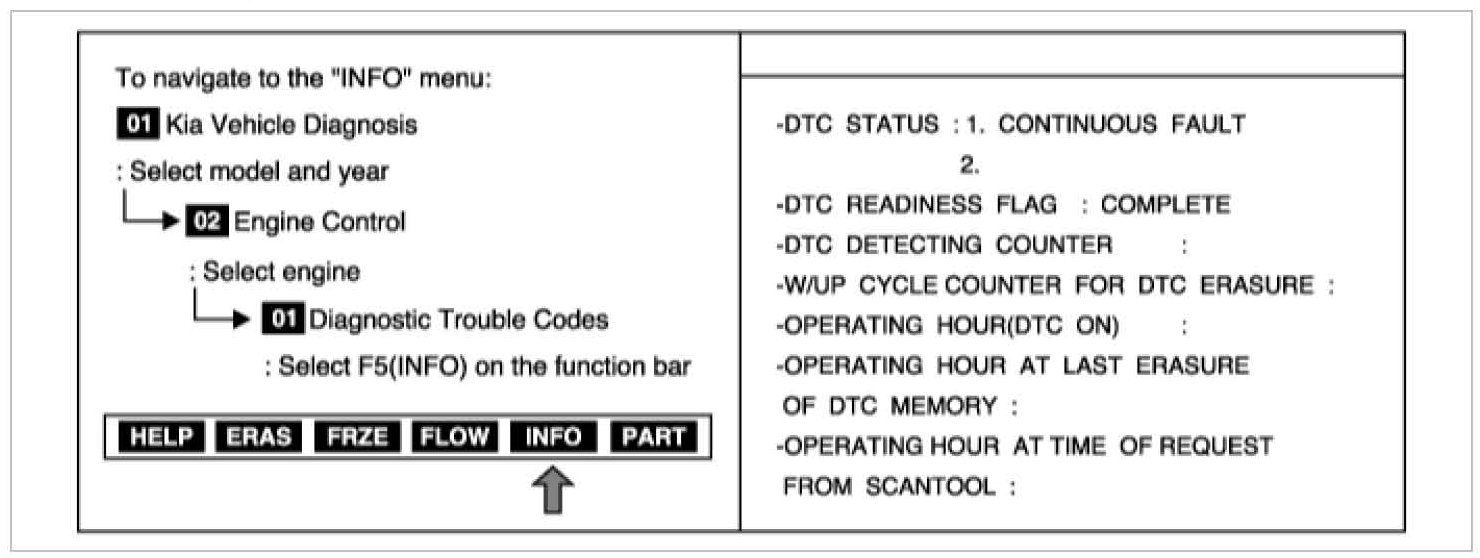

2. Press F4 (DTAL) to select DTC information from the DTCs menu.
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
4. Read "DTC Status" parameter






5. Is parameter displayed "History (Not Present) fault"?

CAUTION
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.

YES
a. Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO
a. Go to next step as below.

Component Inspection
1. Ignition "OFF"
2. Disconnect PCSV connector

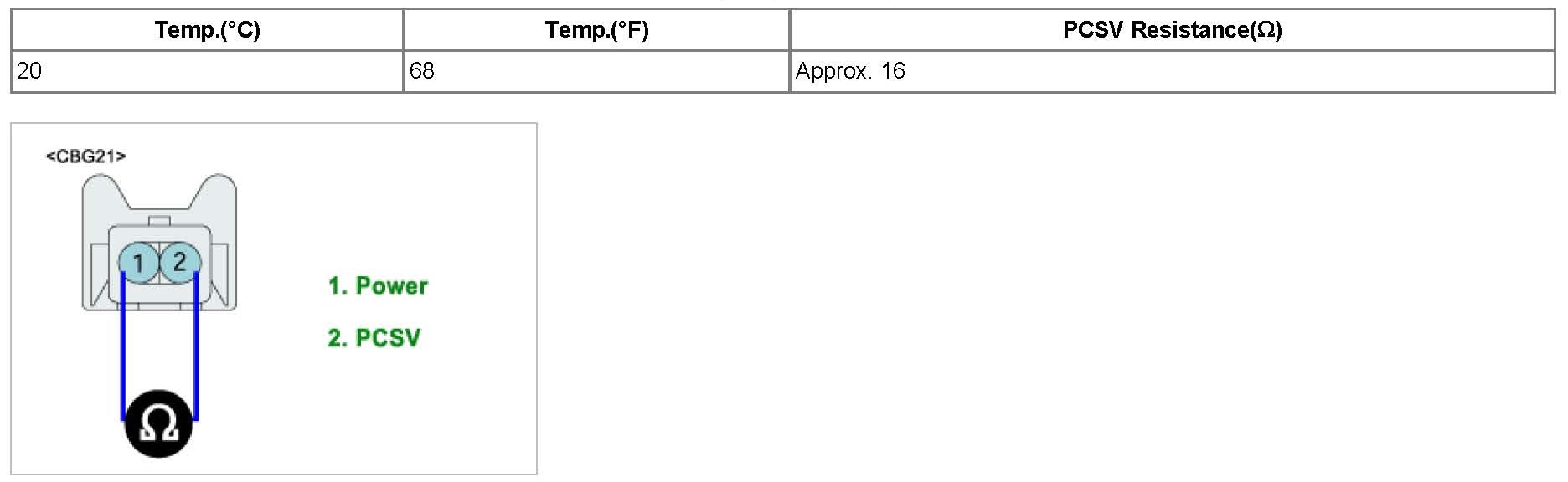

3. Measure resistance between terminals 1 and 2 of the PCSV connector (Component side)






4. Is resistance within the specification?

YES
a. Go to next step as below

NO
a. Check PCSV for contamination, deterioration, or damage. Substitute with a known-good PCSV and check for proper operation. If the problem is corrected, replace PCSV and then go to "Verification of Vehicle Repair" procedure
