2.0L SULEV

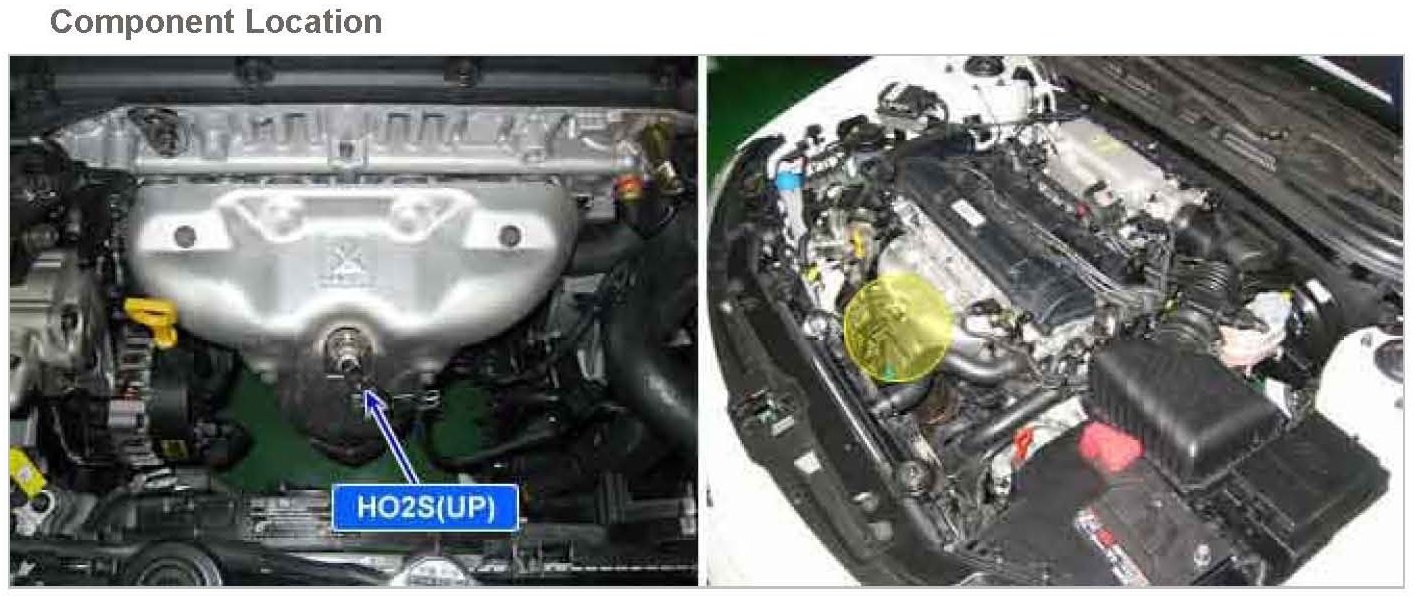

P0132Component Location:
General Description
The linear O2 sensor is mounted on the front side of the Catalytic Converter (warm-up catalytic converter) or in the front exhaust pipe. It detects a wide range of air/fuel ratios in the exhaust gas from the rich to lean regions. This linear O2 sensor produces a current that corresponds to a specific air/fuel ratio. The ECM monitors this signal and determines whether the air/fuel mixture is rich or lean. The ECM constantly monitors the linear O2 sensor and increases or decreases the fuel injection duration using this signal. This is called closed-loop fuel control operation.
DTC Description
The control unit of the linear oxygen sensor built inside the ECM monitors short circuit error on all front Heated Oxygen Sensor (HO2S) control lines (PIN#19, PIN#40, PIN#41 and PIN#53) and ECM sets P0132 with short circuit to battery. If same code is set again in the next driving cycle, MIL is illuminated.

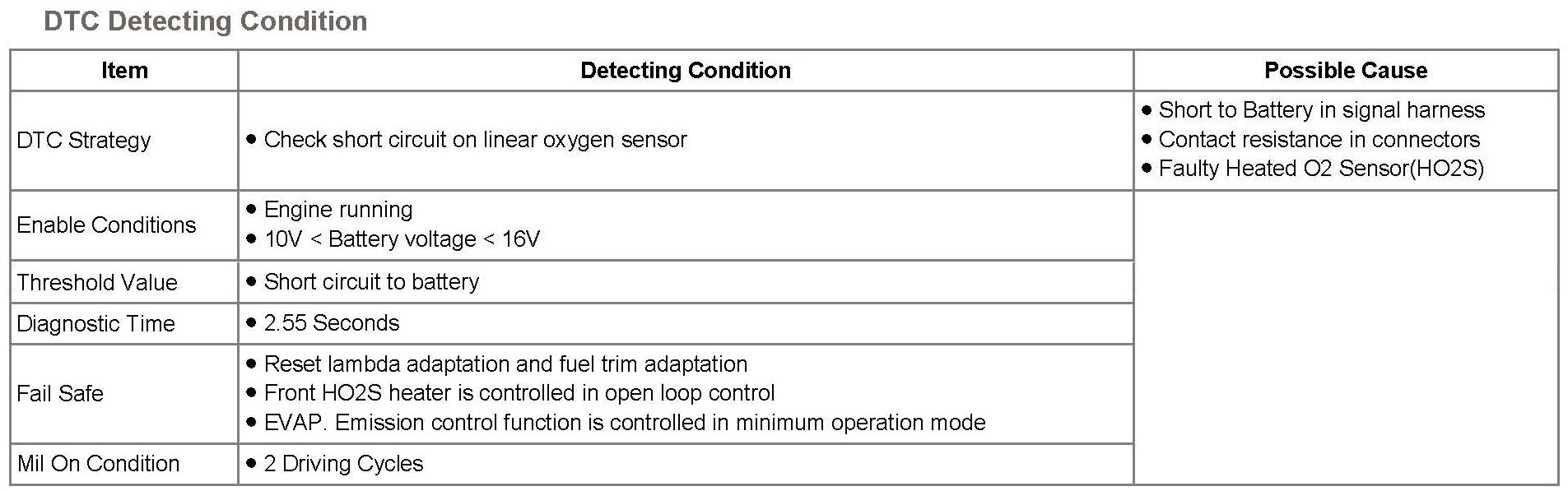

DTC Detecting Condition:
Schematic Diagram:

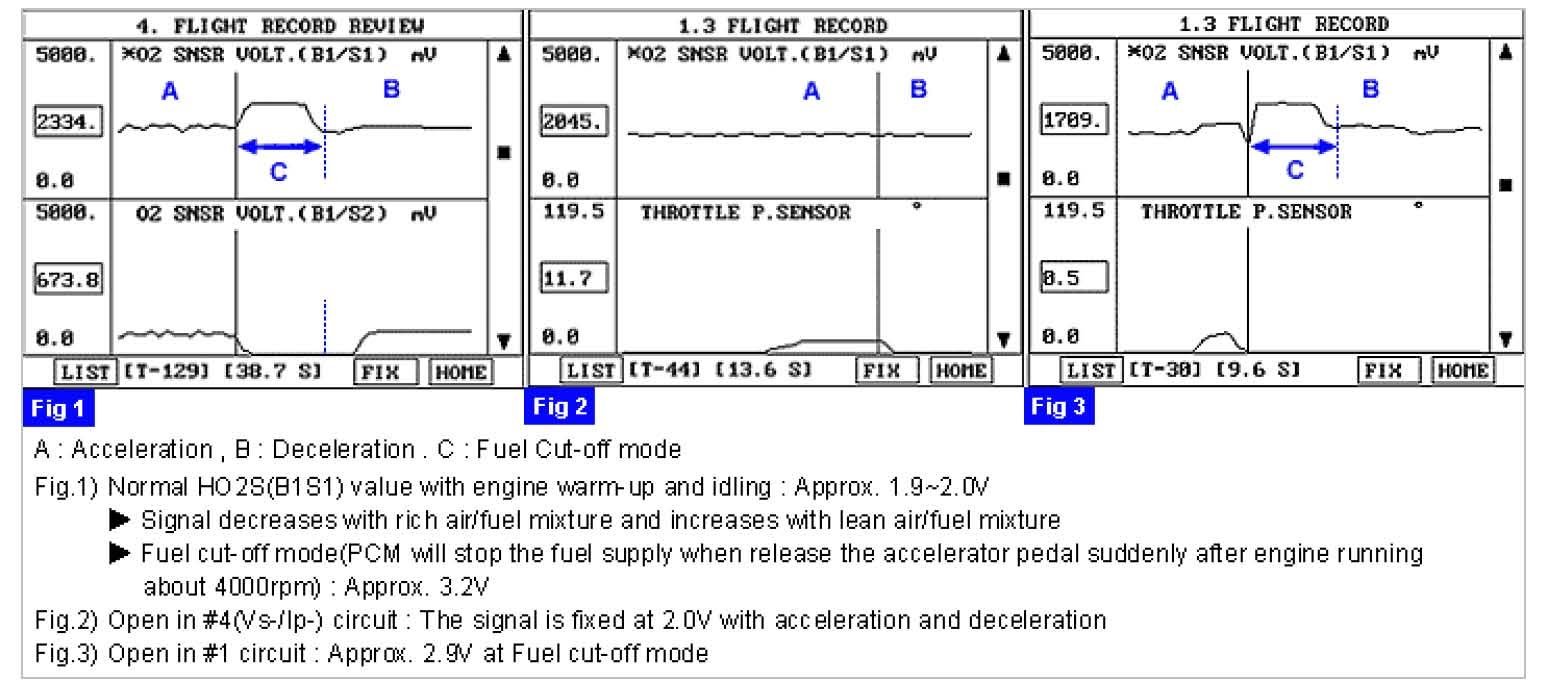

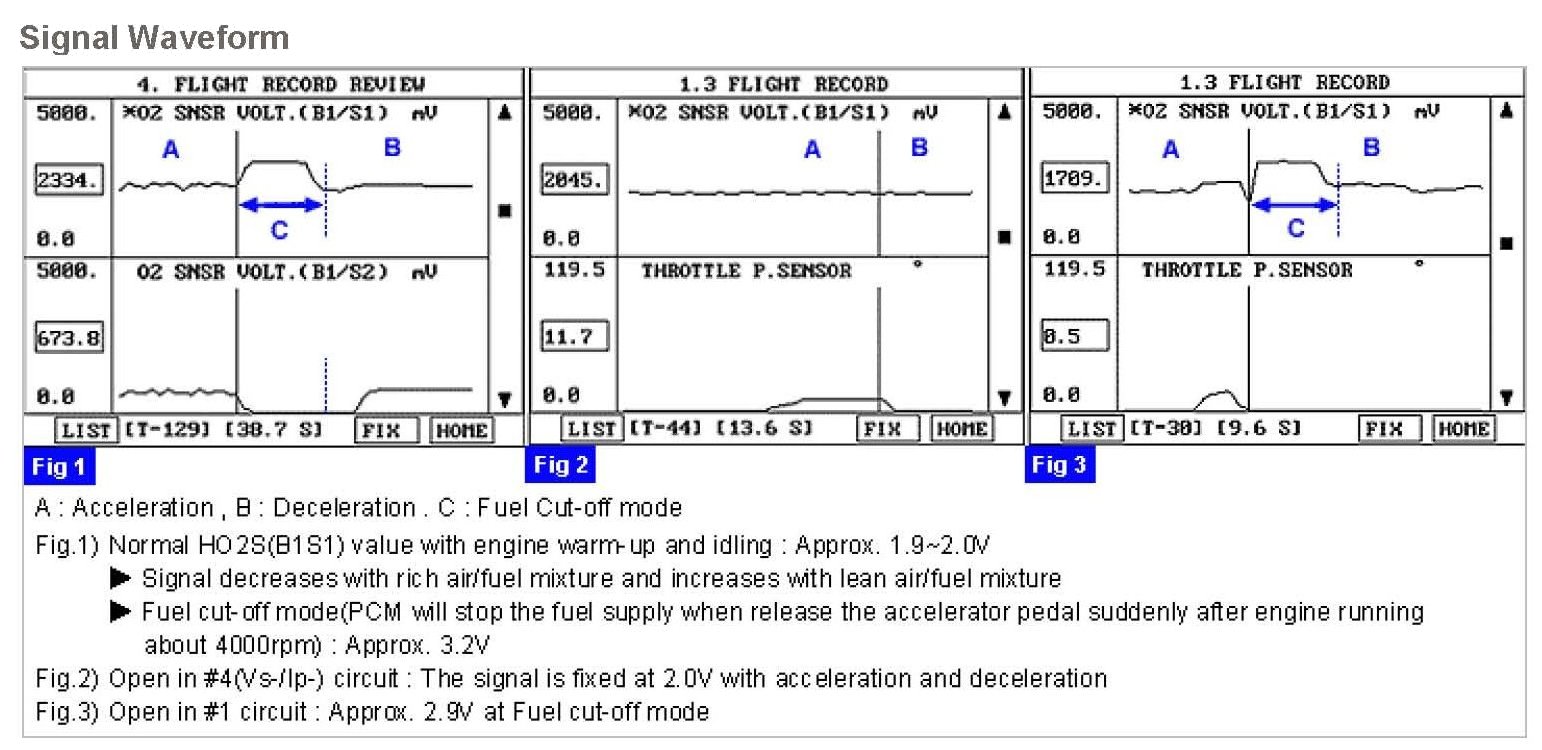

Signal Waveform:
Monitor DTC Status

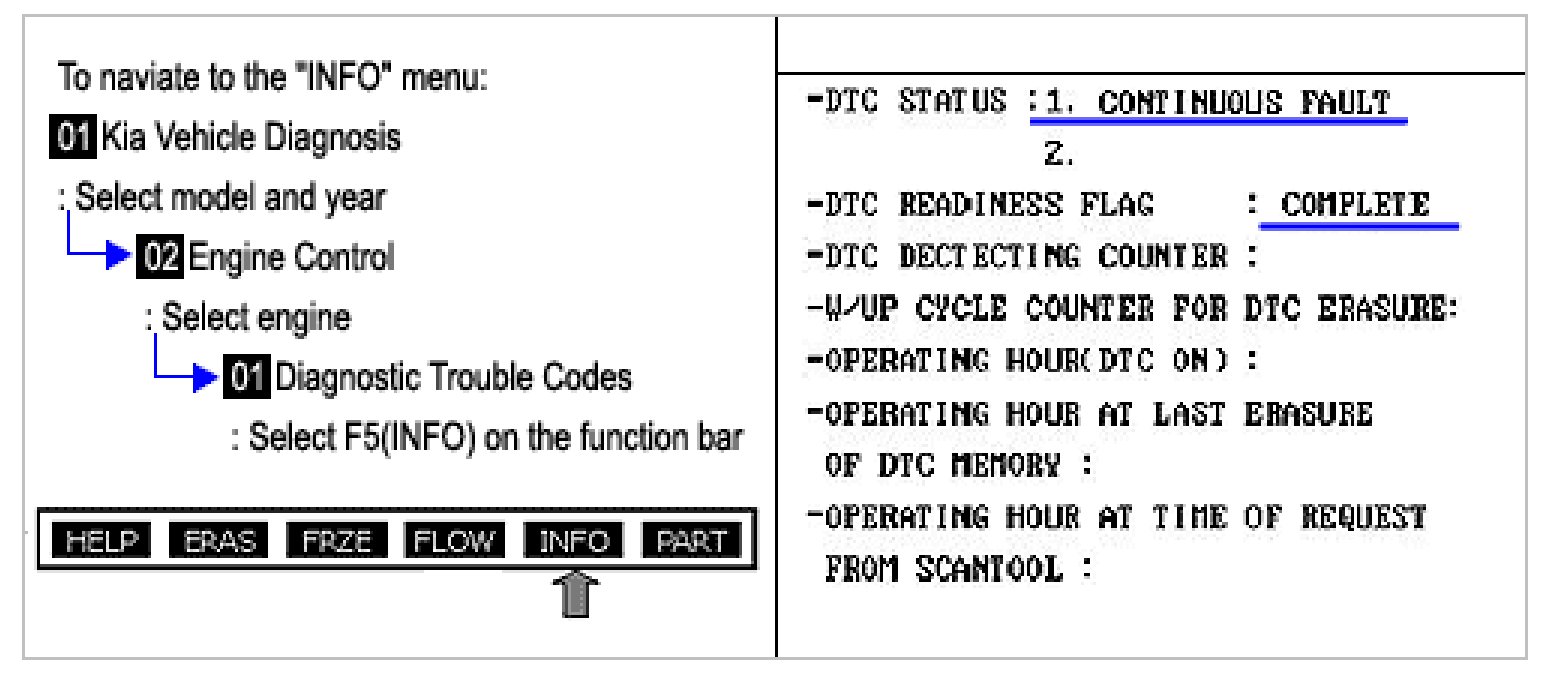

1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Press F5 (INFO) to select DTC information from the DTCs menu
3. Confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
4. Read "DTC Status" parameter
5. Is parameter displayed "History (Not Present) fault"?
CAUTION:
- History (Not Present) fault : DTC occurred but has been cleared.
- Present fault : DTC is occurring at present time.
YES
a. Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for loose or poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure
NO
a. Go to "W/Harness Inspection" procedure
Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
a. Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
a. Go to "Control Circuit Inspection" procedure
Control Circuit Inspection
1. Ignition "OFF"
2. Disconnect HO2S and ECM connector
3. Ignition "ON" & Engine "OFF"

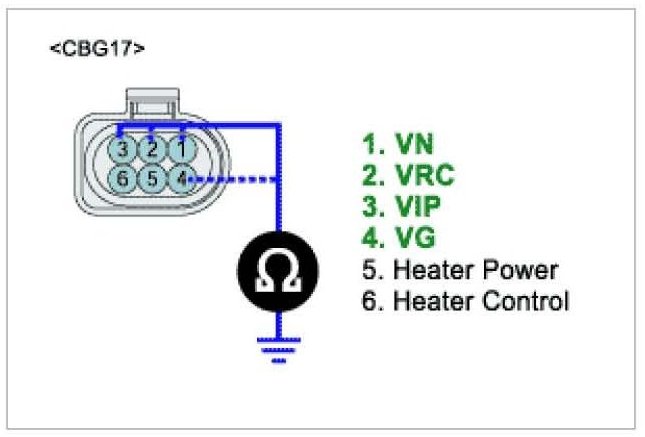

4. Measure resistance between terminal 1 of the sensor harness connector and chassis ground
5. Measure resistance between terminal 2 of the sensor harness connector and chassis ground
6. Measure resistance between terminal 3 of the sensor harness connector and chassis ground
7. Measure resistance between terminal 4 of the sensor harness connector and chassis ground
Specification : infinity
8. Is HO2S display near the specification?
YES
a. Go to "Component Inspection" procedure
NO
a. Repair as necessary and go to "Verification of Vehicle Repair" procedure
Component Inspection
1. Visually/physically inspect following items:
- Inspect the front HO2S for any silicon contamination. This contamination will be indicated by a white powdery coating and this will result in a but false voltage signal
- If contamination is evident on the HO2S, replace contaminated sensor and go to next step.
2. Warm up the engine to normal operating temperature and check that HO2S signal is active.
3. Connect Scantool and monitor the "O2 SNSR VOLT. (B1/S1)" parameter on the Scantool data list.
Test Condition : Engine "ON" & In Closed loop mode
4. Is sensor data near the specified value?
YES
a. Check for poor connection between ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO
a. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to "Verification of Vehicle Repair" procedure
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode
2. Press 5 (INFO) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
3. Read "DTC Status" parameter
4. Is parameter displayed "History (Not Present) fault"?
YES
a. System performing to specification at this time. Clear the DTC
NO
a. Go to the applicable troubleshooting procedure.
