B2500

B2500

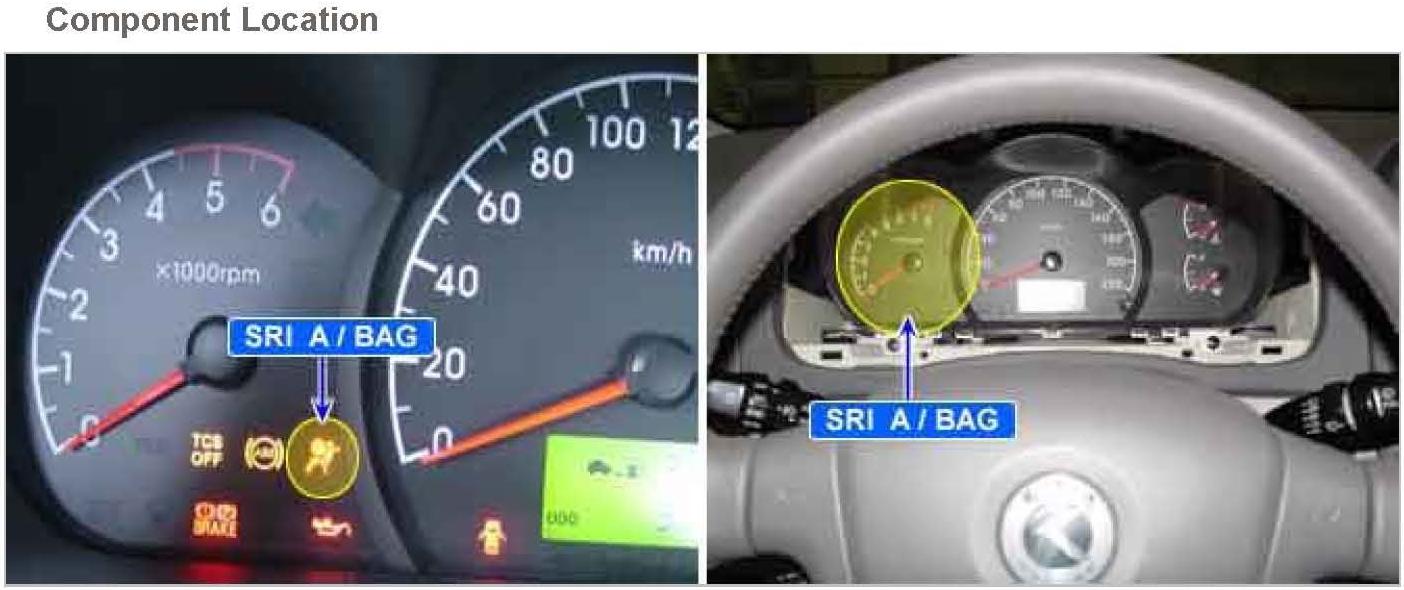

Component Location:

General Description
Air bag warning lamp is located at cluster. When key is in 'ignition on' position, SRSCM performs diagnosis of overall air bag system. If there's no fault, air bag. Warning lamp in cluster flickers for a while and then goes out. SRSCM measures voltage of out terminal of warning lamp to check if warning lamp is operated in accordance with signal SRSCM sends.

DTC Description
The SRSCM sets DTC B2500 if there is any fault in air bag warning light circuit.

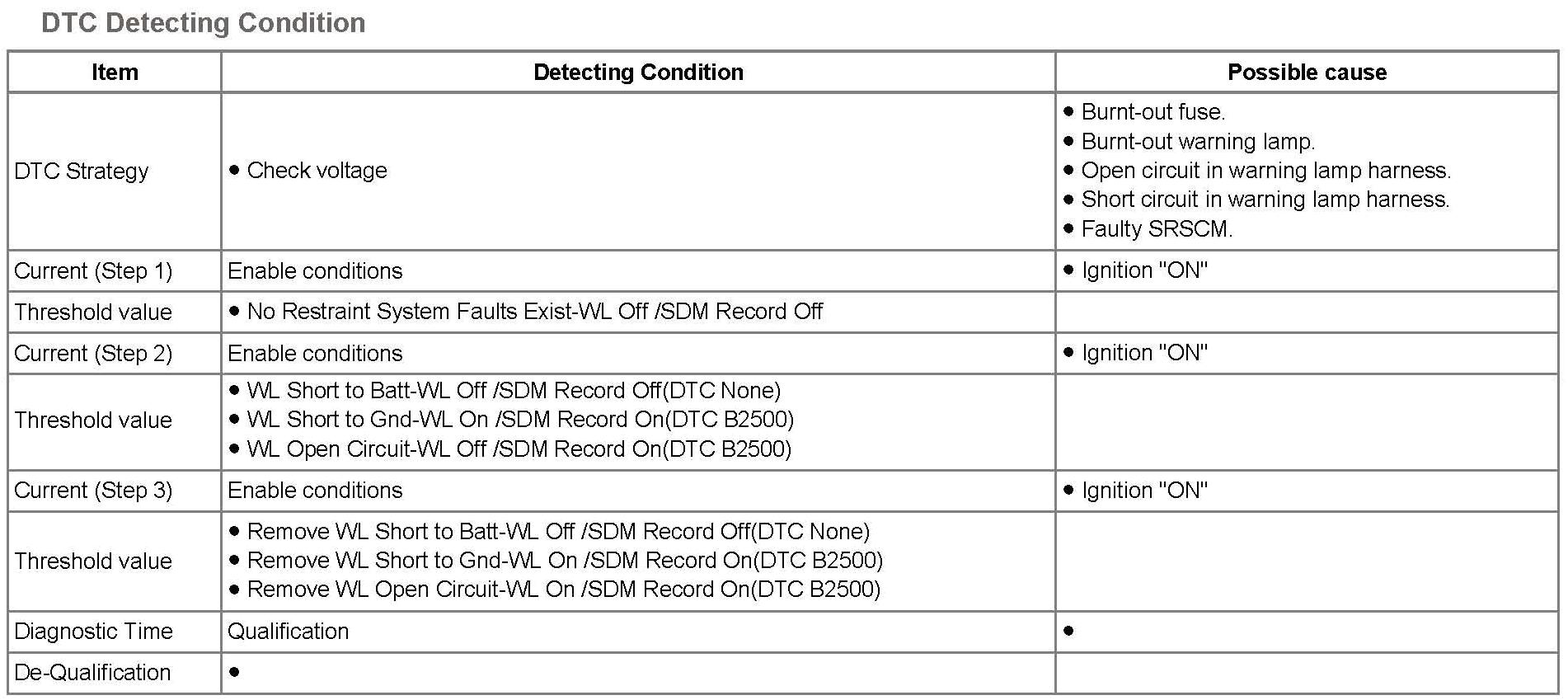

DTC Detecting Condition:

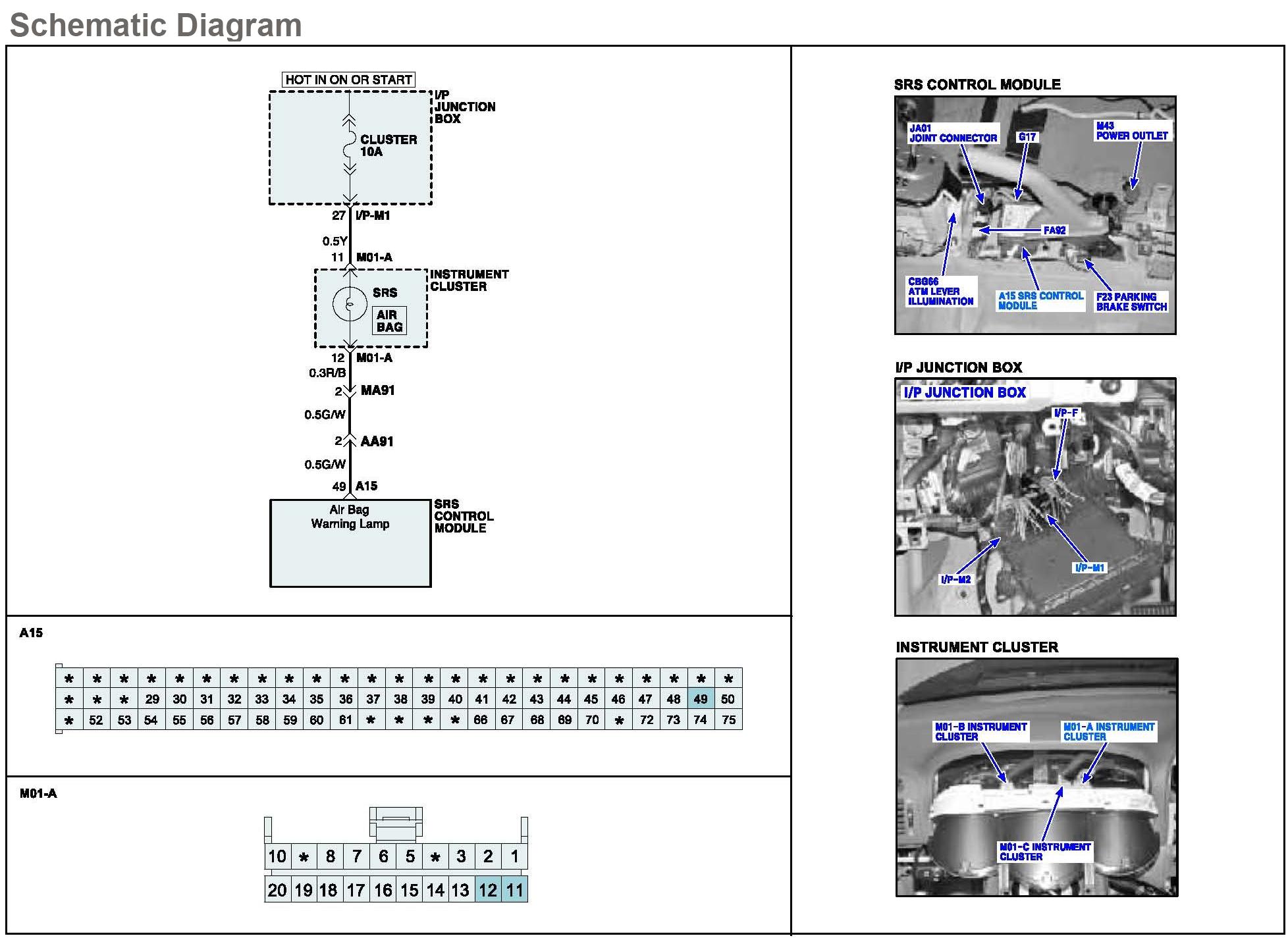

Schematic Diagram:

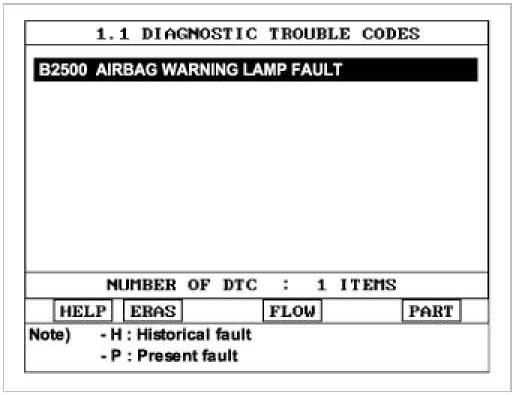

Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.






5. Is DTC present problem?

YES
a. Go to "W/Harness Inspection" procedure.

NO
a. Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
b. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check shorting connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

YES
a. Repair as necessary and then go to "Verification of Vehicle Repair" procedure.

NO
a. Go to "Warning lamp Circuit Inspection" procedure.

Warning lamp Circuit Inspection
4. Ignition "OFF".
5. Remove the Instrument cluster from crash pad assembly.
6. Ignition "ON" & Engine "OFF".

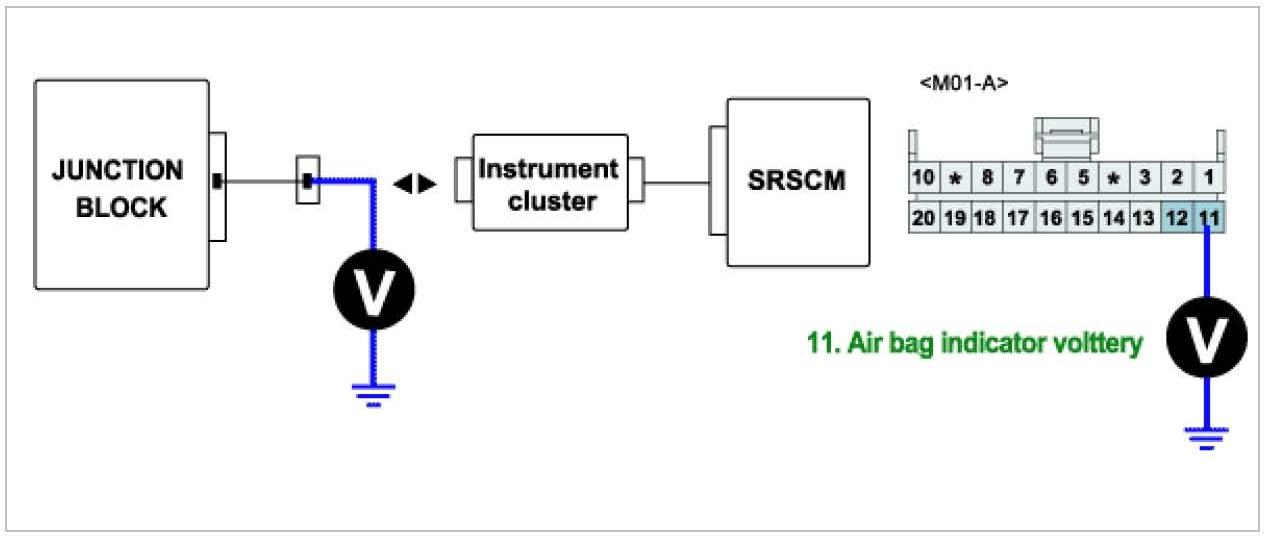

7. Measure voltage between terminal "M01-A-11"of the Instrument cluster harness connector and chassis ground.

a. Specification : Batt Voltage






8. Is the measured voltage within specifications?

YES
a. Check warning lamp and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO
a. Check airbag fuse, junction block, Warning Lamp, harness between junction block and SRSCM. Repair as necessary and go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTC)" mode
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System is performing to specification at this time.
