B1670

B1670

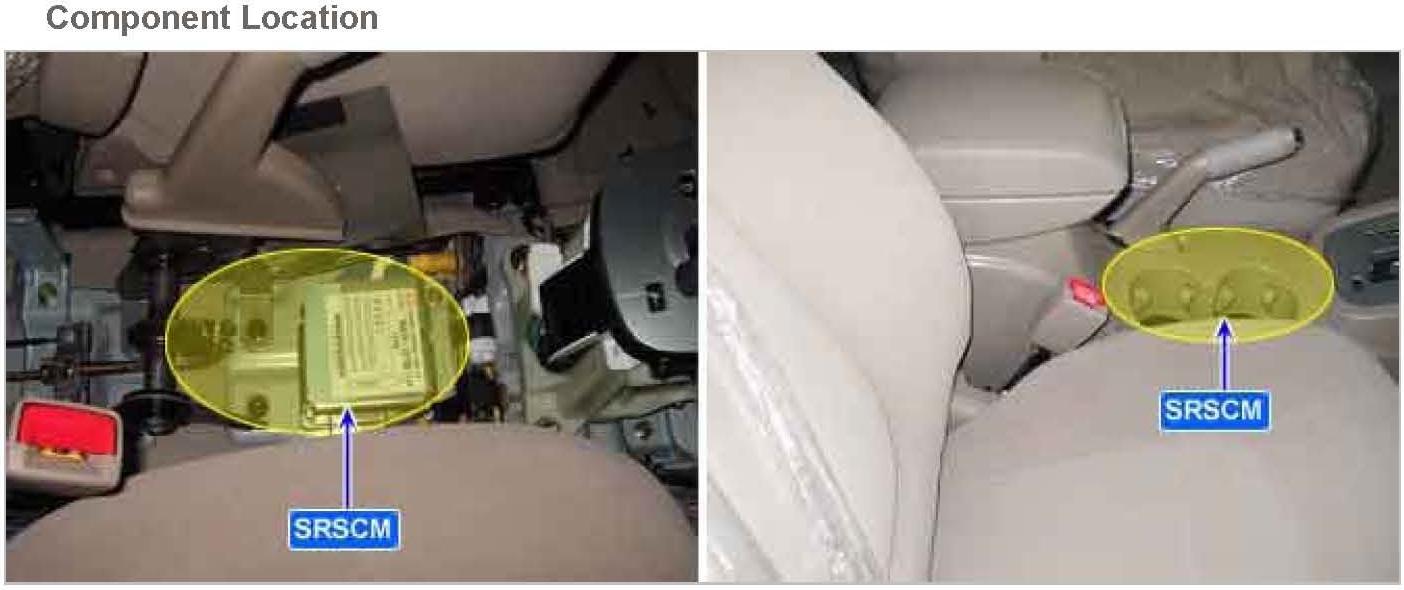

Component Location:

General Description
Self-diagnosis System
A self-diagnosis circuit is built into the SRS control module, When the ignition switch is turned ON, the SRSCM indicator light comes on and goes off after about six seconds if the system is operating normally.

DTC Description
When the Crash recorded in full stage in the SRS Control module.

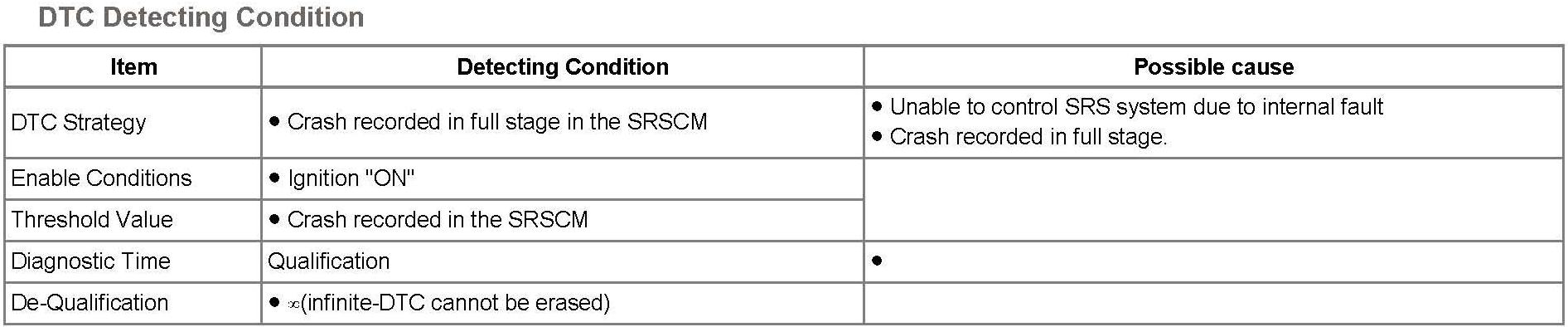

DTC Detecting Condition:

Schematic Diagram:

Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.






5. Is DTC present problem?

YES
1. DTC caused by deployment of front air bag. Substitute with a SRSCM and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTC)" mode
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System is performing to specification at this time.
