B1620

B1620

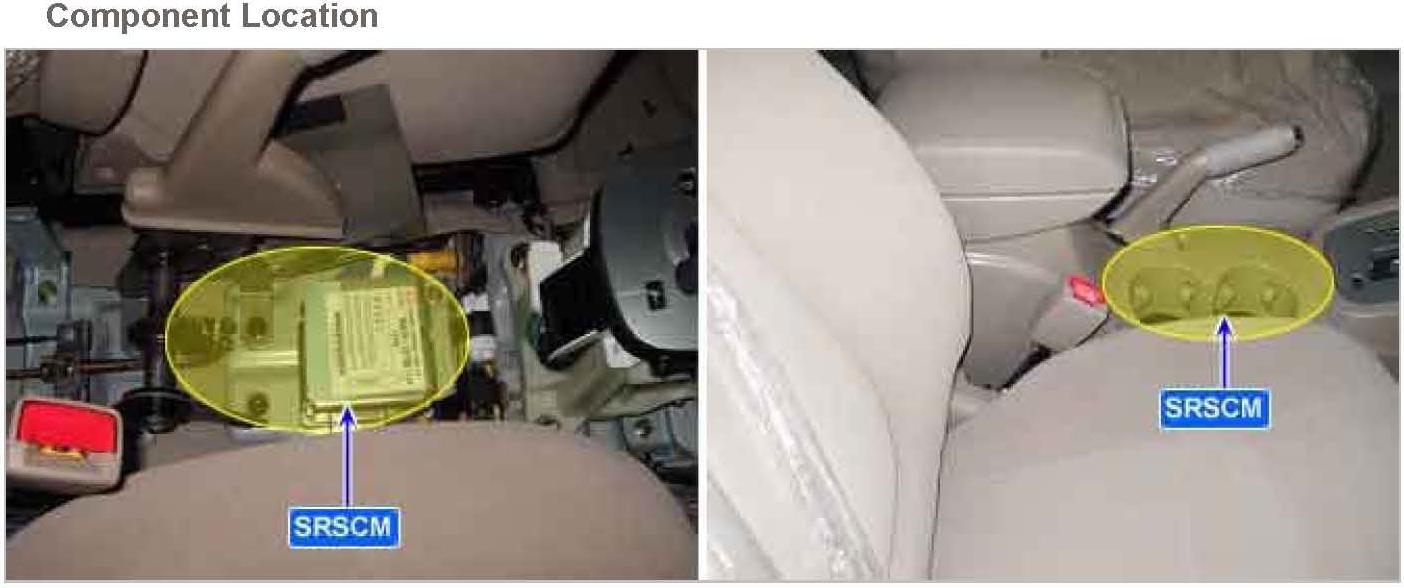

Component Location:

General Description
In collision, SRSCM sends current to pertinent air bag for deployment. Besides SRSCM performs diagnosis of overall air bag system and light warning lamp if there's any fault in it. Main functions of SRSCM are as follows.
1. Collision and Passenger presence Detection.
2. Determination of BPT, BUPT and air bag deployment in accordance with given condition.
3. Internal and external diagnosis of air bag system.
4. Warning by warning lamp if there's any fault in airbag system.
5. Proffering data for scantool diagnosis.

DTC Description
The SRSCM sets DTC B1620 if there is any fault in SRSCM.

DTC Detecting Condition:

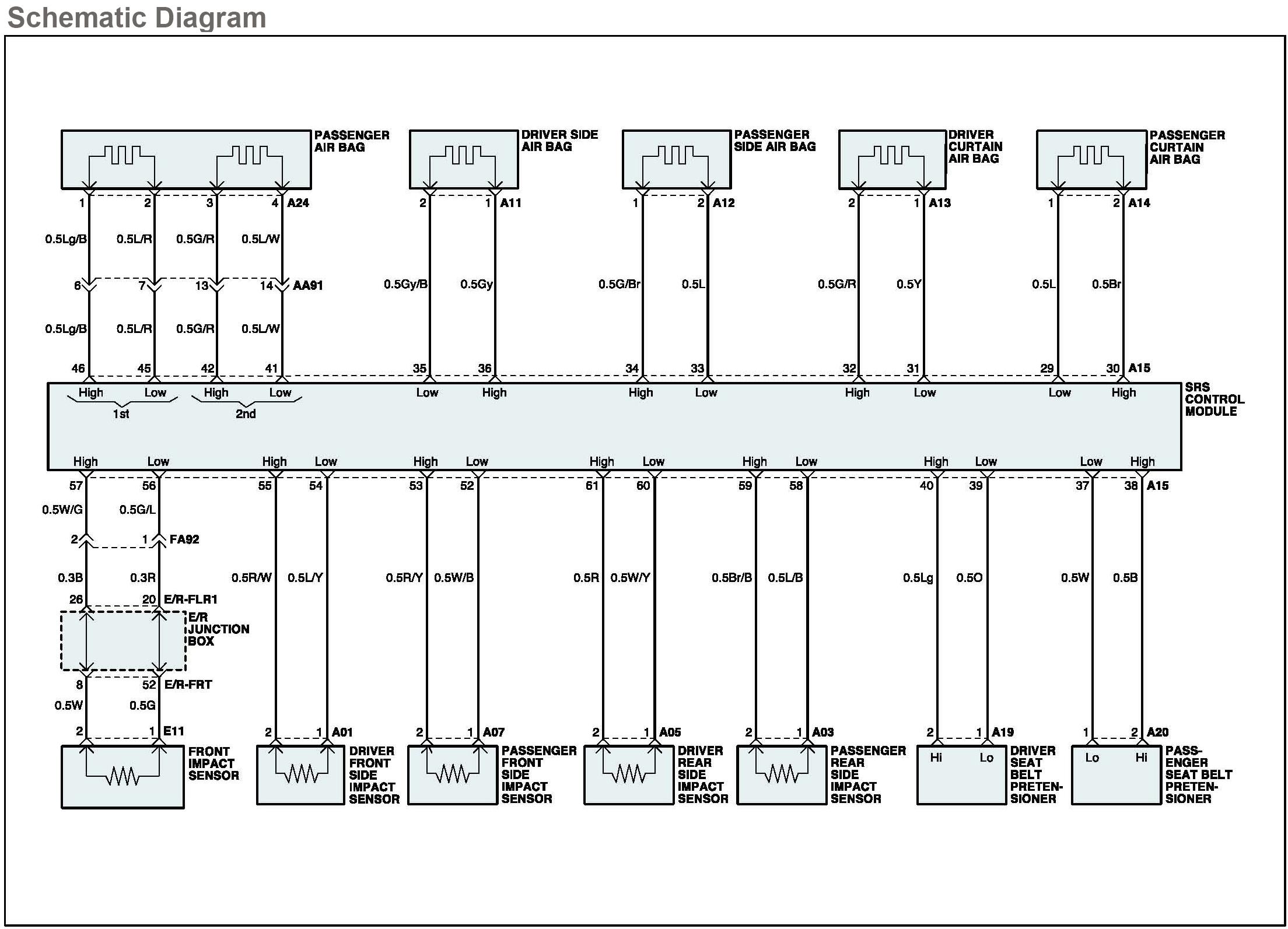

Schematic Diagram (Part 1):

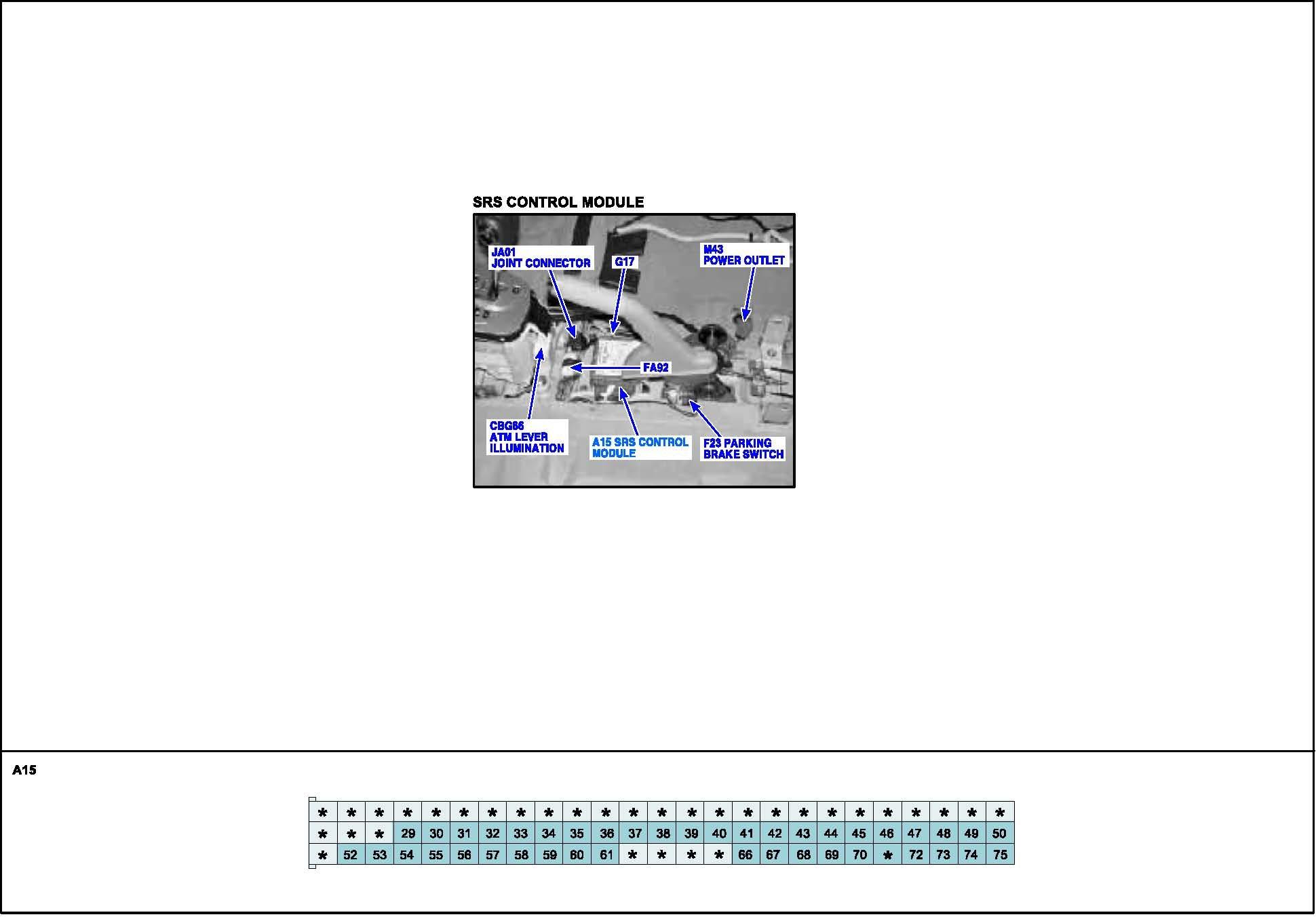

Schematic Diagram (Part 2):

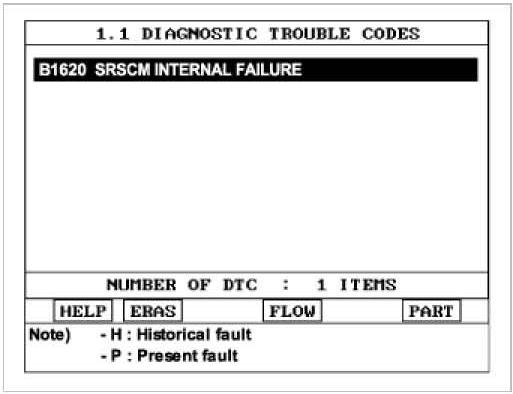

Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.






5. Is DTC present problem?

YES
1. Internal fault of SRSCM. Substitute with a SRSCM and check for proper operation.If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTC)" mode
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System is performing to specification at this time.
