B1511

B1511

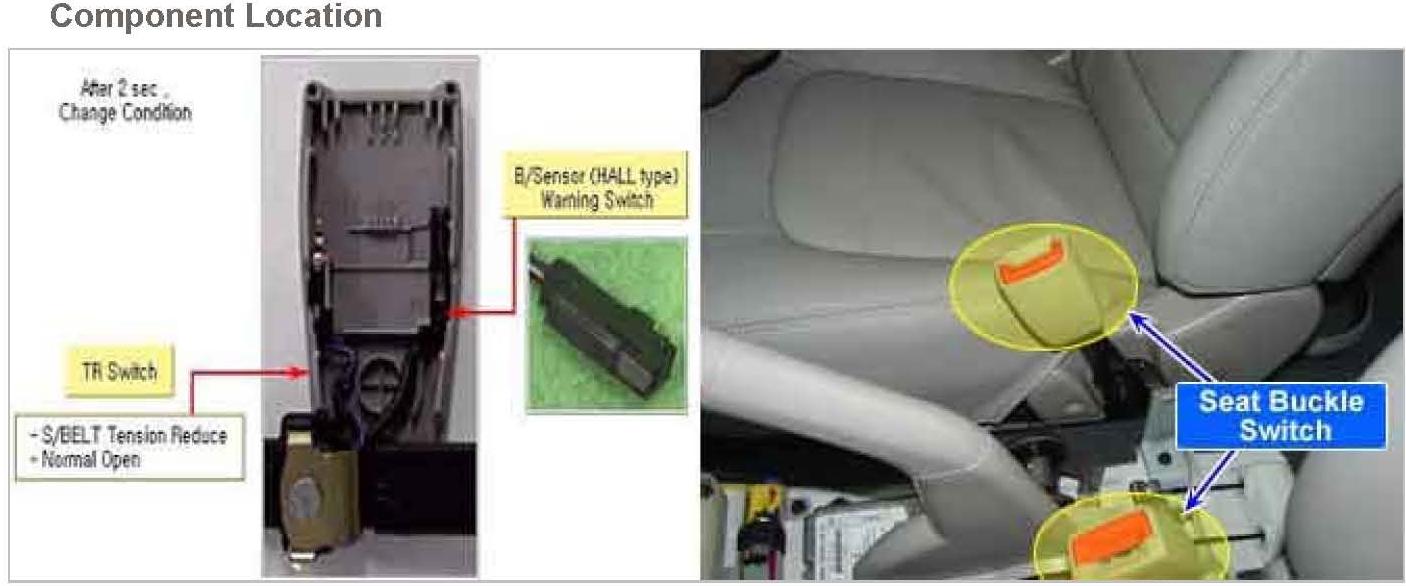

Component Location:

General Description
Seat-belt Buckle Switch (SBBS) is located in driver and passenger side seat. SRSCM checks if seatbelt is buckled by signal of SBBS. SRSCM controls air bag module and BPT differently in accordance with vehicle speed at the moment of collision and signal from SBBS.

DTC Description
The SRSCM sets DTC B1511 if there is a open circuit or short to power in DSBBS harness.

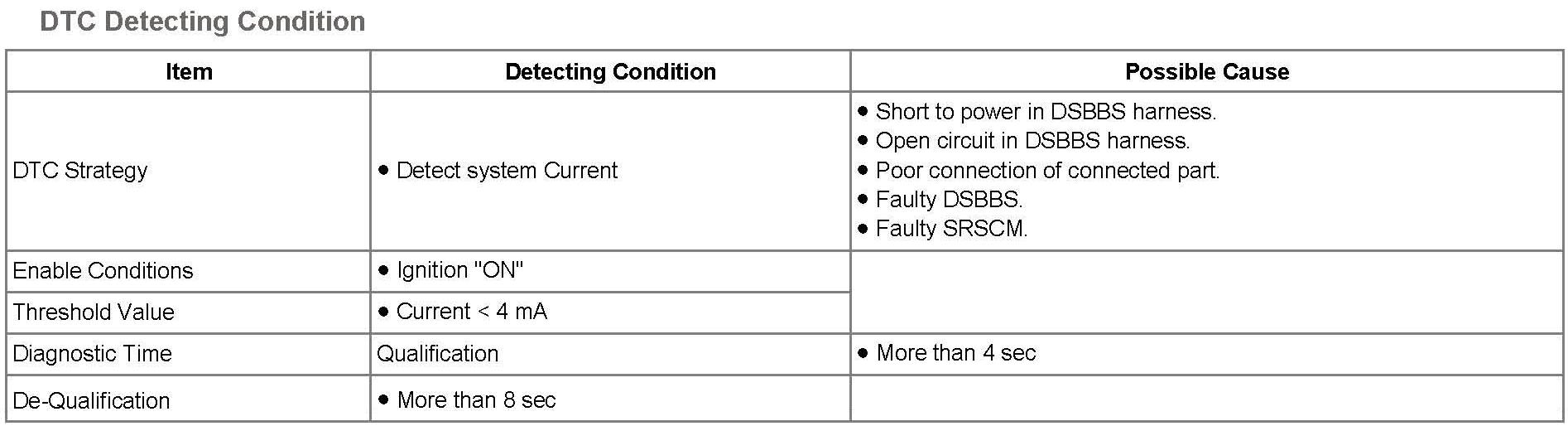

DTC Detecting Condition:

Specification:

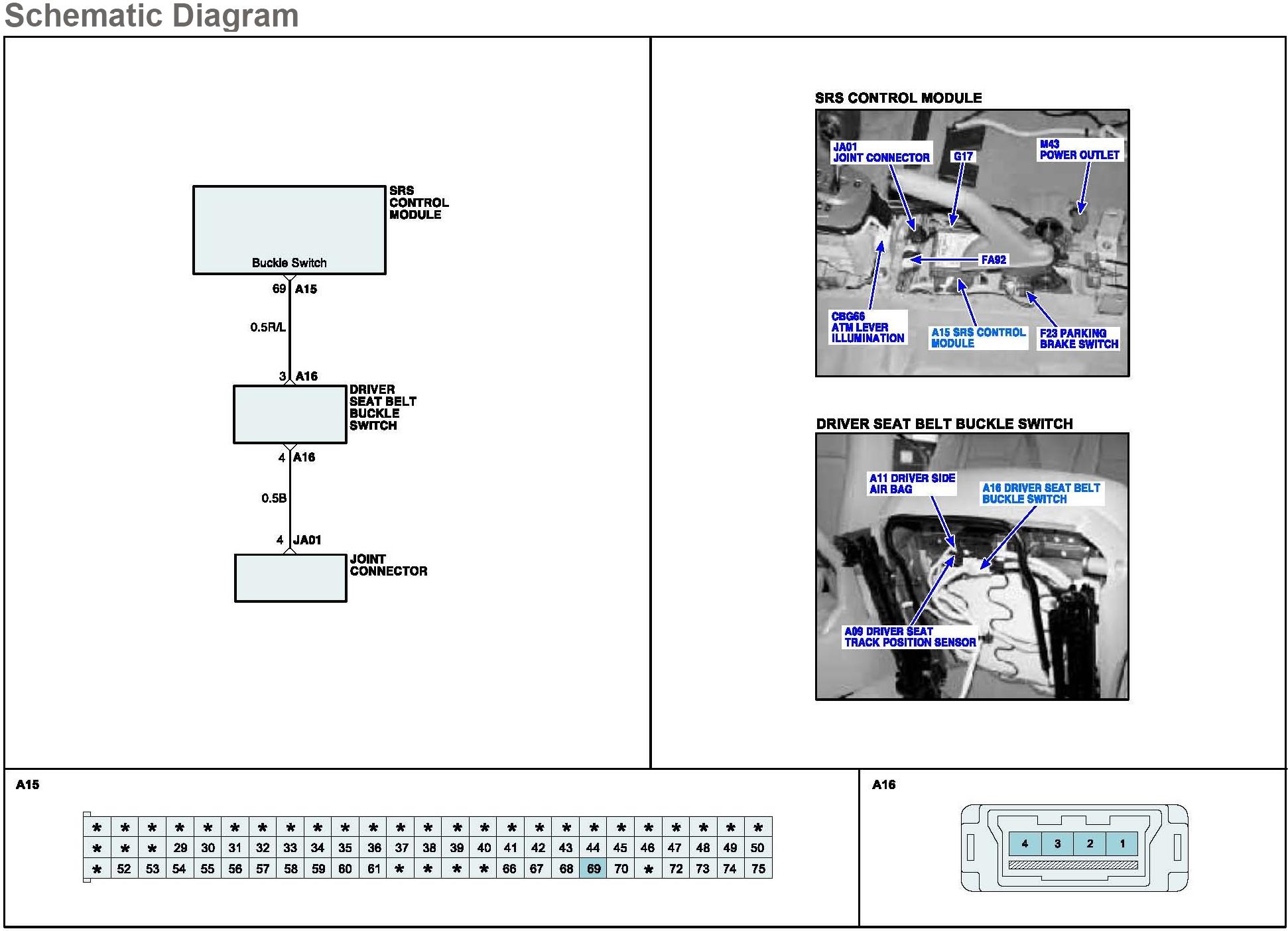

Schematic Diagram:

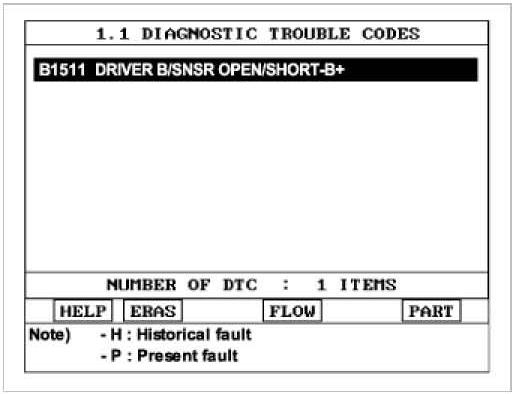

Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.






5. Is DTC present problem?

YES
a. Go to "W/Harness Inspection" procedure.

NO
a. Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
b. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

YES
a. Repair as necessary and then go to "Verification of Vehicle Repair" procedure.

NO
a. Go to "Main harness Circuit Inspection" procedure.

Main harness Circuit Inspection
4. Ignition "OFF".
5. Disconnect the battery (-) terminal cable from the battery, and wait at least one minute.
6. Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.

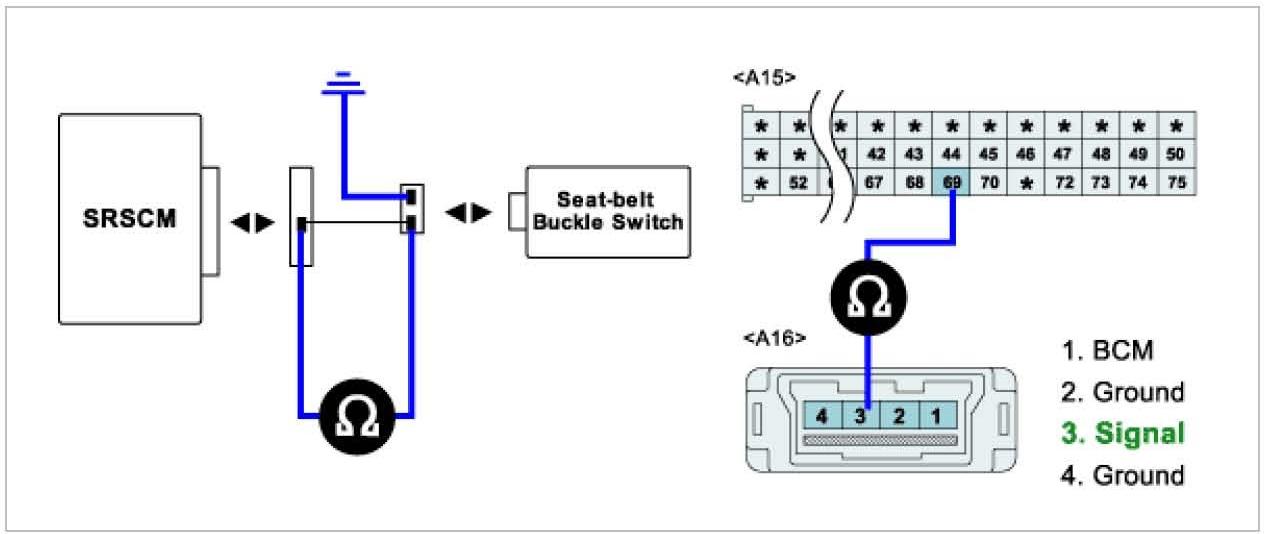

7. Measure resistance value between terminal "69" of main harness of SRSCM (A15) and "3" of harness of SBBS (A16).

a. Specification : 0 ohm






8. Is the measured resistance within specifications?

YES
a. Go to "Main harness circuit inspection" procedure.

NO
a. Substitute the SRS main harness and check for proper operation. If the problem is corrected, replace SRS main harness and then go to "Verification of Vehicle Repair" procedure.

Main harness Circuit Inspection
9. Ignition "OFF".
10. Disconnect the battery (-) terminal cable from the battery, and wait at least one minute.
11. Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.
12. Ignition "ON" & Engine "OFF"

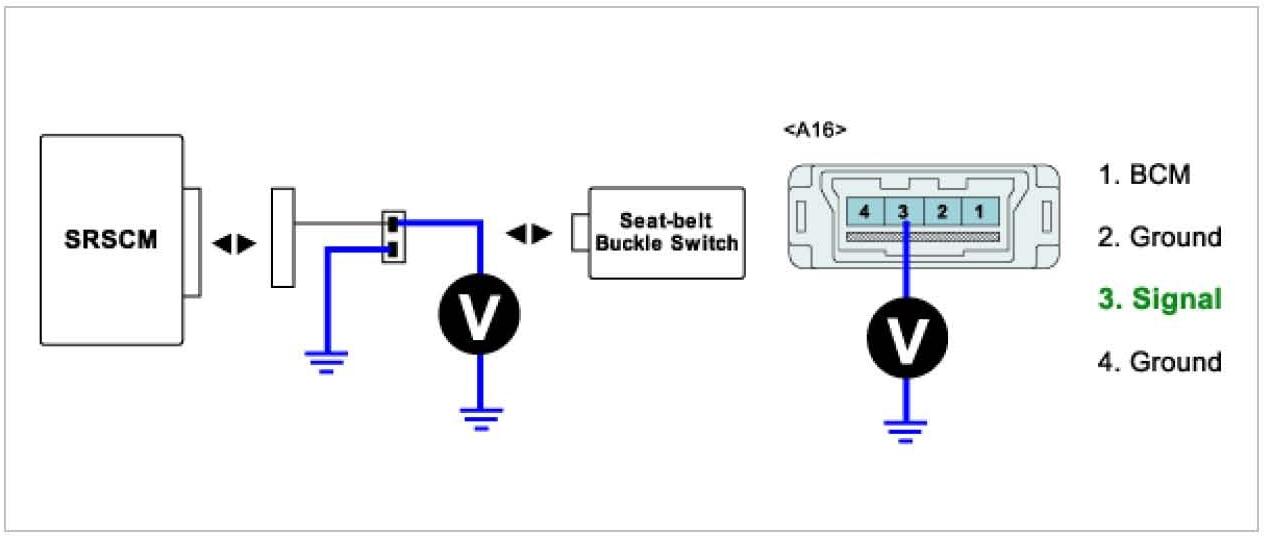

13. Measure voltage between terminal "3" of the Seat-belt Buckle Switch harness connector and chassis ground.

a. Specification : 0 V






14. Is the measured voltage within specifications?

YES
a. Go to "Component Inspection" procedure.

NO
a. Substitute the SRS main harness and check for proper operation. If the problem is corrected, replace SRS main harness and then go to "Verification of Vehicle Repair" procedure.

Component Inspection
1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Ignition "OFF".
3. Disconnect the battery (-) terminal cable from the battery, and wait at least one minute.
4. Disconnect Seat-belt Buckle Switch connector.
5. Substitute the Seat-belt Buckle Switch and check for proper operation.
6. Is DTC present problem?

YES
a. Substitute a known-good SRSCM, and check for proper operation. If the problem is corrected, replace SRSCM and then go to "Verification of Vehicle Repair" procedure.

NO
a. Substitute a known-good Seat-belt Buckle Switch, and check for proper operation. If the problem is corrected, replace Seat-belt Buckle Switch and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scantool and select "Diagnostic Trouble Codes (DTC)" mode
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System performing to specification at this time.
