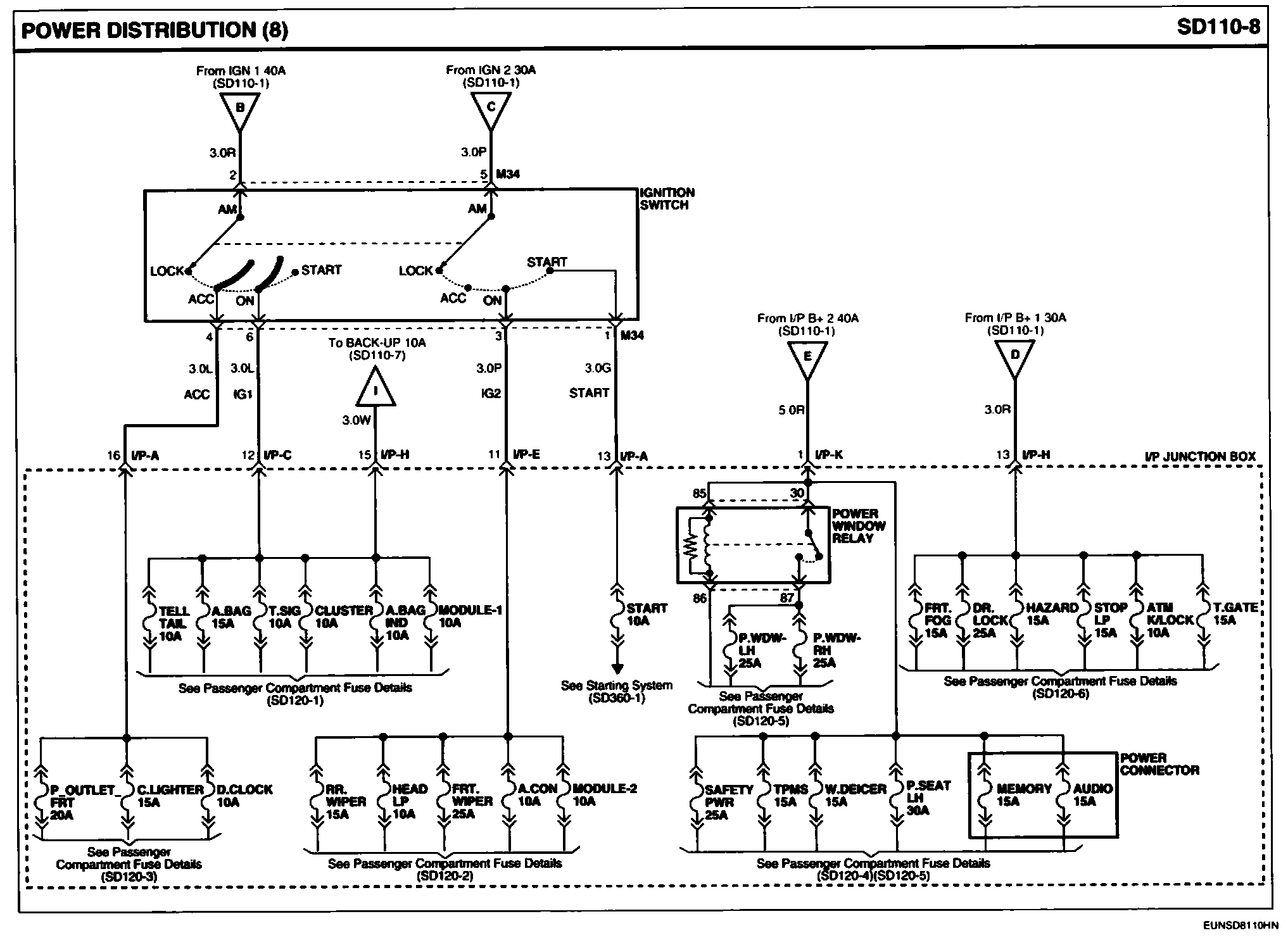

Power Distribution (8)

Power Distribution (8):






Previous Diagram Power Distribution (7)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
