VFS(Variable Force Solenoid) Valve

Removal

1. Remove the battery terminal.
2. Lift the vehicle.
3. Remove the splash shield.
4. Loosen the drain plug and drain the transaxle oil.

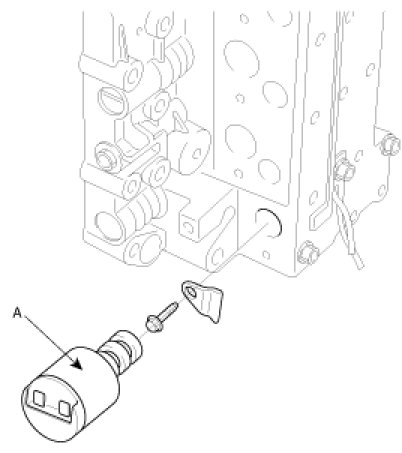

5. Remove the oil pan.




6. Disconnect the VFS solenoid valve connector.
7. Remove the solenoid valve assembly(A).





Installation

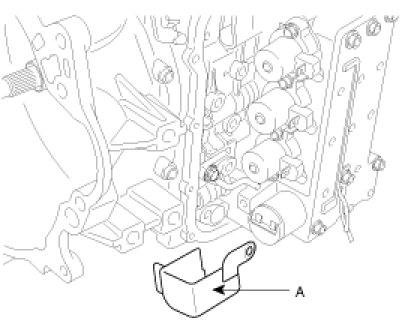

1. Install the solenoid valve(A).

CAUTION:
Apply the ATF oil or White Vaseline to the O-ring not to be damaged.




2. Connect the solenoid valve connector to the valve body.

CAUTION:
When connecting the solenoid valve connector, check the connector for rust, dirt, or oil, then reconnect it.




3. Continue to apply liquid gasket at application points at the oil pan with Dia. 2.5mm (0.098in) thickness.

Liquid gasket Part name : Three bond 1281B





4. Tighten the mounting bolt with the specified torque after installing the oil pan.

TORQUE :
13 - 15Nm(1.3 - 1.5kgf.m, 9.4 - 10.8lb-ft)


5. Install the drain plug and refill the transaxle fluid.

TORQUE :
40 - 50Nm(4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)


6. Install the splash shield.
7. Lower the vehicle and install the battery terminal.
