Manifold Pressure/Vacuum Sensor: Specifications





SPECIFICATION

SENSORS

MANIFOLD ABSOLUTE PRESSURE SENSOR (MAPS)

- Type: Piezo-resistive pressure type

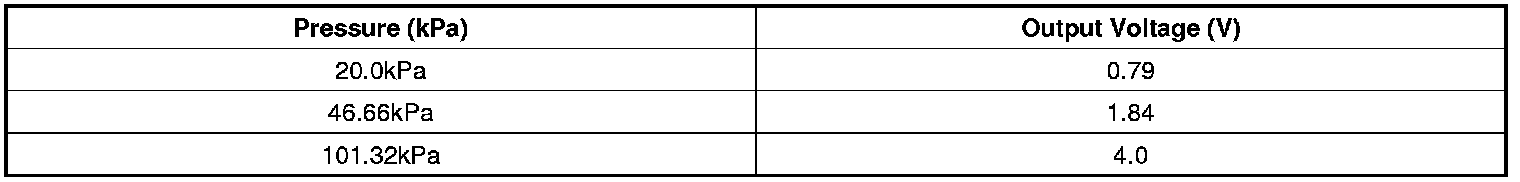

- Specification
