Overhead Console Lamp

REMOVAL

1. Disconnect the negative (-) battery terminal.

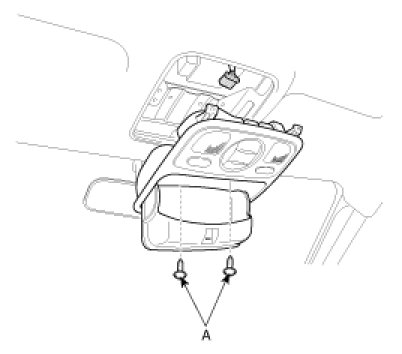

2. Remove 2 screws after removing (A) the lens by using a removal tool.

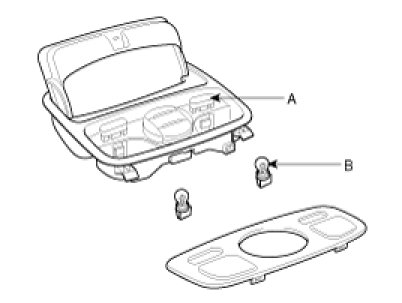

3. Disconnect the sunroof switch connector and lamp connector and then remove the overhead console (A) lamp (B).






INSTALLATION

1. Install the overhead console lamp after connecting the sunroof switch connector and lamp connector.
2. Install the lens after tightening 2 screws.
