P0650
P0650General Description
The Malfunction Indicator Lamp (MIL), which is located in the instrument cluster, comes on to notify the driver that there may be a problem with the vehicle and that service is needed. Immediately after the ignition switch turns on, the malfunction indicator lamp is lit to indicate that the MIL operates normally and goes off after starting
DTC Description
Checking input signal of engine check lamp every 10 sec. under detecting condition, if open, or short to battery or ground is detected for more than 5 sec., PCM sets P0650.

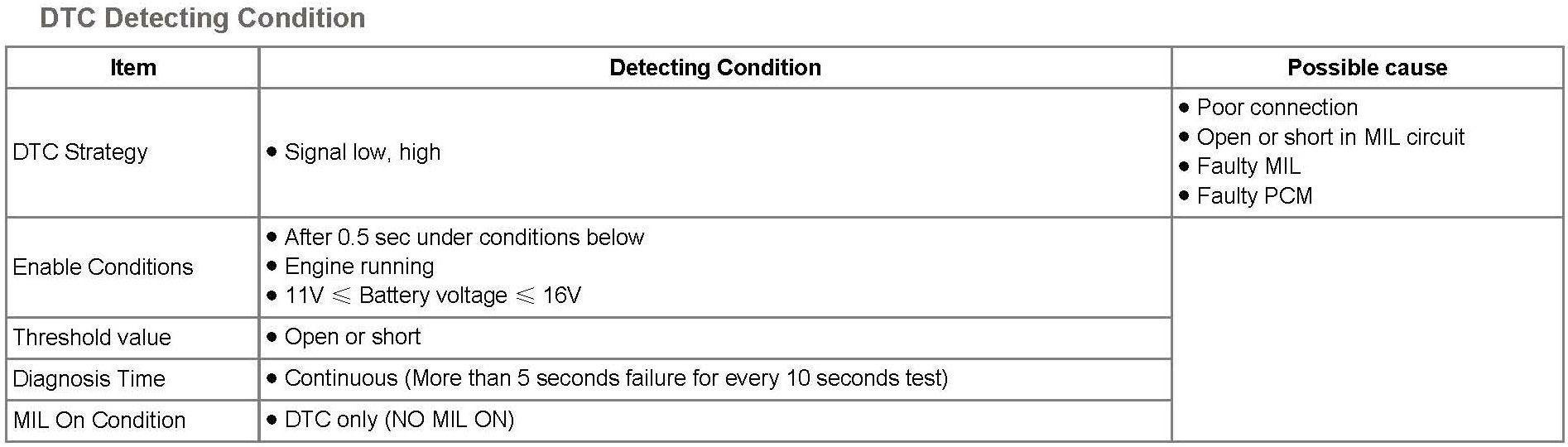

DTC Detecting Condition:

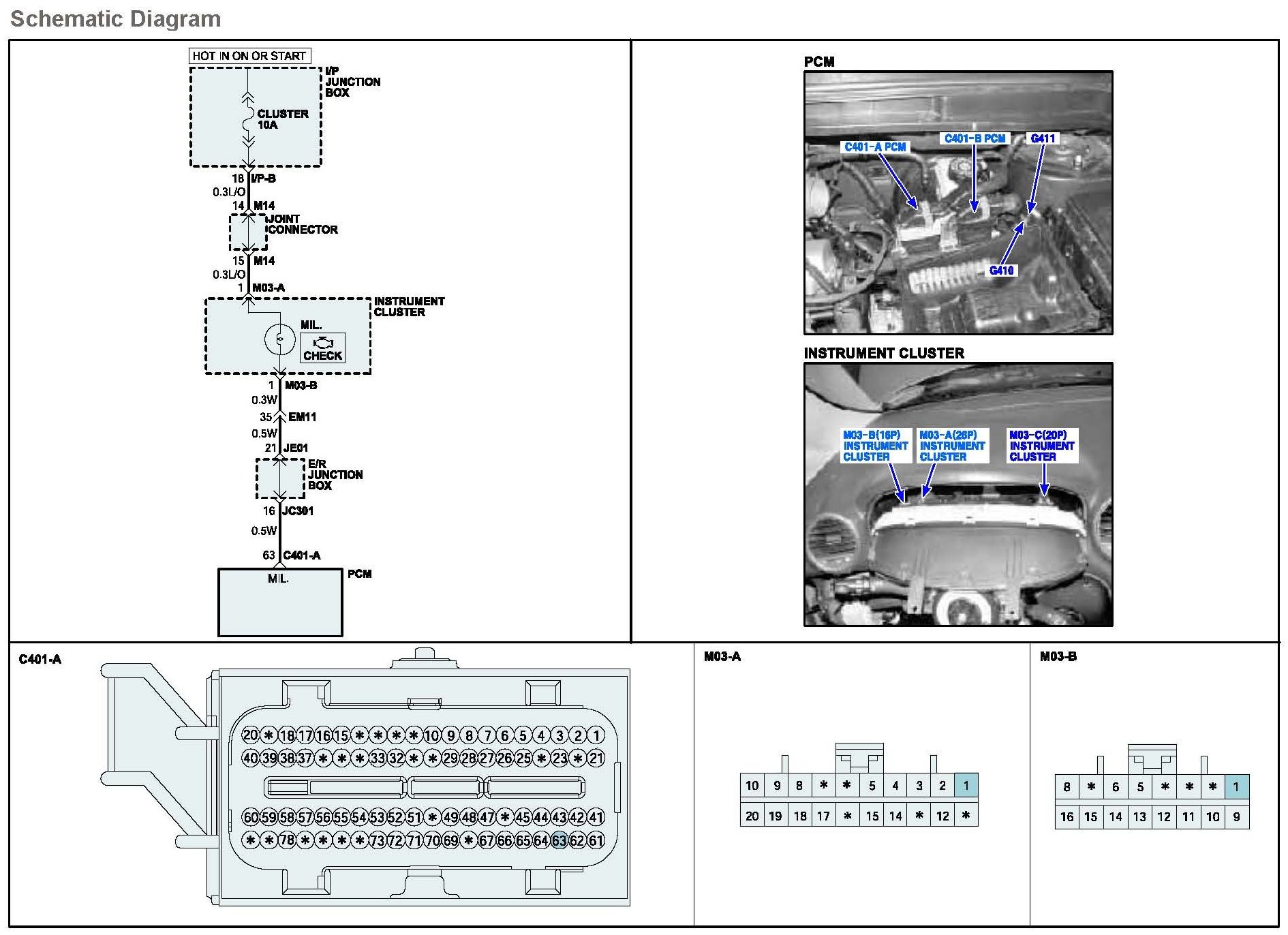

Schematic Diagram:
Monitor DTC Status
1. Check DTC Status
1. Connect scantool to Data Link Connector(DLC).
2. IG "ON".

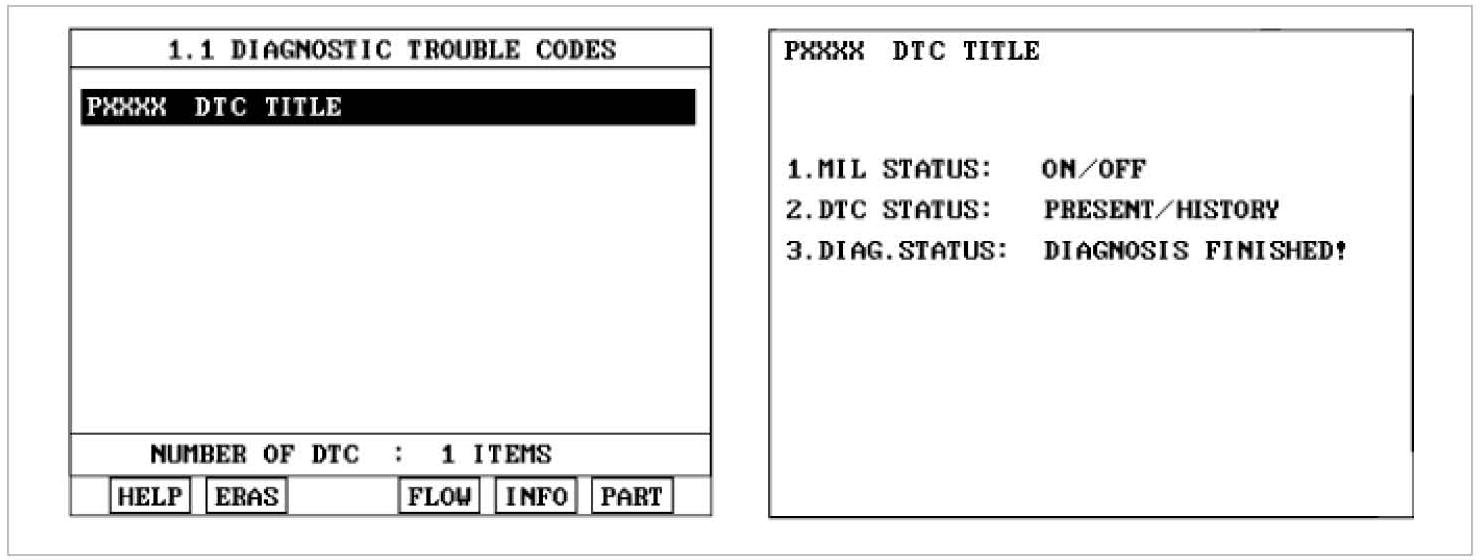

3. Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.
5. Is parameter displayed "Present fault"?
YES
a. Go to "Terminal and Connector inspection" procedure.
NO
a. Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.
Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES - Repair as necessary and go to "Verification of Vehicle Repair" procedure
NO - Go to "Power Circuit Inspection" procedure.
Power Supply Circuit Inspection
1. IG "OFF" and disconnect Instrument cluster connector.
2. IG "ON" and ENG "OFF"

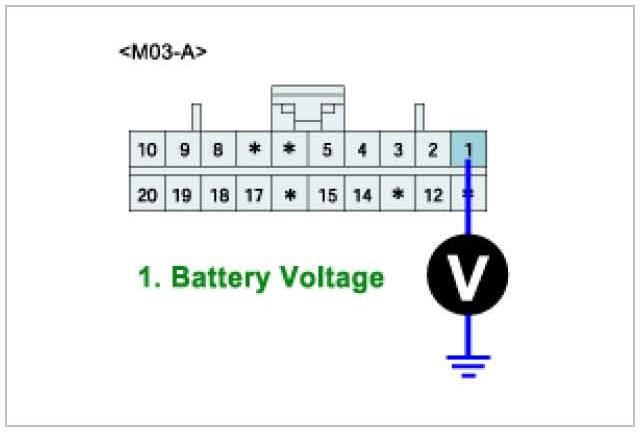

3. Measure voltage between terminal 1 of instrument cluster harness connector and chassis ground.
Specification : Approx. B+
4. Is the measured voltage within specification?
YES - Go to "Control Circuit Inspection" procedure.
NO
- Check fuse between battery and instrument cluster for open or blown-off.
- Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.
Control Circuit Inspection
1. IG "OFF" and disconnect PCM connector.
2. IG "ON" and ENG "OFF"

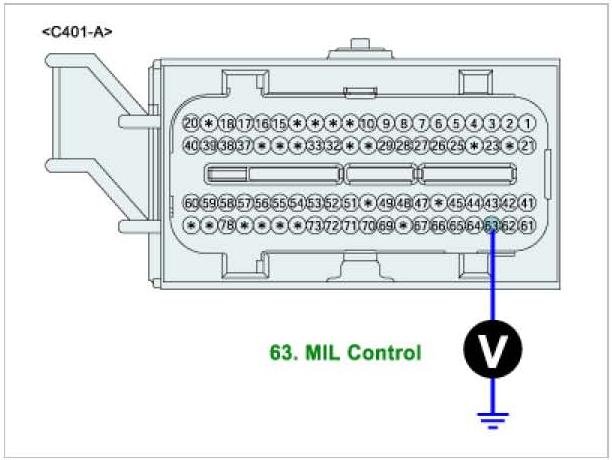

3. Measure voltage between 63 of PCM harness connector and chassis ground.
Specification : Approx. B+
4. Is the measured voltage within specification?
YES - Go to "Component Inspection" procedure.
NO
- Check open in Engine warning lamp's filament.
- Repair open or short to ground in harness, and go to "Verification of Vehicle Repair" procedure.
Component Inspection
1. Check instrument cluster
1. IG "OFF"
2. Substitute with a known - good instrument cluster and check for proper operation.
3. Does it normally operate after replacement?
YES - Replace instrument cluster and go to "Verification of Vehicle Repair" procedure.
NO - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.
CAUTION: There is a memory reset function on scantool that can erase optional components automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM.
Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F5(INFO) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
3. Read "DTC Status" parameter
4. Is parameter displayed "History(Not Present) fault"?
YES - System performing to specification at this time. Clear the DTC
NO - Go to the applicable troubleshooting procedure.
