P0507

P0507

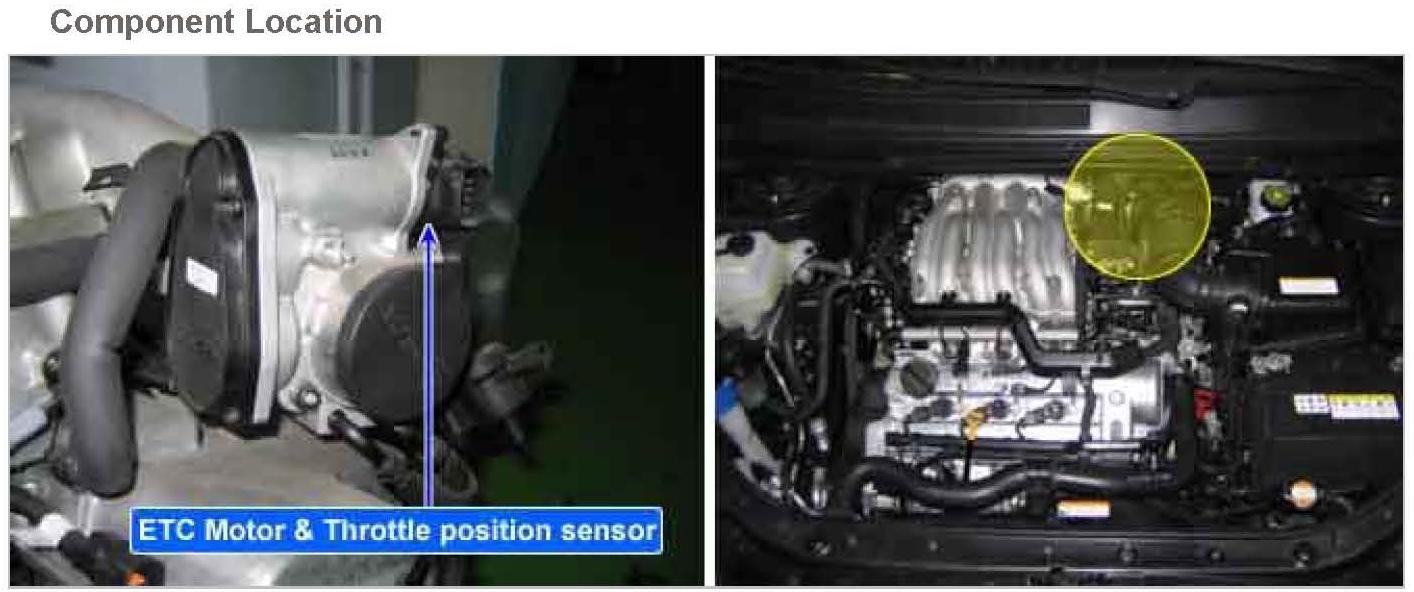

Component Location:

General Description
The idle speed is controlled by the Electrical Throttle Control(ETC) System. ETC system is composed of the throttle motor to operate the throttle valve and the throttle position sensor to detect the opening angle of the throttle valve, the accelerator pedal position sensor to detect the accelerator pedal position and the one valve type throttle body. The ECM controls the throttle motor to provide the proper throttle valve opening angle for the target idle speed.

DTC Description
Checking idle RPM under detecting condition, if if the real idle speed is higher than desired idle speed by 200 RPM over 10 sec., PCM sets P0507. MIL (Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

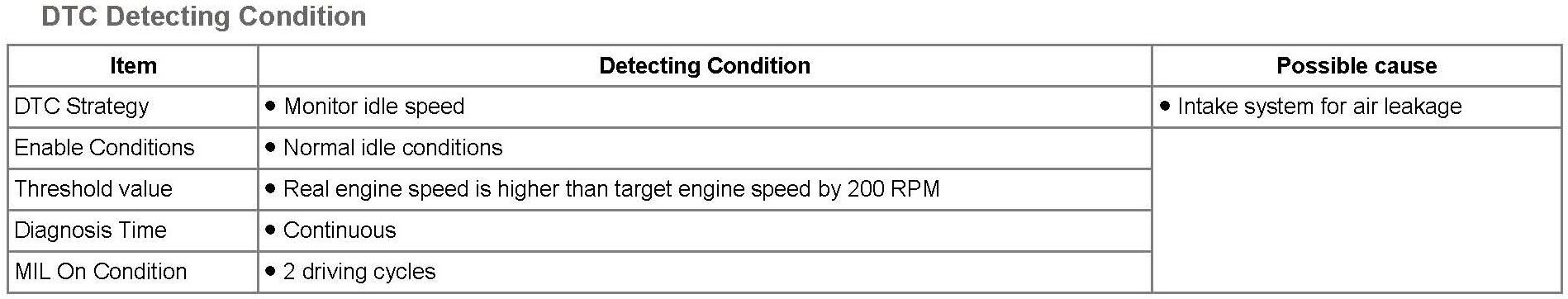

DTC Detecting Condition:

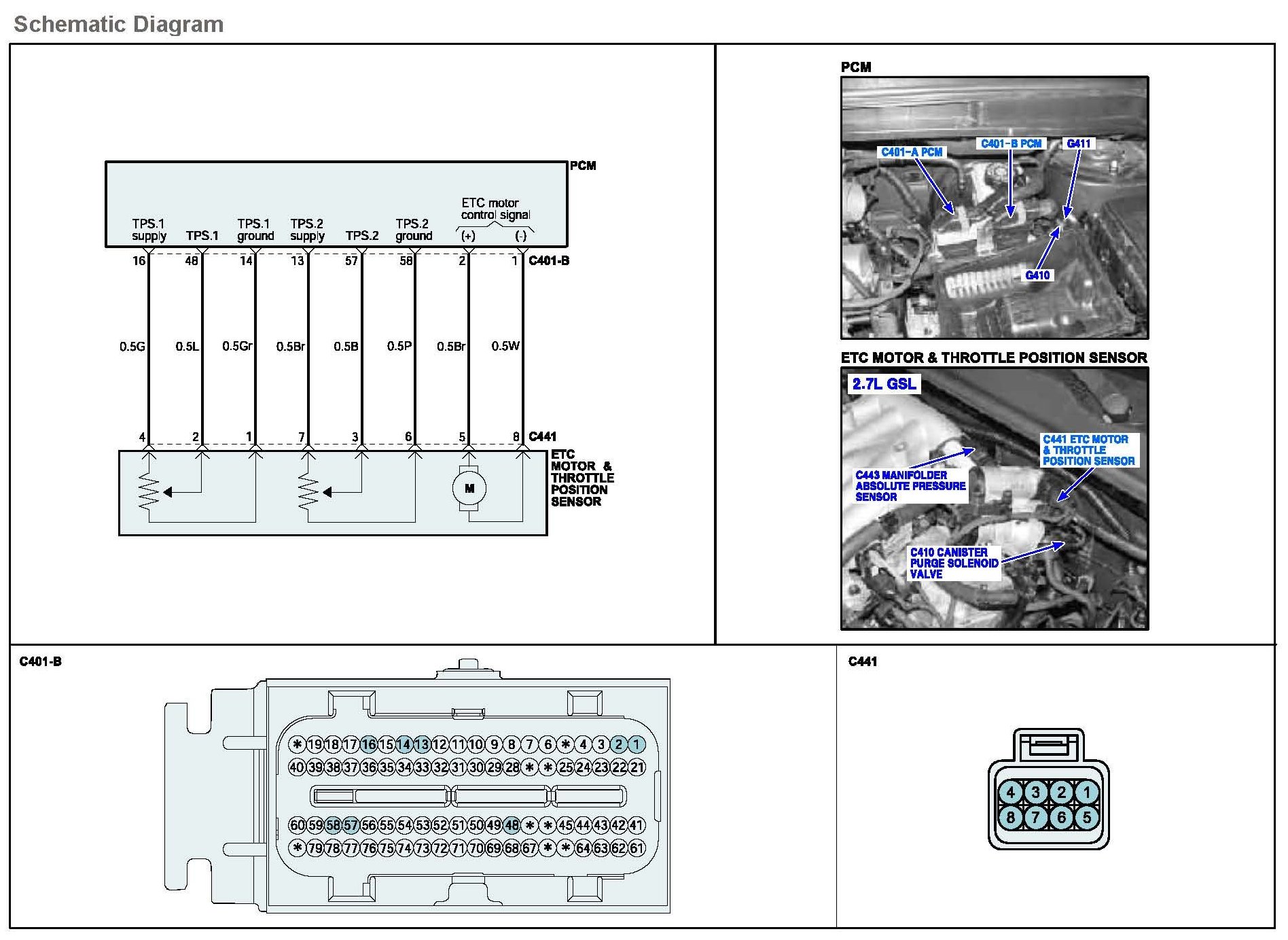

Schematic Diagram:

Monitor DTC Status
1. Monitor DTCs related to HO2S, MAFS, MAPS, ECTS, PCSV, Injector, CVVT items, ETC system, A/C system, or power steering system with scantool.
2. Are DTCs present for the systems indicated above?

YES
a. Do all repairs associated with those codes before proceeding with this procedure.

NO
a. Go to "System Inspection" procedure

System Inspection
1. Check intake system/vapor hoses for air leakage or disconnection
1. Visually/physically inspect the following items:
- Intake system for air leakage
- Vapor hoses for cracks or disconnection

2. Has a problem been found in any of the above areas?

YES - Repair it and go to "Verification of Vehicle Repair" procedure

NO - Clear DTC and Test-drive under enable conditions above-mentioned. After the test, If this DTC is set, go to "Inspection & Repair" procedure. If not, troubleshooting is completed.

Verification of Vehicle Repair
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F5(INFO) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
3. Read "DTC Status" parameter
4. Is parameter displayed "History(Not Present) fault"?

YES - System performing to specification at this time. Clear the DTC

NO - Go to the applicable troubleshooting procedure.
