P0262

P0262

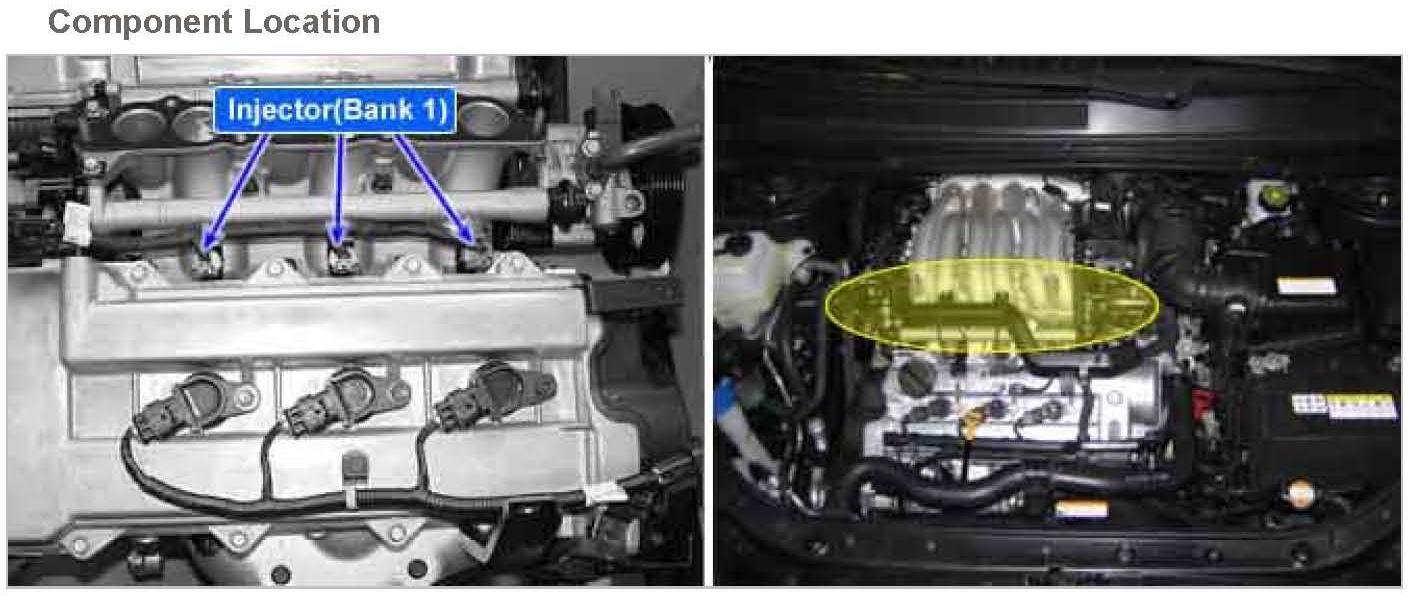

Component Location:






General Description
Based on information from various sensors, the ECM measures the fuel injection amount. The fuel injector is a solenoid-operated valve and the fuel injection amount is controlled by length of time the fuel injector is held open. The ECM controls each injector by grounding the control circuit. When the ECM energizes the injector by grounding the control circuit, the circuit voltage should be low (theoretically 0 V) and the fuel is injected. When the ECM de-energizes the injector by opening the control circuit, the fuel injector is closed and circuit voltage should momentarily peak.

DTC Description
Checking output signals from injectors. Under detecting condition, if an output signal is high, PCM sets P0262. MIL(Malfunction Indication Lamp) turns on when the malfunction lasts till consecutive 2 driving cycle.

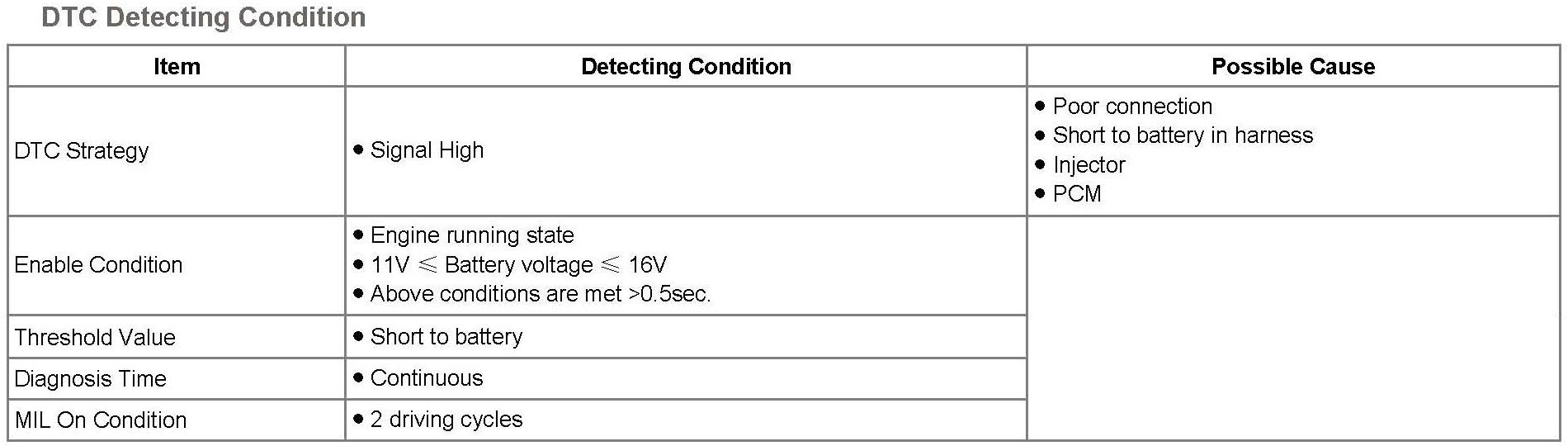

DTC Detecting Condition:

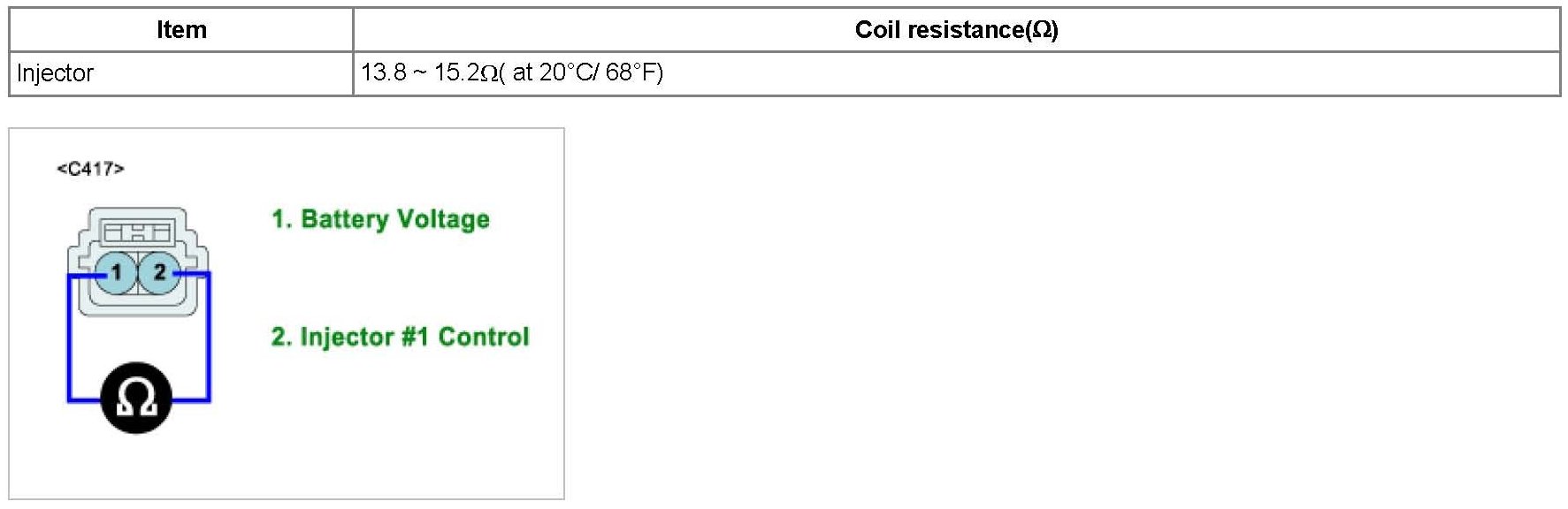

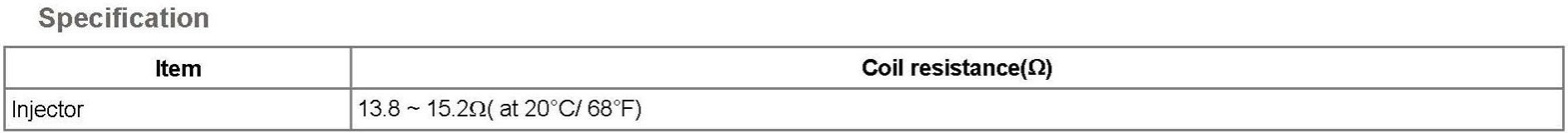

Specification:

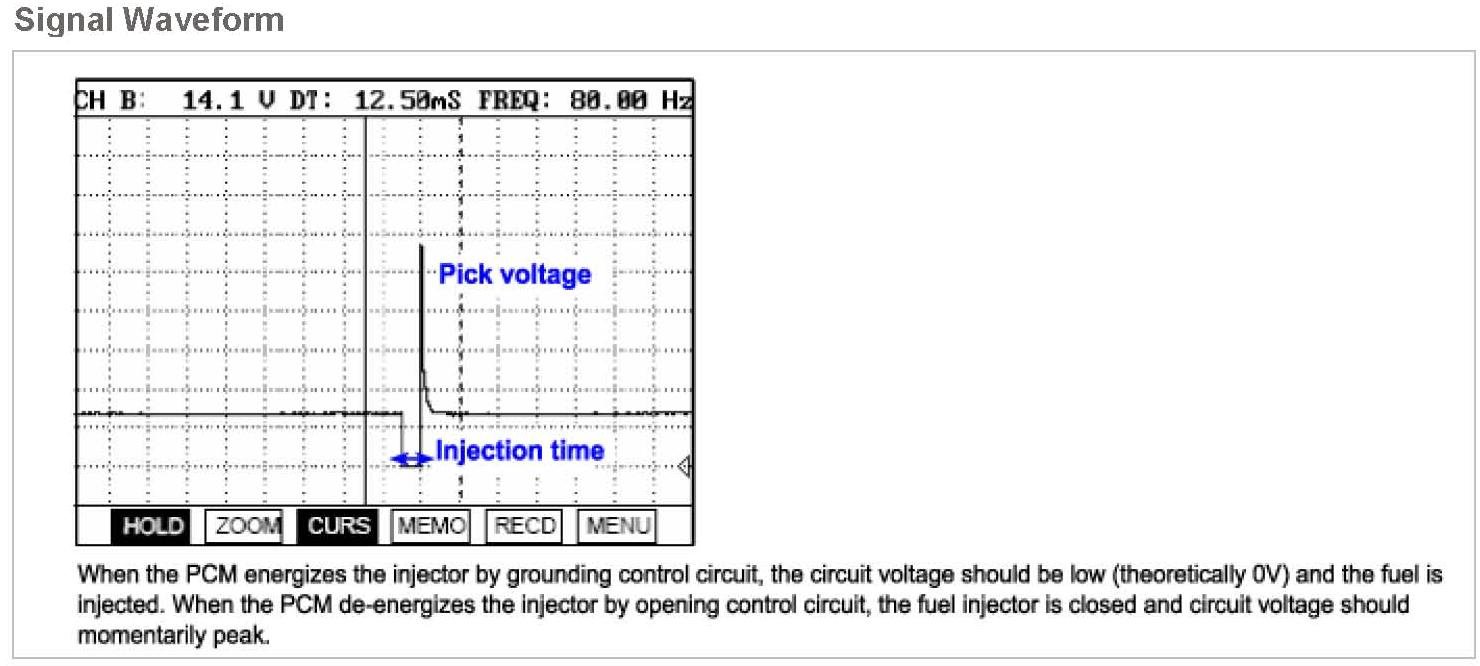

Signal Waveform:

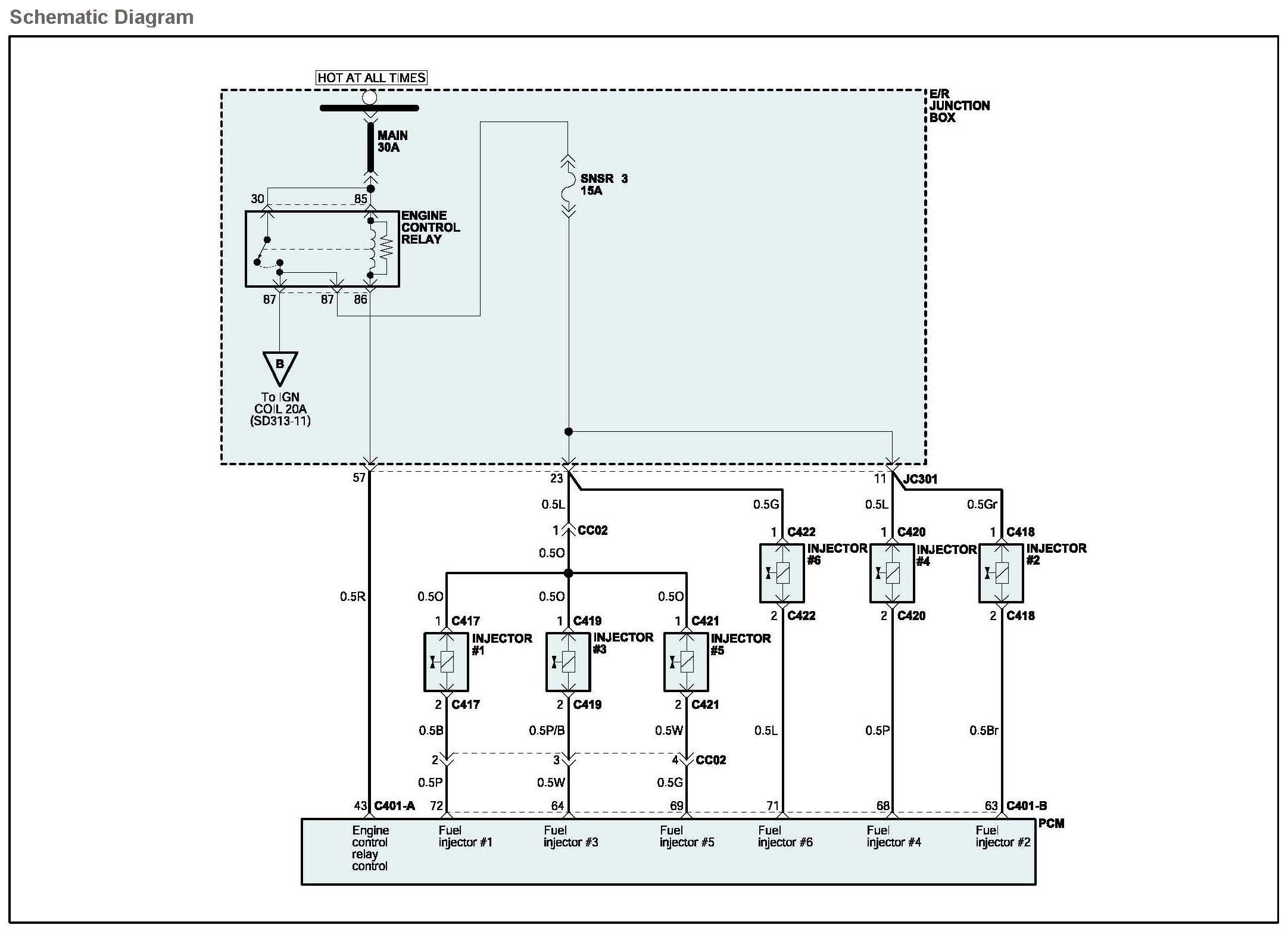

Schematic Diagram (Part 1):

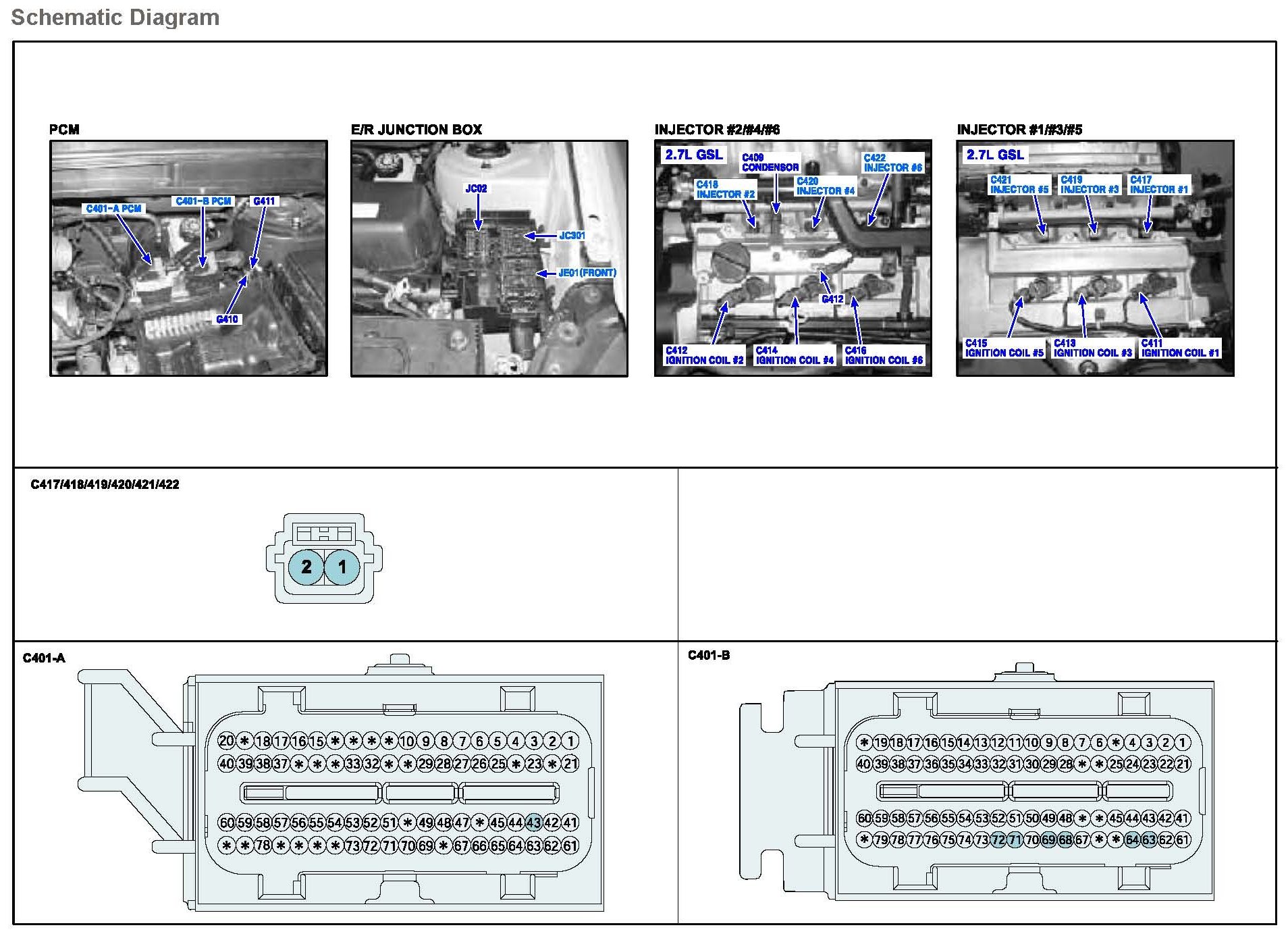

Schematic Diagram (Part 2):






Monitor DTC Status

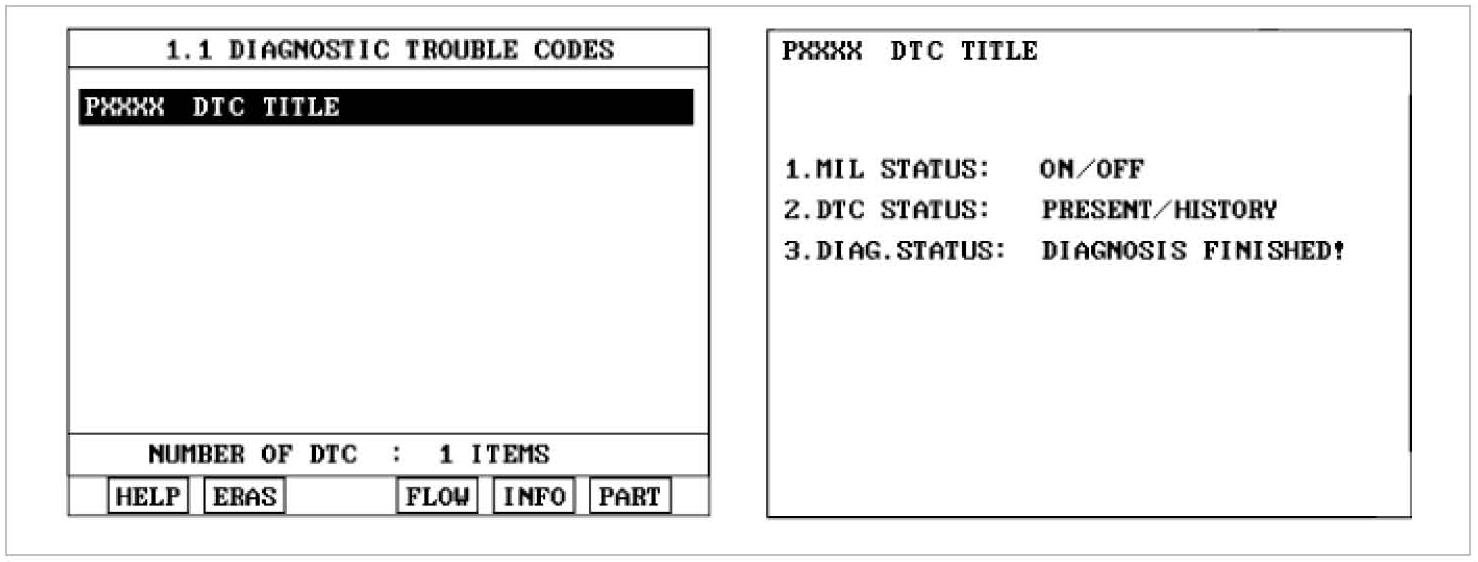

1. Check DTC Status
1. Connect scantool to Data Link Connector(DLC).
2. IG "ON".
3. Select "Diagnostic Trouble Codes(DTCs)" mode, and then Press F5(INFO) to check DTC's information from the DTCs menu
4. Read "DTC Status" parameter.






5. Is parameter displayed "Present fault"?

YES
a. Go to "Terminal and Connector inspection" procedure.

NO
a. Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, ending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Vehicle Repair" procedure.

Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminal condition. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

YES - Repair as necessary and go to "Verification of Vehicle Repair" procedure

NO - Go to "Control Circuit Inspection" procedure.

Control Circuit Inspection
1. Check voltage
1. IG "OFF" and disconnect injector connector.
2. IG "ON" and ENG "OFF"

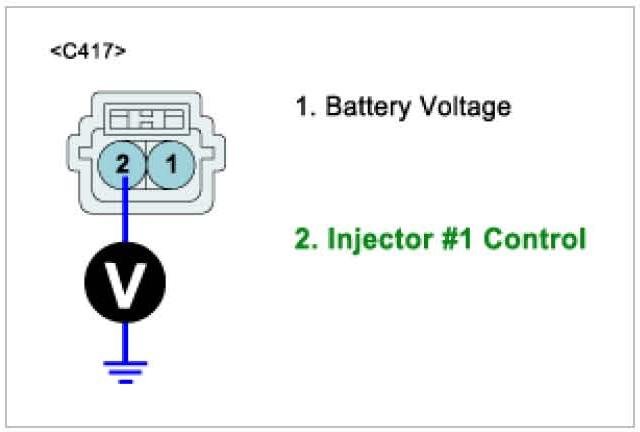

3. Measure voltage between terminal 2 of injector harness connector and chassis ground.

Specification : Approx. 0 V






4. Is the measured voltage within specification?

YES - Go to "Component Inspection" procedure.

NO - Go to "Check short to battery in harness" as follows.

2. Check short to battery in harness
1. IG "OFF" and disconnect injector connector and PCM connector.
2. Measure resistance between terminals 1 and 2 of injector harness connector.

Specification : Below 1 ohm






3. Is the measured resistance within specification?

YES - Go to "Component Inspection" procedure.

NO - Repair short to battery in harness, and go to "Verification of Vehicle Repair" procedure.

Component Inspection
1. Check injector
1. IG "OFF" and disconnect injector connector.

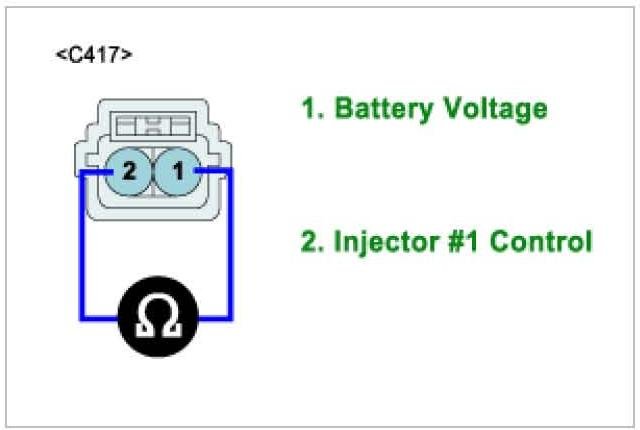

2. Measure resistance between terminals 1 and 2 of injector connector.(Component side)

Specification :






3. Is the measured resistance within specification?

YES - Substitute with a known - good PCM and check for proper operation. If the problem is corrected, replace PCM and go to "Verification of Vehicle Repair" procedure.

NO - Substitute with a known - good injector and check for proper operation. If the problem is corrected, replace injector and go to "Verification of Vehicle Repair" procedure.

CAUTION: There is a memory reset function on scantool that can erase optional components automatically detected and memorized by PCM. Before or after testing PCM on the vehicle, use this function to reuse the PCM.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes(DTCs)" mode
2. Press F5(INFO) and confirm that "DTC Readiness Flag" indicates "Complete". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions
3. Read "DTC Status" parameter
4. Is parameter displayed "History(Not Present) fault"?

YES - System performing to specification at this time. Clear the DTC

NO - Go to the applicable troubleshooting procedure.
