Rear Glass Defogger Switch

INSPECTION

1. Disconnect the negative (-) battery terminal.

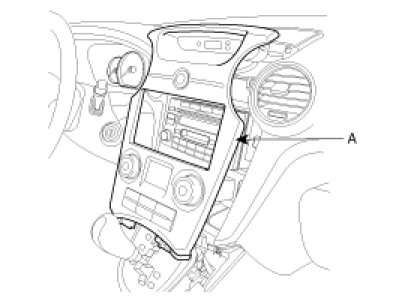

2. Remove the center facia panel (A) and the front console under cover. Take care not to damage fixing clips.

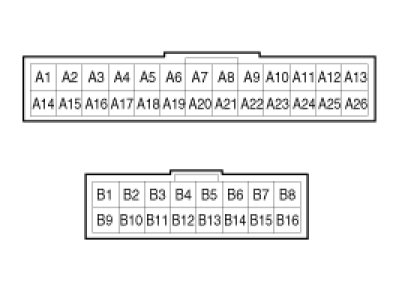

3. Disconnect connectors.
4. Remove the A/C control panel (A) after loosening 4 screws.

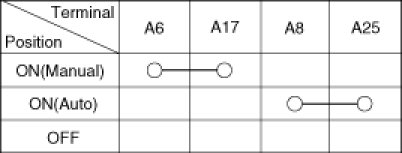

5. Using an ohmmeter, inspect the continuity between the terminals.
