Lateral Accelerometer: Description and Operation

DESCRIPTION

1. The yaw-rate & lateral G sensor is applied for the ESC system.
2. The yaw-rate is the angular velocity, when a vehicle turns a corner, and the lateral G is the acceleration to move a vehicle out of the way when cornering.
3. The sensor is located in the front passenger seat lower floor on vehicle.

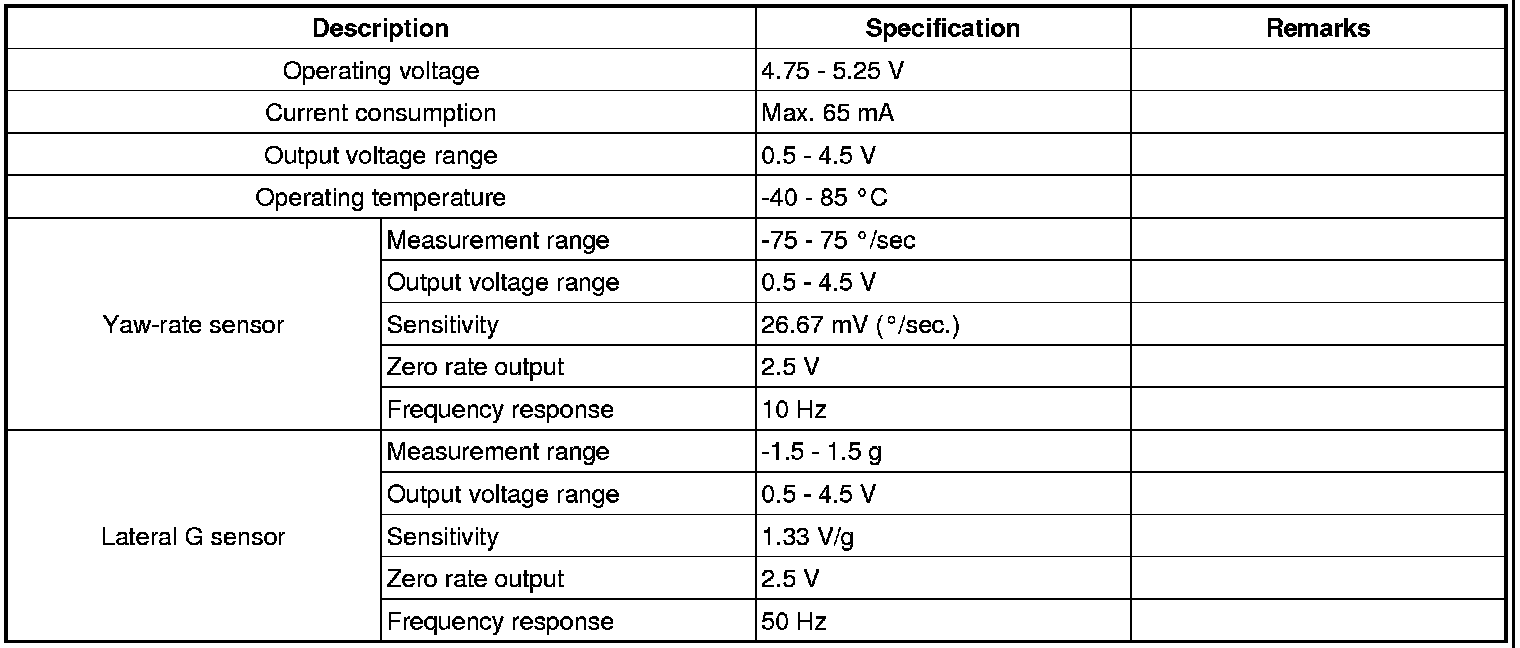

specifications






output characteristic

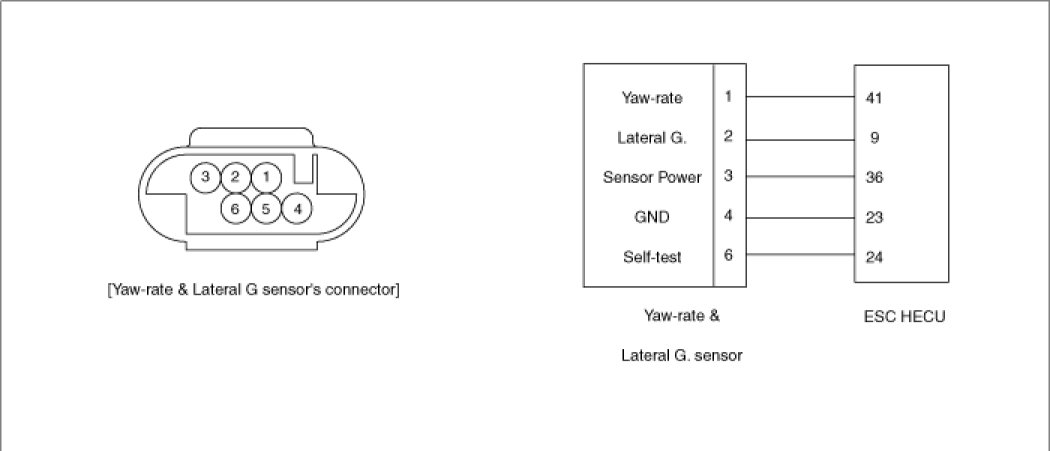

external diagram
