Seat Belt Buckle: Service and Repair

REPLACEMENT

FRONT SEAT BELT BUCKLE REPLACEMENT
1. Remove the front seat assembly.
2. Remove the wire harness of buckle from seat.

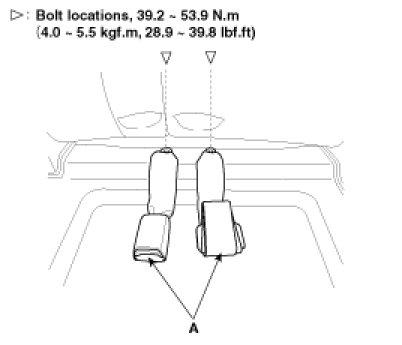

3. Remove the seat belt buckle (A).




4. Installation is the reverse of removal.

SECONDARY SEAT BELT BUCKLE REPLACEMENT
1. Remove the secondary seat assembly
2. Remove the secondary seat cushion.




3. Remove the seat belt buckle (A).
