Pinout Values and Diagnostic Parameters

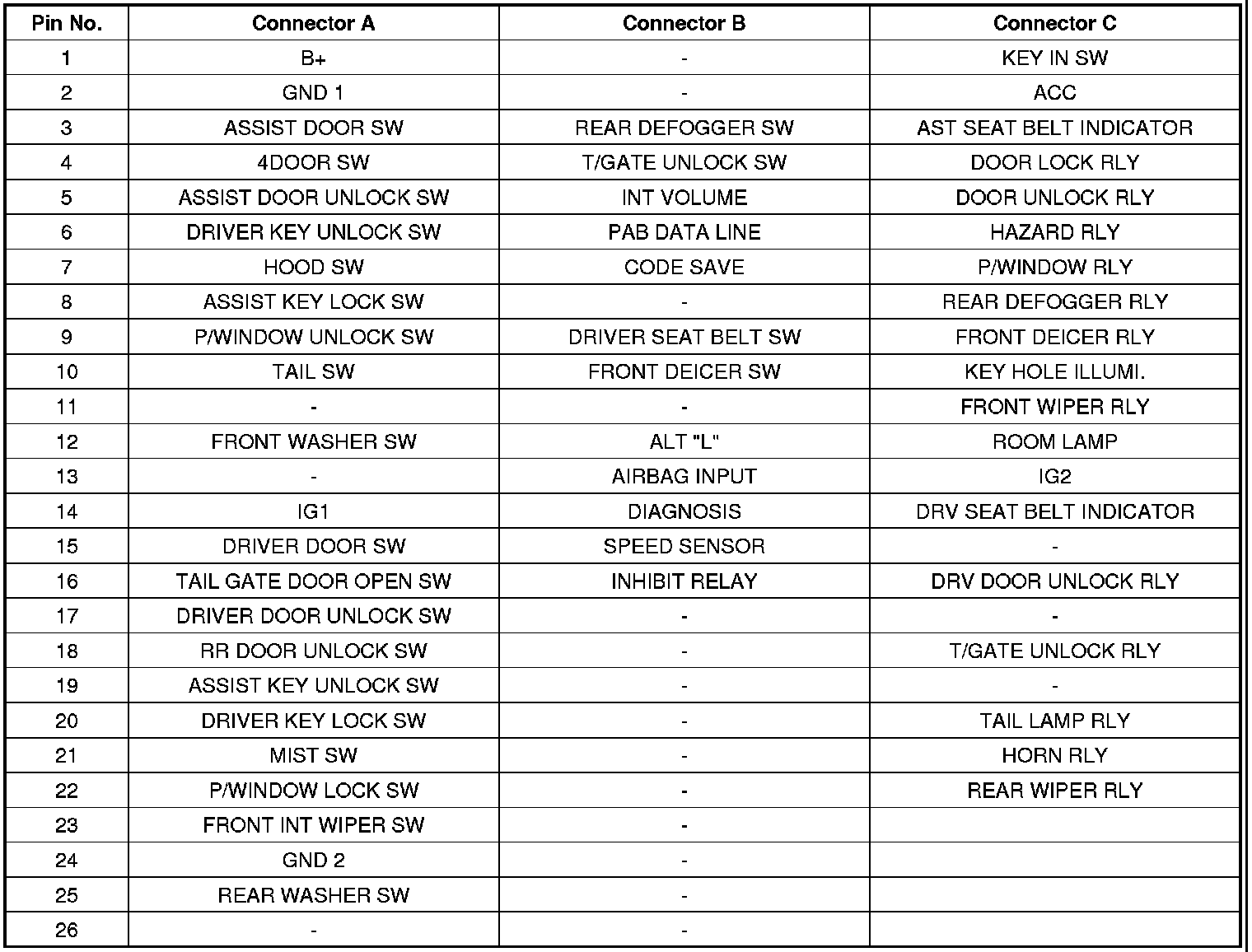

CONNECTOR CONFIGURATIONS

BCM CONNECTORS

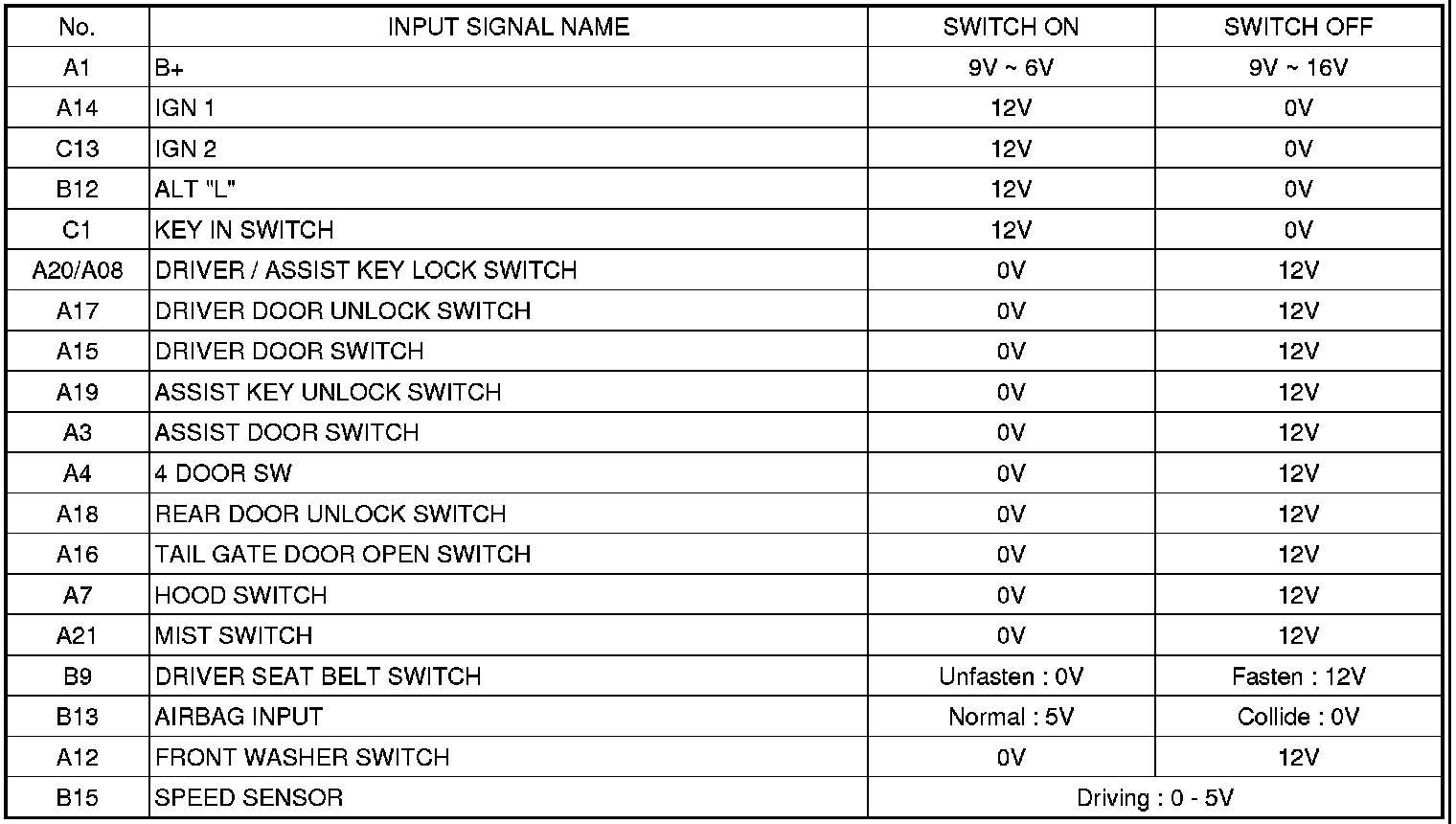

BCM INPUT/OUTPUT SPECIFICATION

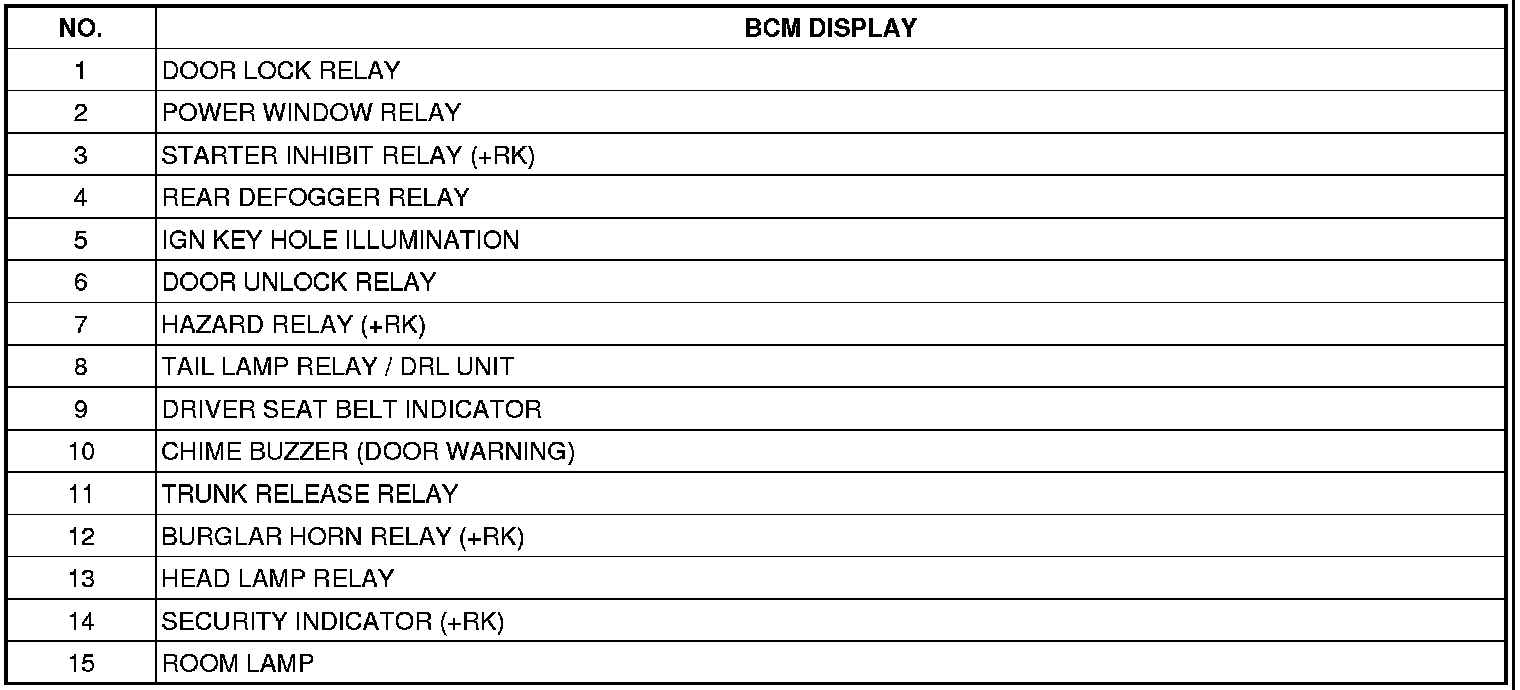

BCM ACTUATOR OPERATION
SCAN tool can operates all actuators controlled by BCM by force.
