Fuel Tank Pressure Sensor
>>
Specifications
>>
Fuel System
Fuel System
SPECIFICATIONS
SENSORS
FUEL TANK PRESSURE SENSOR
(FTPS)
- Type: Piezo-Resistive Pressure Sensor

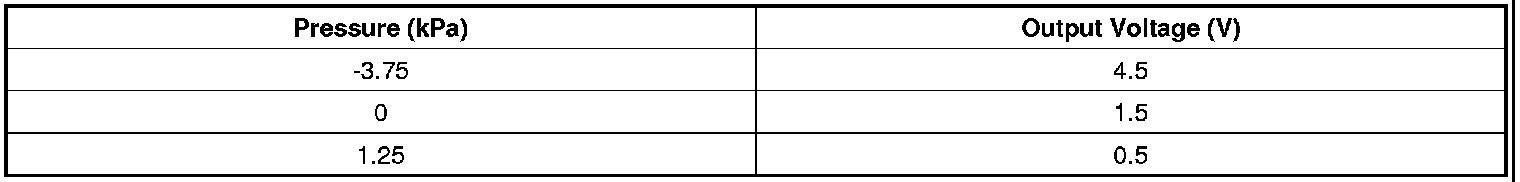

- Specification
