Fuel Filler Neck: Service and Repair

REMOVAL

1. Disconnect the fuel filler hose (A), the leveling hose (B) and the vapor hose (C).




2. Open the fuel filler door and unfasten the filler-neck assembly mounting screws (A).




3. Remove the rear-LH wheel, tire, and the inner wheel house.

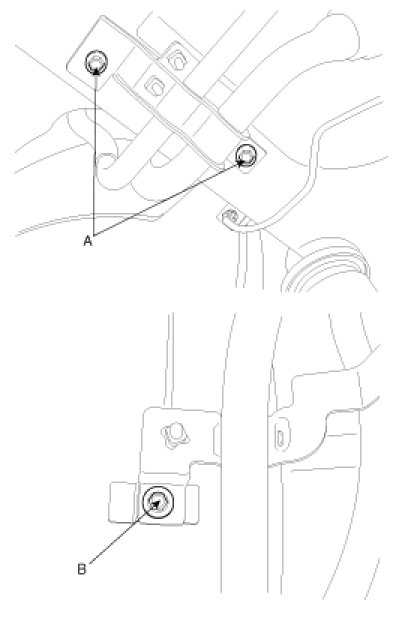

4. Remove the bracket mounting bolts (A,B) and remove the filler-neck assembly.






INSTALLATION

1. Installation is reverse of removal.
