Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

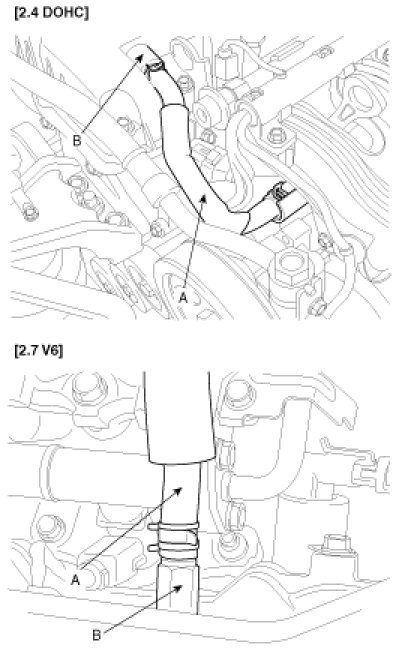

1. Disconnect the vacuum hose (A) and remove the PCV valve (B).






INSTALLATION

Install the PCV valve and tighten to the specified torque.

PCV Valve installation : 7.8 - 11.8 Nm (0.8 - 1.2 kgf-m, 5.8 - 8.7lbf-ft)
