Evaporative Emission Control Canister: Service and Repair

REMOVAL

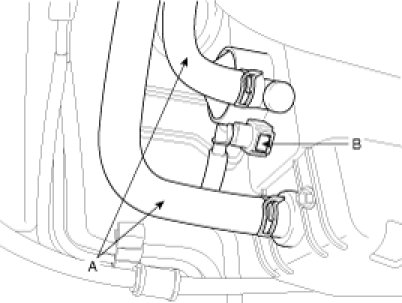

1. Disconnect the vacuum hoses (A) and the vacuum tube quick-connector (B).

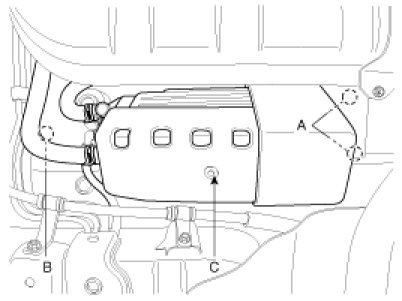

2. Unscrew the canister mounting bolts (A) and nut (B), and then remove the canister (C) from the vehicle.






INSTALLATION

1. Installation is in reverse order of removal.
