Reassembly

REASSEMBLY

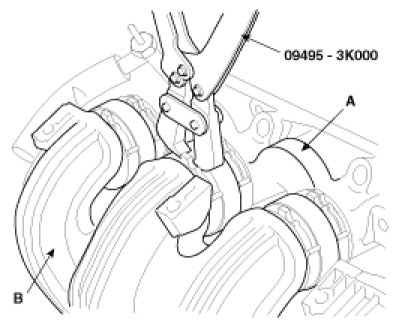

1. Using the SST(09495-3K000) clamp the stub manifold(A) and the inlet manifold(B) with the connection hose.

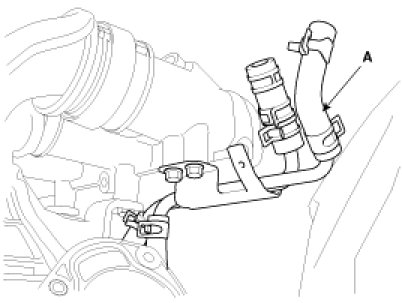

2. Install the purge/vacuum pipe and hose assembly(A).

Tightening torque :
9.8 - 11.8 Nm(1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)




3. Install the throttle body assembly.

Tightening torque :
7.8 - 9.8 Nm(0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)
