Rear Pillar Trim Replacement

REPLACEMENT

REAR PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the luggage side trim.

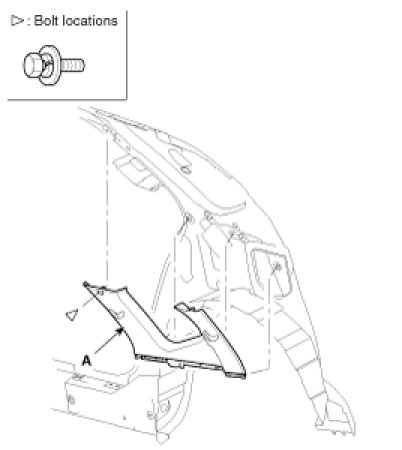

2. Remove the rear pillar trim (A).




3. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
