Scuff Plate: Service and Repair

REPLACEMENT

DOOR SCUFF TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

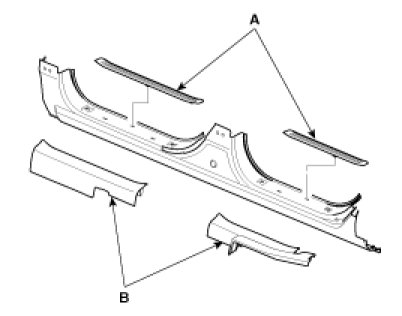

1. Remove the front door scuff trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.
