Crash Pad Replacement

REPLACEMENT

NOTE:
- When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Take care not to scratch the crash pad and related parts.

1. Tilt the steering column down.

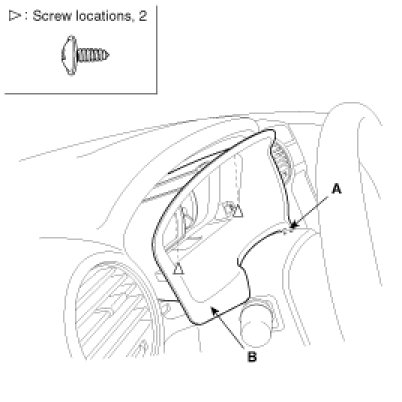

2. After disconnecting the trip sensor connector (A), remove the cluster facia panel (B).

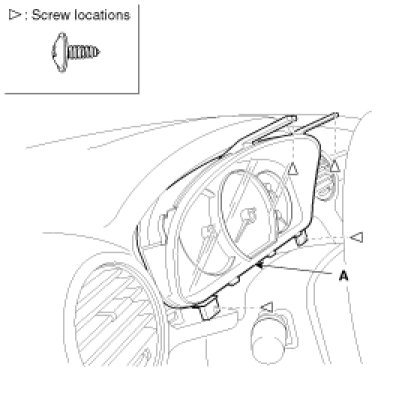

3. After loosening the mounting screws, then remove the cluster facia (A).




4. Installation is the reverse the removal.

NOTE:
Make sure the connector is plugged in properly.

CRASH PAD REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the following items.
A. Front seat.
B. Cluster fascia panel, cluster.
C. Audio assembly.
D. Glove box.
E. Crash pad side cover.
F. Front pillar trim.
2. Remove the photo sensor.

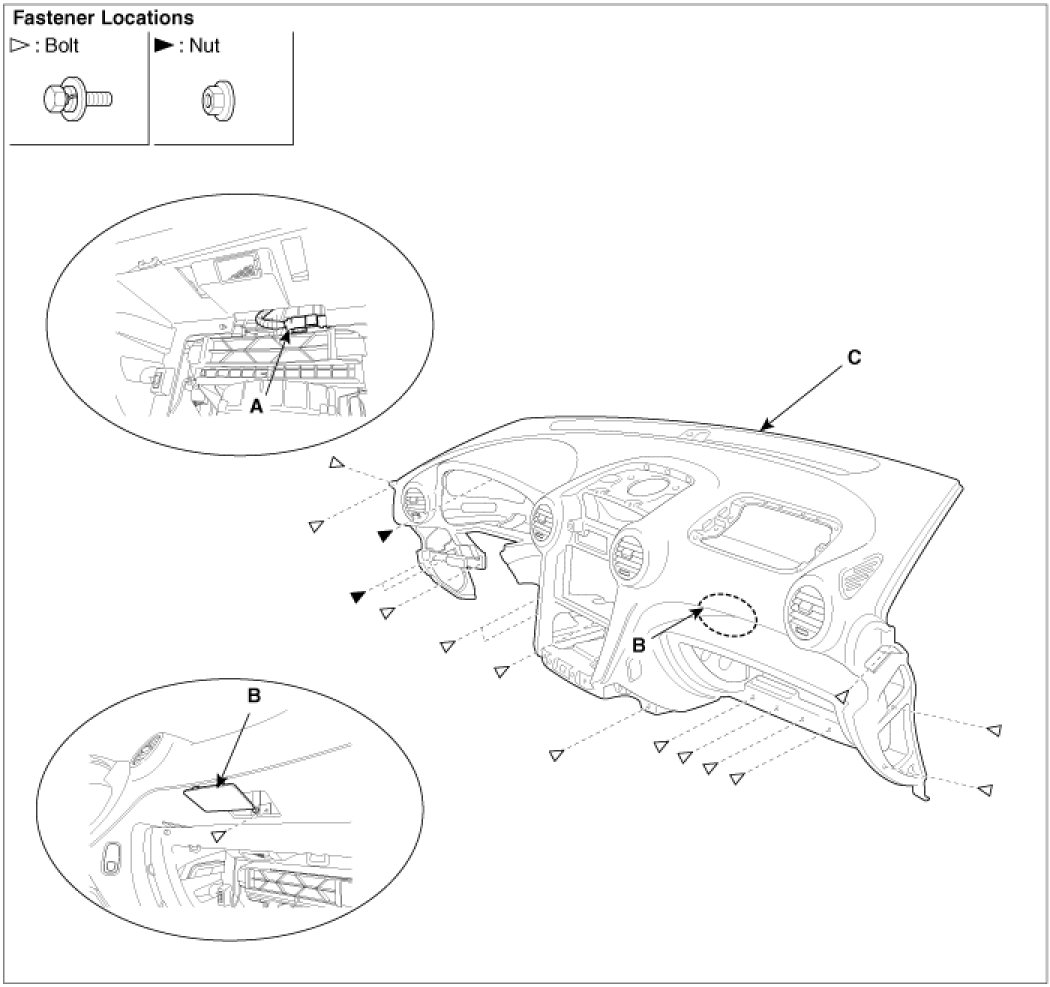

3. Disconnect the passenger`s air bag connector (A).
4. Loosen the bolts and nuts, then remove the crash pad (C).
5. Installation is the reverse of removal.

NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly,
- Enter the anti- theft code for the radio, then enter the customer`s radio station presets.
