Upper Side Moulding / Trim: Service and Repair

REPLACEMENT

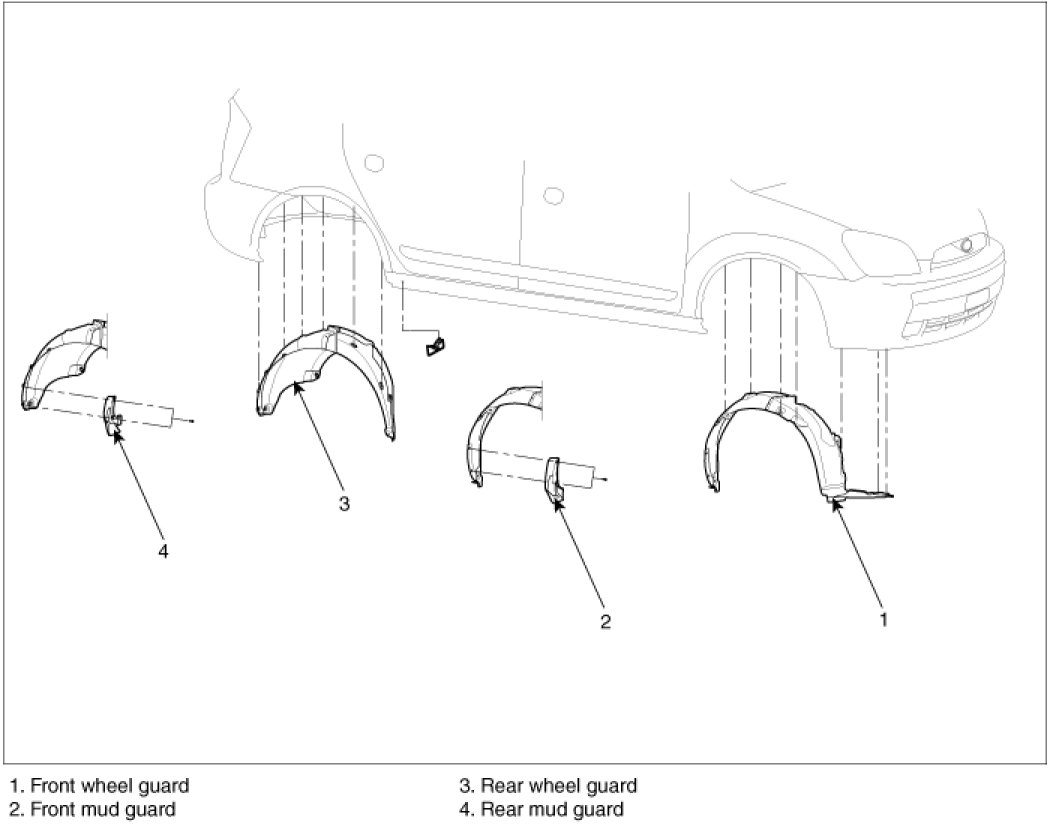

MUD GUARD AND WHEEL GUARD REPLACEMENT

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

1. Remove the wheel guard.
2. Installation is the reverse of removal.

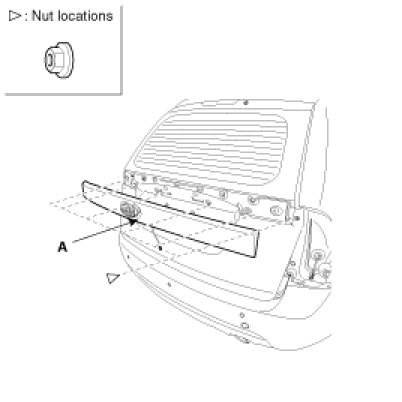

1. Remove the tailgate trim.
2. Remove the tailgate garnish (A).




3. Installation is the reverse of removal.
