Cowl Top Cover








REPLACEMENT

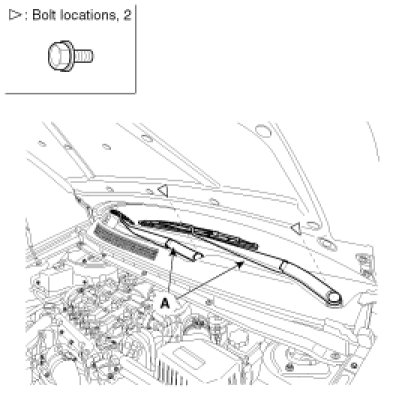

1. Remove the wiper (A).

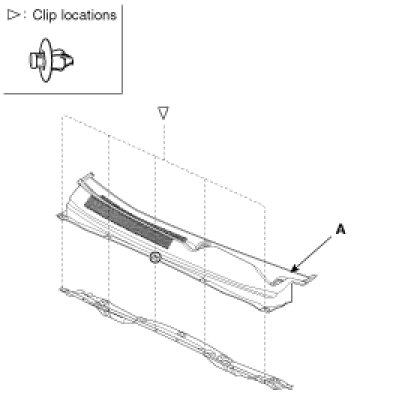

2. Detach the clips, then remove the cowl top cover (A).




3. Installation is the reverse of removal.
