Speakers

REMOVAL

FRONT CENTER SPEAKER
1. Remove the center facia panel.
.

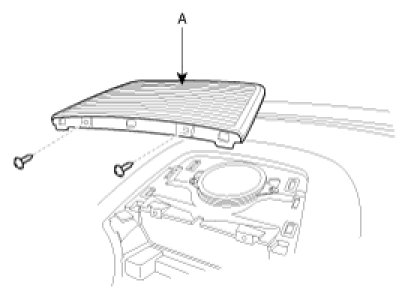

2. Remove the center speaker cover(A) after removing 2 screws.

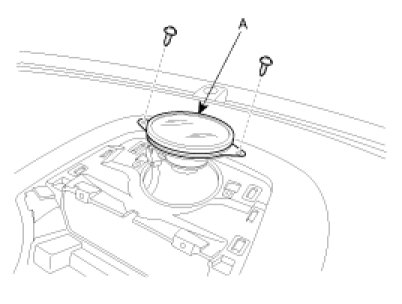

3. Remove the front center speaker (A) after removing 2 screws.





WOOFER SPEAKER
1. Remove the 3rd seat.
.
2. Remove the luggage side trim.

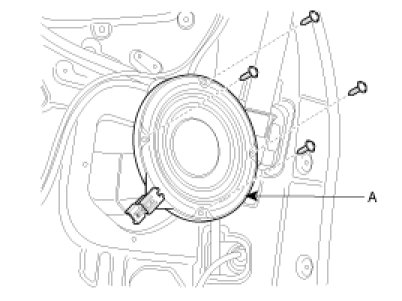

3. Remove the woofer speaker (A) after removing 4 bolts and connector.





TWEETER SPEAKER

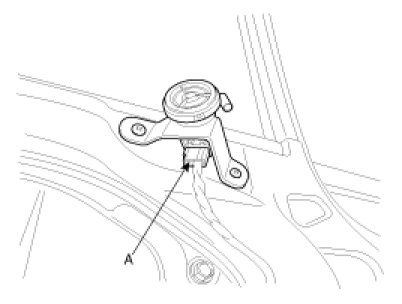

1. Remove the front door trim and connector (A).
.

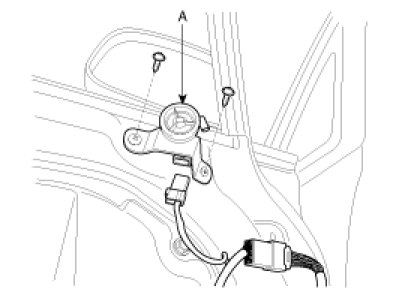

2. Remove the tweeter speaker (A) after removing 2 screws.






INSTALLATION

FRONT CENTER SPEAKER
1. Install the front center speaker.
2. Install the center facia panel and center speaker cover.

WOOFER SPEAKER
1. Install the woofer speaker.
2. Install the luggage side trim and 3rd seat.

TWEETER SPEAKER
1. Install the tweeter speaker after connecting the tweeter speaker connector.
2. Install the front door trim.
