Antenna, Radio: Service and Repair

REMOVAL

ROOF ANTENNA
1. Remove the roof trim.

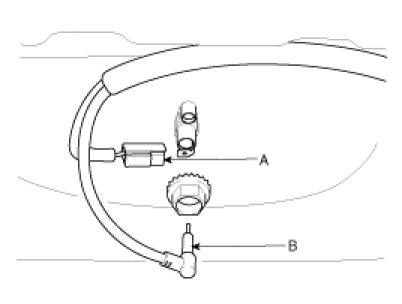

2. Disconnect the 1P power connector (A) and antenna jack (B) from the roof antenna.






INSTALLATION

ROOF ANTENNA
1. Install the roof antenna.
2. Install the rear roof trim.
