P0885

P0885

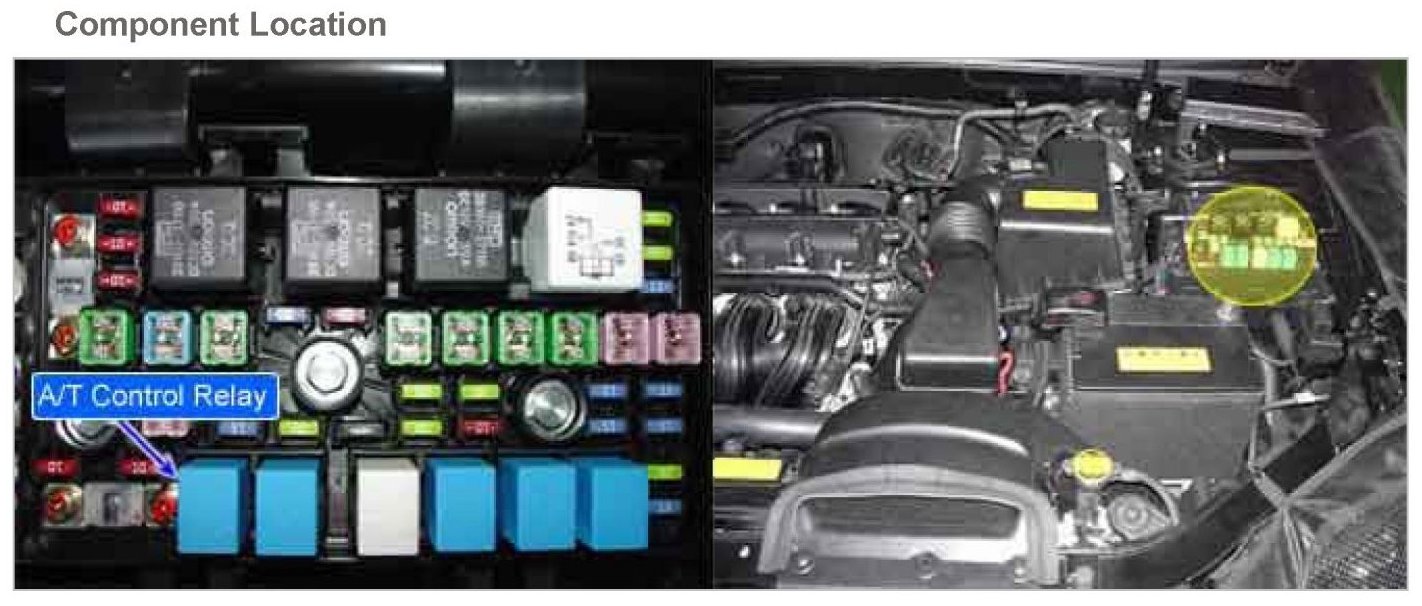

Component Location:

General Description
The HIVEC Automatic Transmission supplies the power to the solenoid valves by way of a control relay. When the TCM sets the relay to ON, the relay operates and the battery power is supplied to all the solenoid valves. When the TCM sets the relay to OFF, all solenoid valve power is shut off and the transmission is held in the 3rd gear position. (Fail Safe Mode)

DTC Description
The TCM checks the A/T control relay signal by monitoring the control signal. If, after the ignition key is turned on, an unexpected voltage value, which is quite a bit lower than battery voltage is detected, the TCM sets this code.

DTC Detecting Condition:

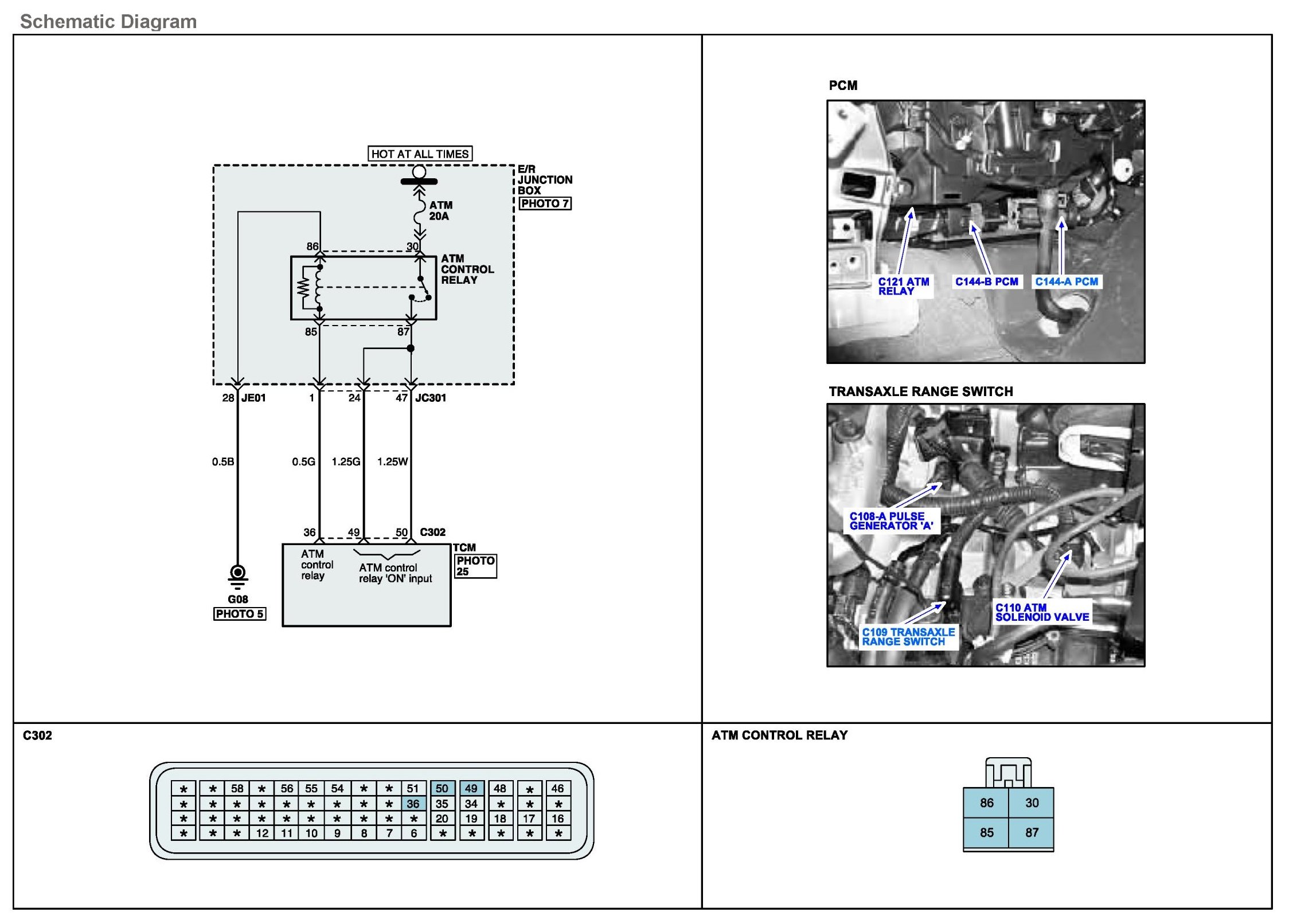

Schematic Diagram:

Monitor Scantool Data
1. Connect scantool to data link connector (DLC)
2. Ignition "ON" & Engine "OFF".
3. Monitor the "A/T CON. RELAY VOLT" parameter on the scantool

Specification : Approx. B+






4. Is A/T RELAY VOLT within specifications?

YES
a. Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM(PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure

NO
a. Go to "W/Harness Inspection" procedure

Terminal and Connector Inspection
1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?

YES
a. Repair as necessary and then go to "Verification of Vehicle Repair" procedure

NO
a. Go to "Power Circuit Inspection" procedure

Power Supply Circuit Inspection
1. Ignition "ON" & Engine "OFF".
2. Disconnect the "A/T CONTROL RELAY" connector

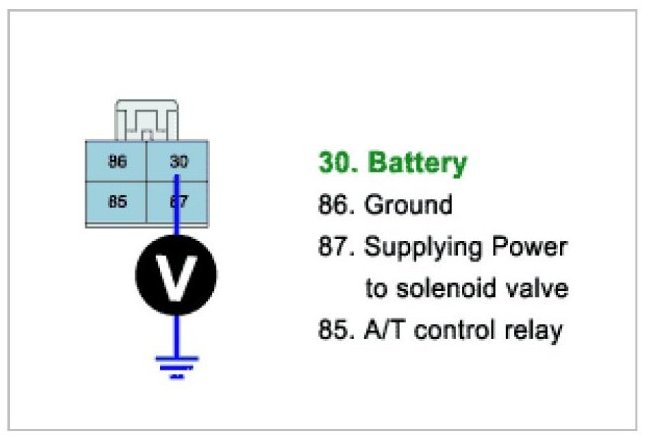

3. Measure the voltage between terminal "30" of the "A/T CONTROL RELAY" harness connector and chassis ground.

Specification : Approx. B+






4. Is voltage within specifications?

YES
a. Go to "Signal Circuit Inspection" procedure

NO
a. Check that A/T - 20 A Fuse in engine room junction is installed or not blown.
b. Check for Open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure

Signal Circuit Inspection

Check A/T Control Relay Harness
1. Ignition "OFF".
2. Disconnect the "A/T CONTROL RELAY" connector

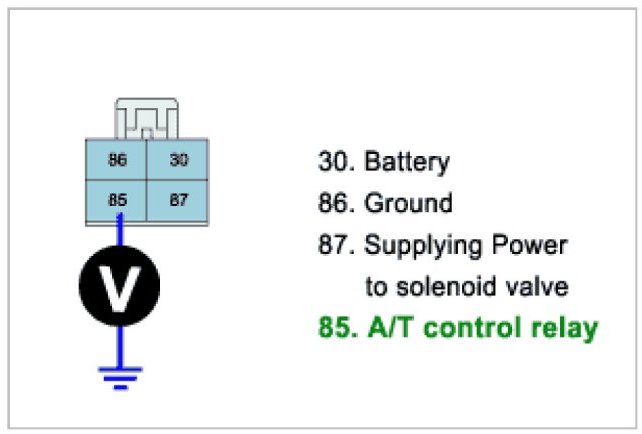

3. Measure the voltage between terminal "86" of the "A/T CONTROL RELAY" harness connector and chassis ground.
4. Turn ignition switch OFF --> ON

Specification : 12 V is measured only for approx. 0.5 sec






5. Is voltage within specifications?

YES
a. Go to "Check Supplying Power to solenoid valve" procedure

NO
a. Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure
b. If signal circuit is OK,Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM and then go to "Verification of Vehicle Repair" procedure.

Check Supplying Power to Solenoid Valve Harness
6. Ignition "OFF".
7. Disconnect the "A/T CONTROL RELAY" and PCM/TCM connector

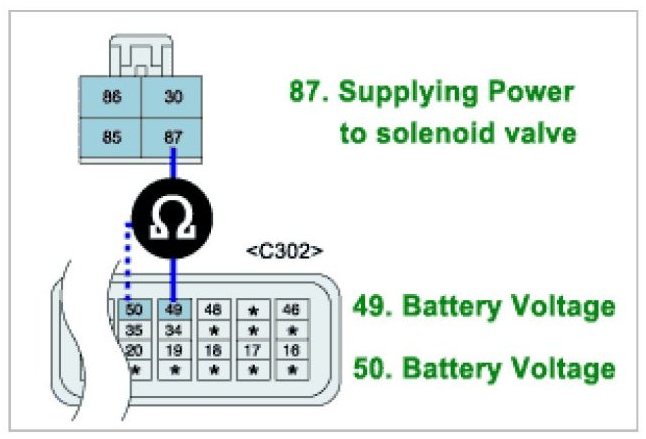

8. Measure the resistance between terminal "87" of the "A/T CONTROL RELAY" harness connector and terminal "49,50" of the PCM/TCM harness connector

Specification : Approx. 0 ohm






9. Is resistance within specifications?

YES
a. Go to "Ground Circuit Inspection" procedure

NO
a. Check that A/T - 20 A Fuse in engine room junction is installed or not blown.
b. Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure

Ground Circuit inspection
1. Ignition "OFF".
2. Connect the "A/T CONTROL RELAY" connector

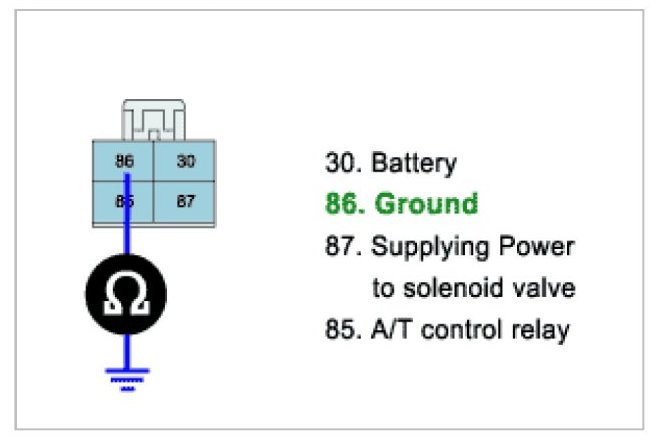

3. Measure the resistance between terminal "86" of the "A/T CONTROL RELAY" harness connector and chassis ground

Specification : Approx. 0 ohm






4. Is resistance within specifications?

YES
a. Go to "Component Inspection" procedure

NO
a. Check for open in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure

Component Inspection
1. Ignition "OFF".
2. Remove "A/T CONTROL RELAY"

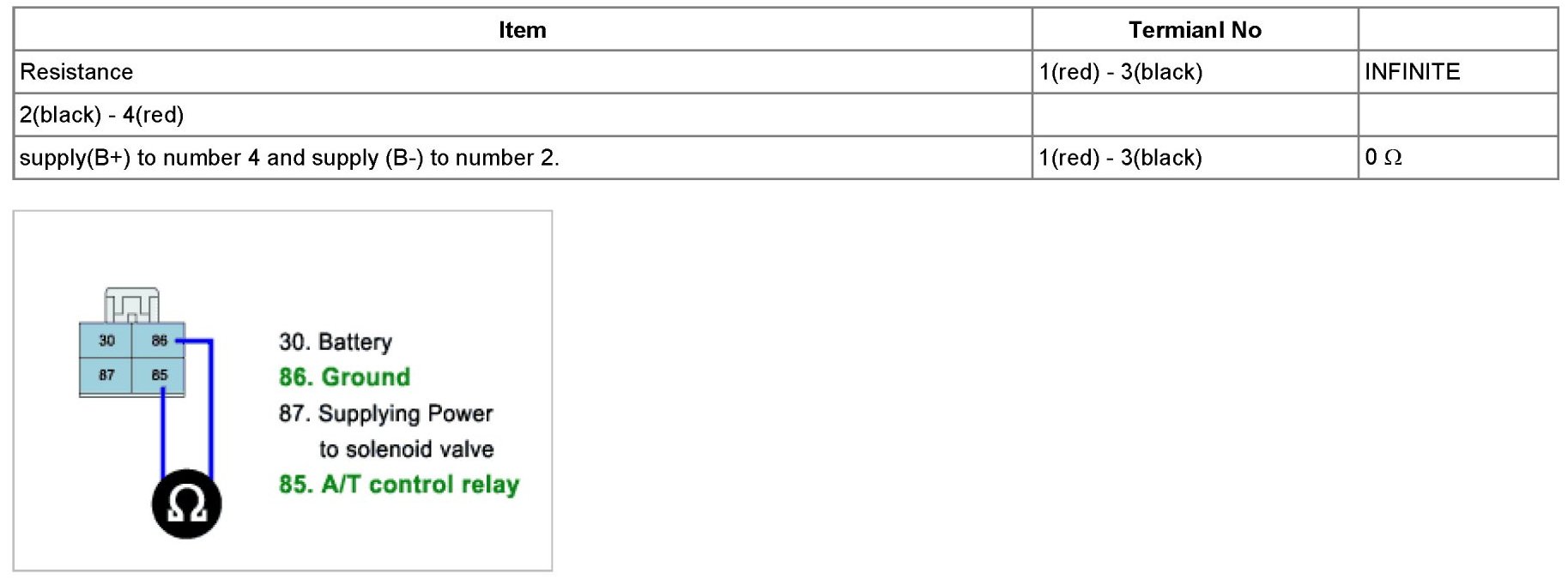

3. Measure the resistance between each terminal of the sensor

Specification:






4. Is resistance with in specifications?

YES
a. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

NO
a. Replace ATM CONTROL RELAY and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTCs)" mode.
2. Using a scantool, Clear DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTCs present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System performing to specification at this time.
