B1395

B1395

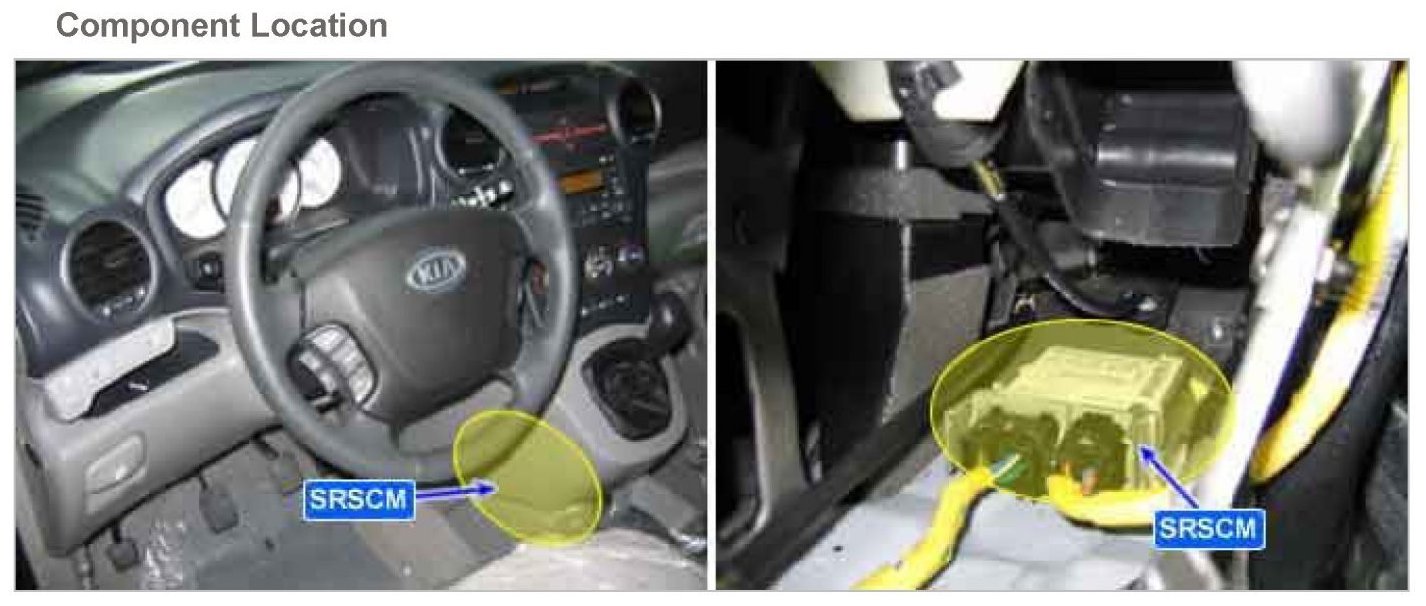

Component Location:

General Description
Every air bag module has its firing circuit to deploy air bag according to signal of SRSCM.
SRSCM checks every air bag module when ignition "ON". Once any fault is detected, it is erased only by scantool.

DTC Description
The SRSCM sets DTC B1395 if there's any short circuit in harness of every firing circuit to one another.

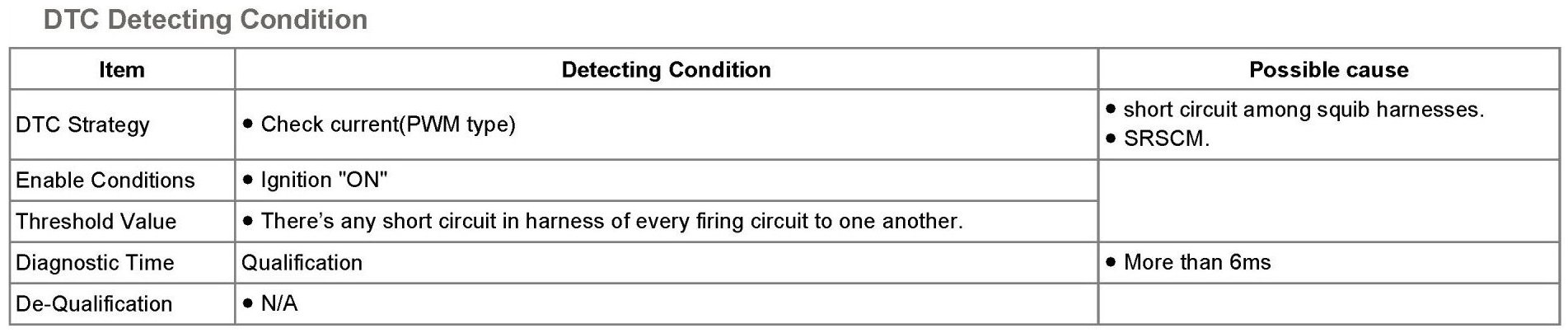

DTC Detecting Condition:

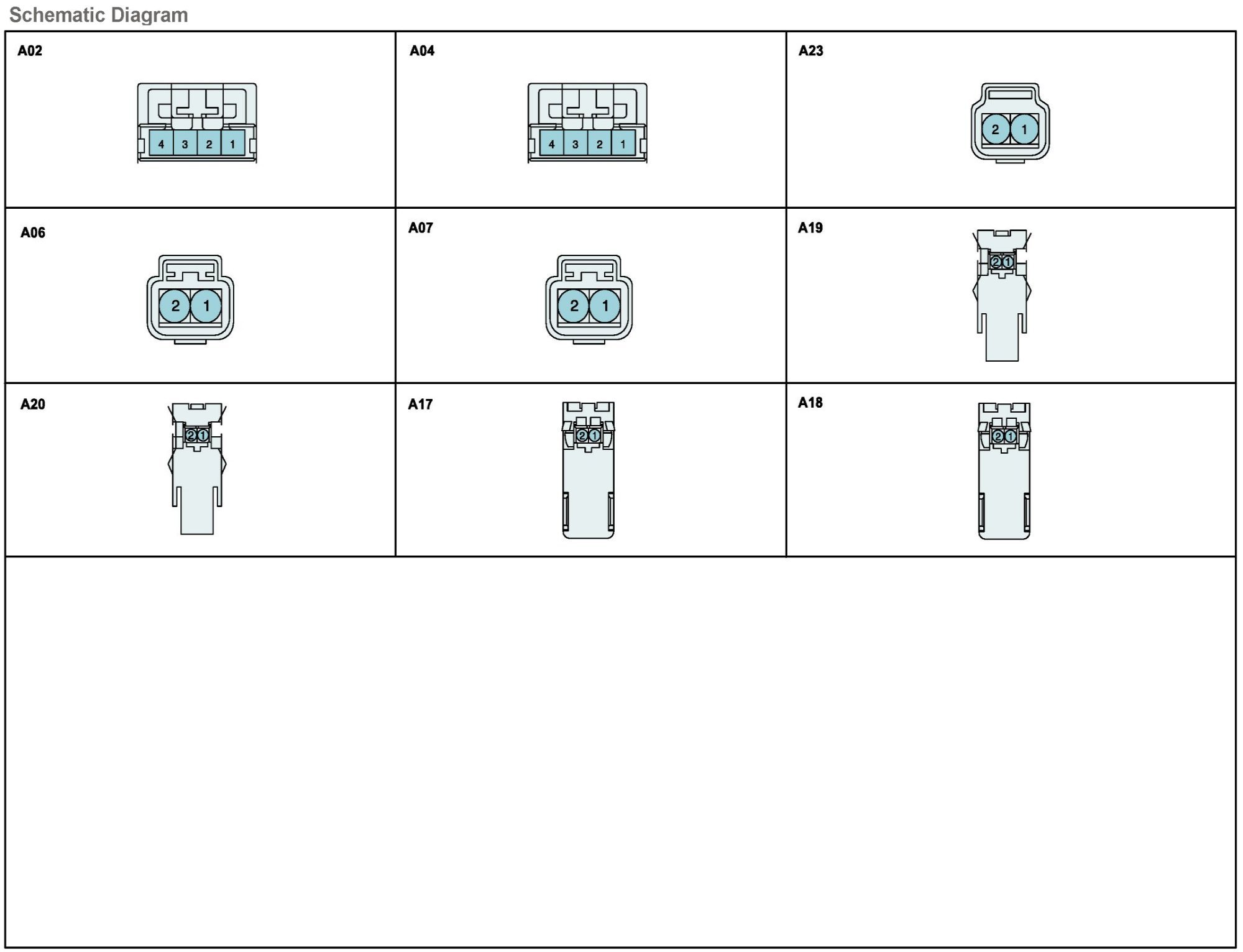

Schematic Diagram (Part 1):

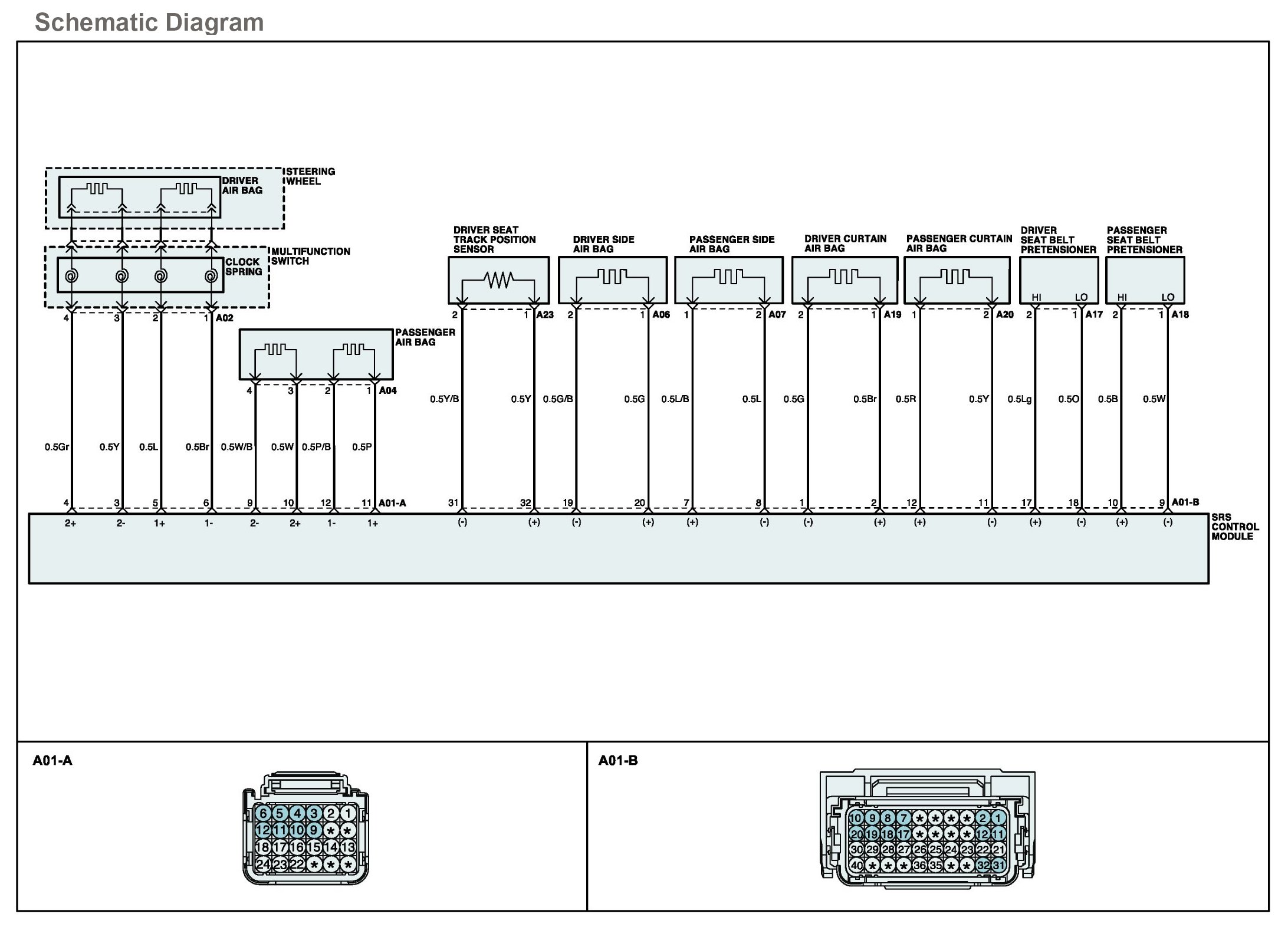

Schematic Diagram (Part 2):

Monitor Scantool Data
1. Ignition "OFF", connect scantool.

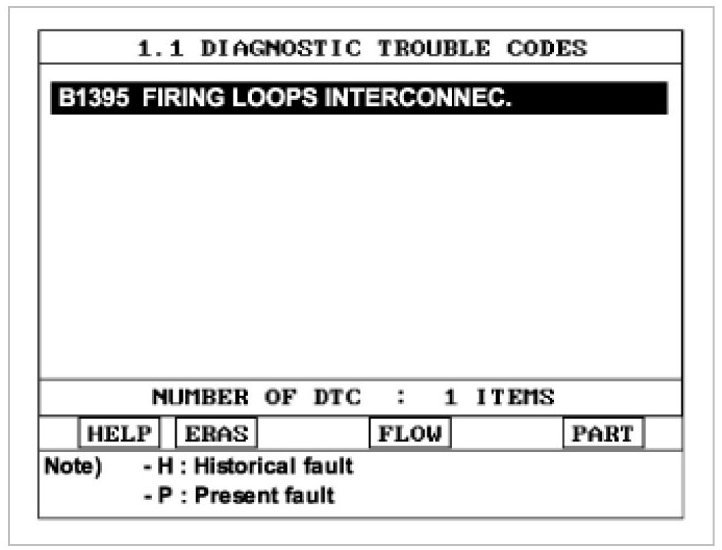

2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.






5. Is DTC present problem?

YES
a. Check for short between ignition circuits of DAB,PAB,BPT,CAB,SAB. If the condition of harness and component is OK, this fault is caused by SRSCM internal error so replace a known-good SRSCM and then go to "Verification of vehicle Repair" procedure.

NO
a. Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
b. Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.

Verification of Vehicle Repair
After a repair, it is essential to verify that the fault has been corrected.
1. Connect scan tool and select "Diagnostic Trouble Codes (DTC)" mode
2. Using a scan tool, clear the DTC.
3. Operate the vehicle within DTC Enable conditions in General information.
4. Are any DTC present?

YES
a. Go to the applicable troubleshooting procedure.

NO
a. System is performing to specification at this time.
