Heated Glass Element Relay: Testing and Inspection

INSPECTION

1. Disconnect the negative (-) battery terminal.

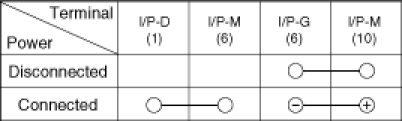

2. Remove the junction box.
3. Check for continuity between the terminals.
4. There should be continuity between the No.1 in the I/P-D and No.6 terminal in the I/P-M when power and ground are connected to the No.10 terminal in the I/P-M and No.6 terminal in the I/P-G.
5. There should be no continuity between the No.1 terminal in the I/P-D and No.6 terminal in the I/P-M when power is disconnected.
