Home >> Kia >> 2008 >> Rio L4-1.6L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

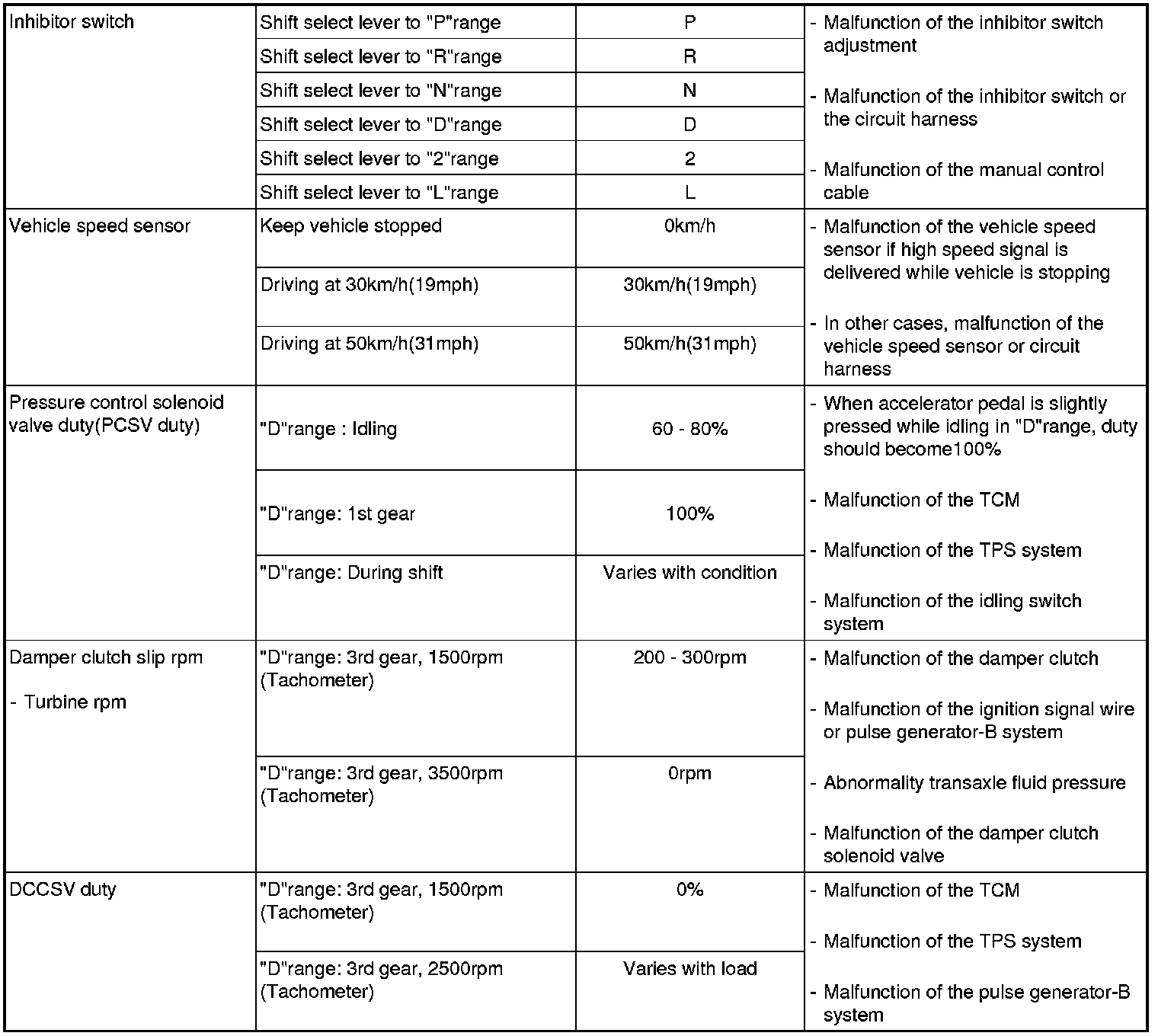

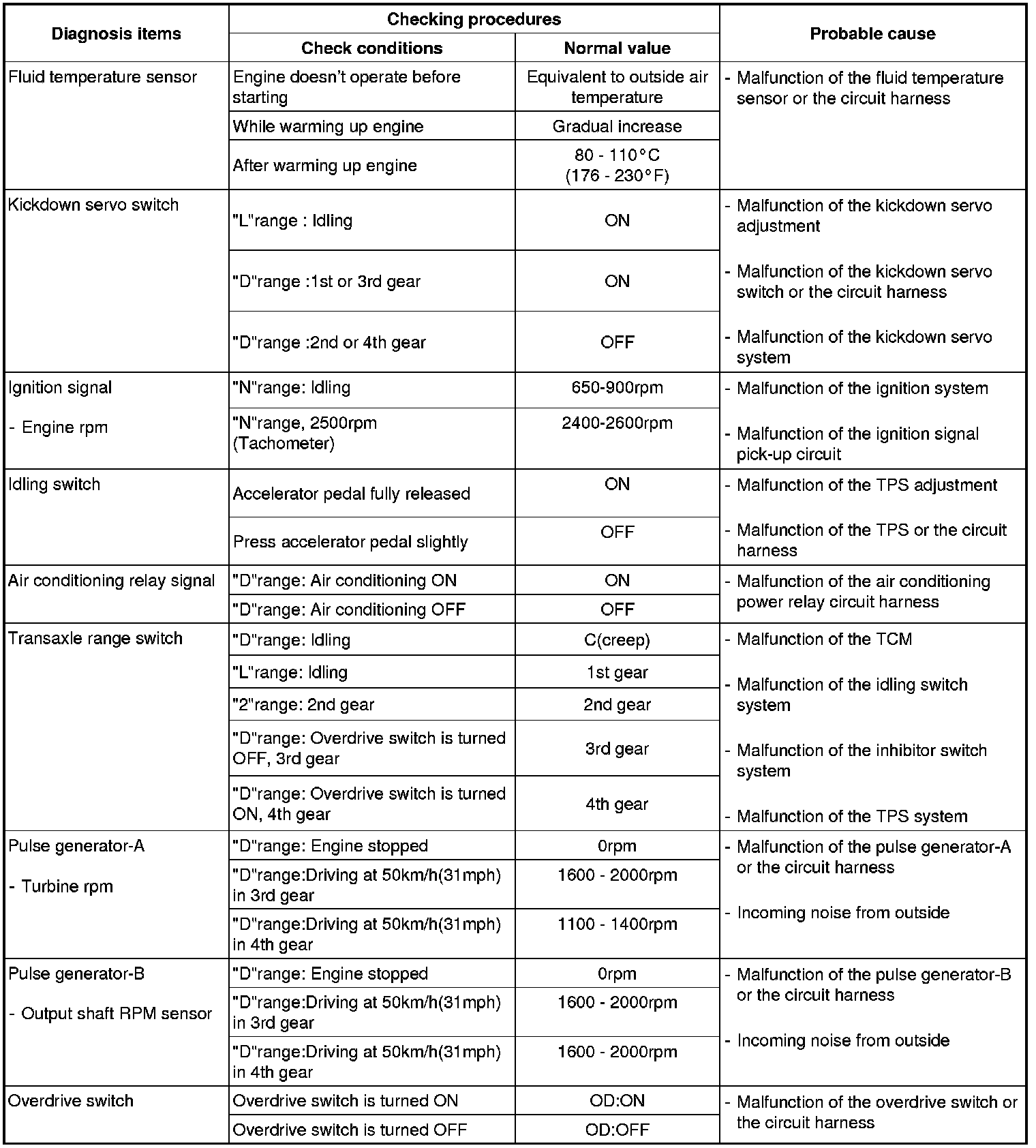

Check the control system (using the Hi-scan tool)
