Specifications (M5CF1)

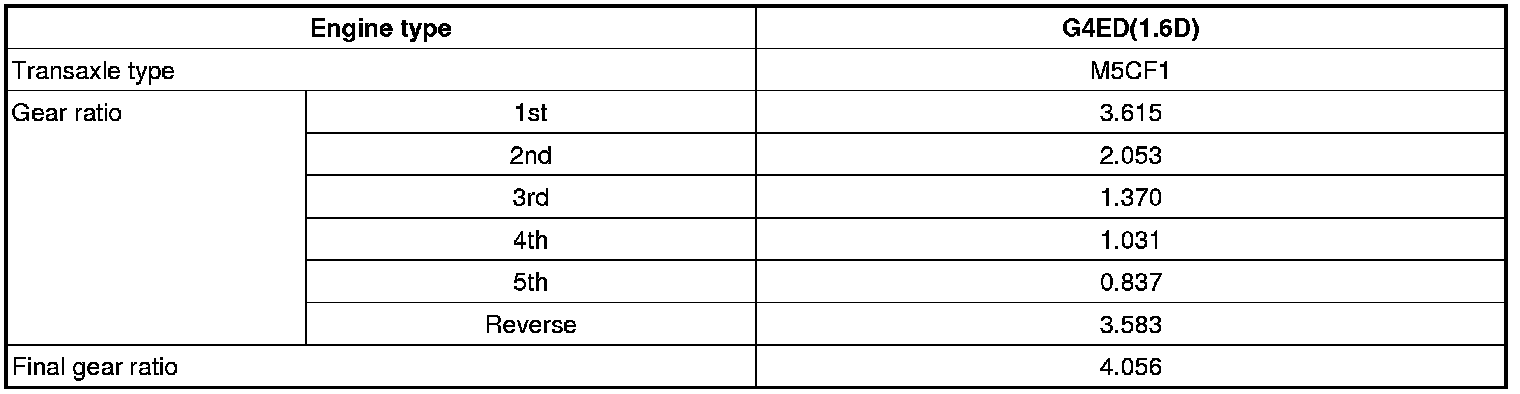

SPECIFICATIONS

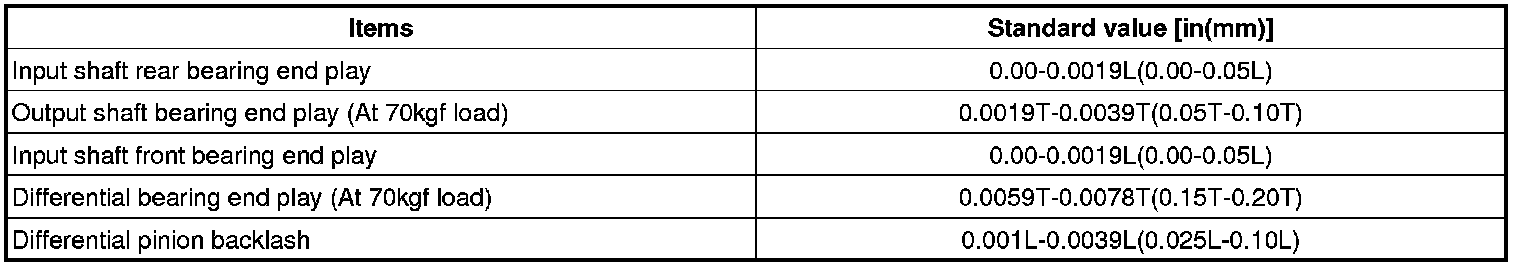

Service Standard





T: Indicate tightening of -(minus) direction of end play
L: Indicate loosening of +(plus) direction of end play

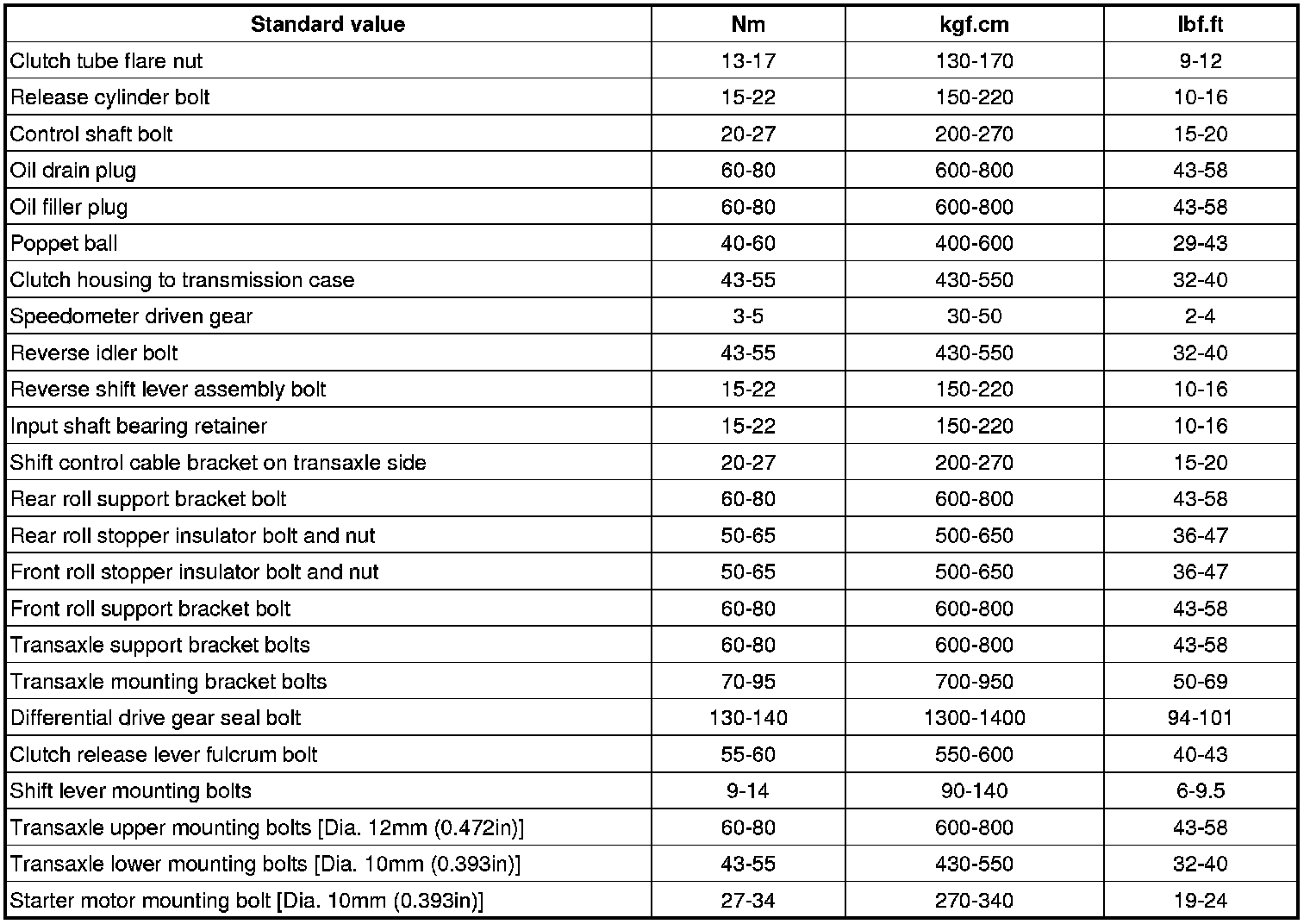

TIGHTENING TORQUE






WARNING:
Always follow torque tightening levels. Failure to follow such levels can result in parts breaking if over-tightened or loosening if under-tightened. In either case, serious personal injury or death could result to vehicle occupants.
