Connecting Rod

CONNECTING ROD

End play
Standard 0.1 - 0.25 mm (0.0039 - 0.0098 in)
Maximum 0.4 mm (0.0157 in)

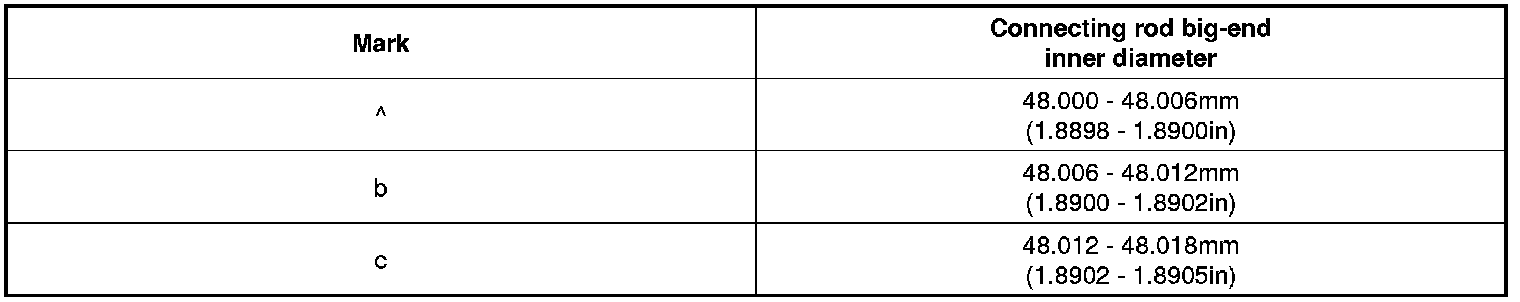

Identification of connecting rod






Piston pin-to-connecting rod interference -0.033 ~ -0.016 mm (-0.0013 ~ -0.0006 in)
