Repair Procedures

REMOVAL

1. Disconnect the battery negative cable and wait for at of least 3 minutes before beginning work.
2. Remove the following parts.
A. Interior trim
B. Headlining

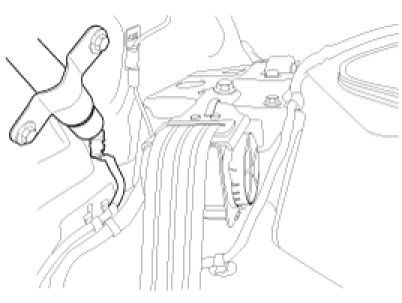

3. Disconnect the Curtain Airbag harness connector.

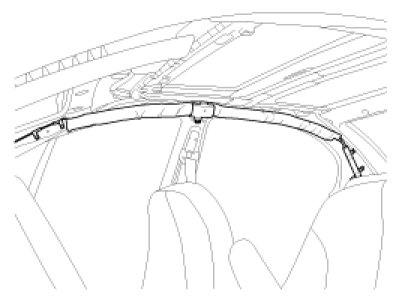

4. After loosening the mounting bolts, remove the curtain airbag.






INSTALLATION

CAUTION:
- Be sure to install the harness wires not to be pinched or interfered with other parts.

1. Disconnect the negative (-) cable from battery and wait for at least three minutes.
2. Remove the ignition key from the vehicle.
3. Install a Curtain Airbag (CAB) on the mounting bracket.

Tightening Torque (CAB Mounting Bolt)
: 0.5 - 0.7 kgf.m(4.9 - 6.9 Nm, 3.6 - 5.1 lb.ft)


CAUTION:
- Never twist the airbag module when installing it. If the module is twisted, airbag module may operate abnormally.

4. Install the inflator on the bracket.
5. Connect the CAB connector.
6. Reconnect the battery negative cable.
7. After installing the Curtain Airbag (CAB), confirm proper system operation:
A. Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
